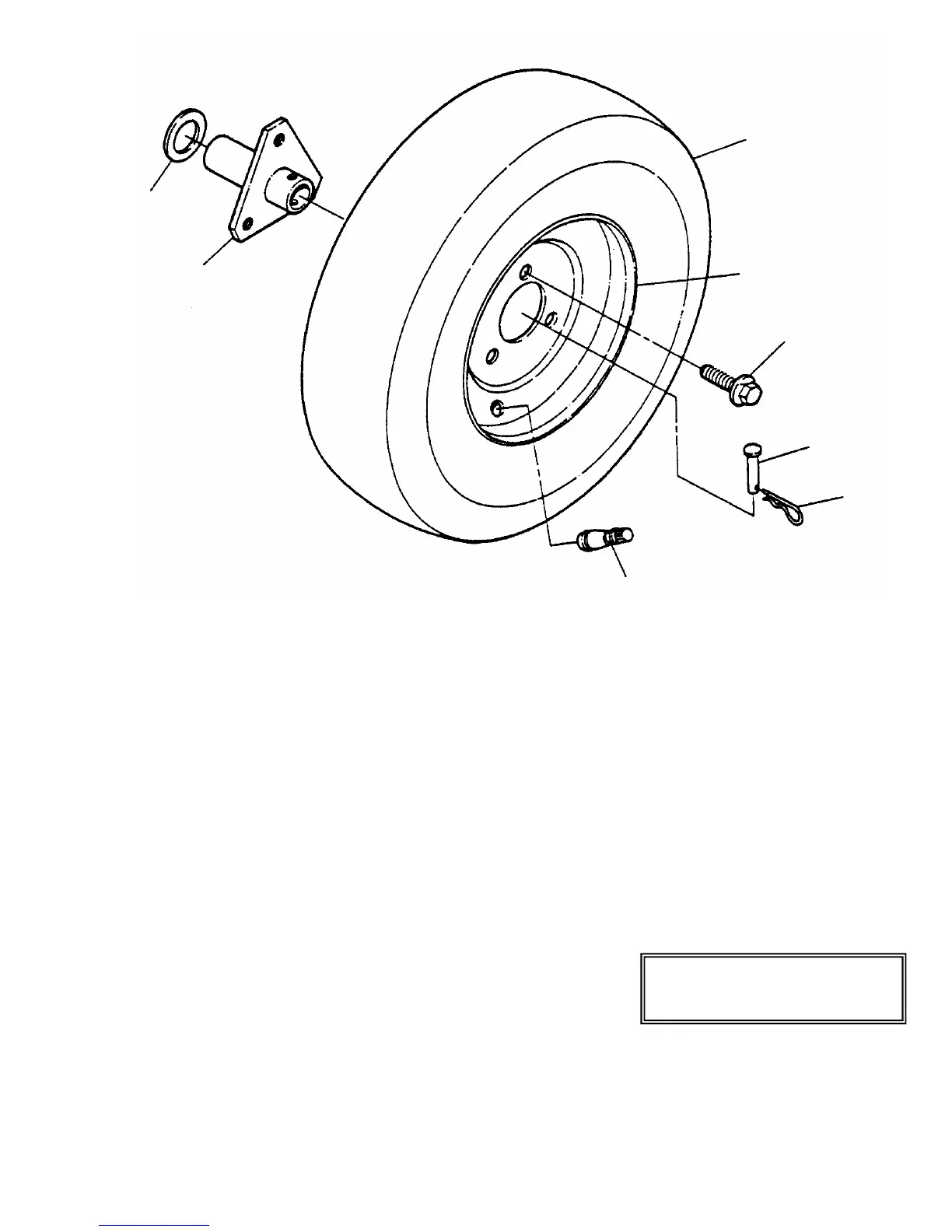

WHEELS, HUB

ITEM PART NO. DESCRIPTION

1 5-1803 ASSEMBLY, Wheel & Tire (Snow Hog) (8245, 8265, & 9265 Models)

(Includes Items 2A, 3A, & 4)

- 5-1871 ASSEMBLY, Wheel & Tire (Snow Hog) (10305E Models)

(Includes Items 2B, 3B, & 4)

- 5-8916* ASSEMBLY, Wheel & Tire (Kenda) (8245, 9265 & E9265 Models)

(Includes Items 2C, 3C & 4)

- 5-8918* ASSEMBLY, Wheel & Tire (Kenda) (11305 & E11305 Models)

(Includes Items 2D, 3B & 4)

2A 2-3495 TIRE, 16 x 4.80 x 8 (Snow Hog) (8245, 8265 & 9265 Models)

2B 2-3672 TIRE, 16 x 6.50 x 8 (Snow Hog) (10305E Models)

2C 7-3453 TIRE, 16 x 4.80 x 8 (Kenda) (8245, 9265 & E9265 Models)

2D 7-3455 TIRE, 16 x 6.50 x 8 (Kenda) (11305 & E11305 Models)

3A 1-2162 RIM, (8245, 8265 & 9265 Models)

3B 1-2163 RIM, (10305E, 11305 & E11305 Models)

3C 1-2162 RIM, (8245, 9265 & E9265 Models)

4 1-2234 VALVE, Snap-In

5 4-0464 HUB, Wheel (2)

6 1-0935 WASHER, 3/4 x 1-1/8" Thrust

7 9-1502 BOLT, 1/2-20 x 3/4" Hex Head Lug (Nyloc) Grade 5 (6)

8 1-2407 PIN, 5/16 x 1-11/16" Clevis (2)

9 1-5067 PIN, 3/32 x 1-1/2" Hair (2)

LARGE FRAME SNOWTHROWER MANUAL No. 06037

*NOTE: These wheel assemblies are

used on units built in 2000

for model year 2001)
