Snapper 10305E - Belts, Idler, Drive Plate, Sheave

8

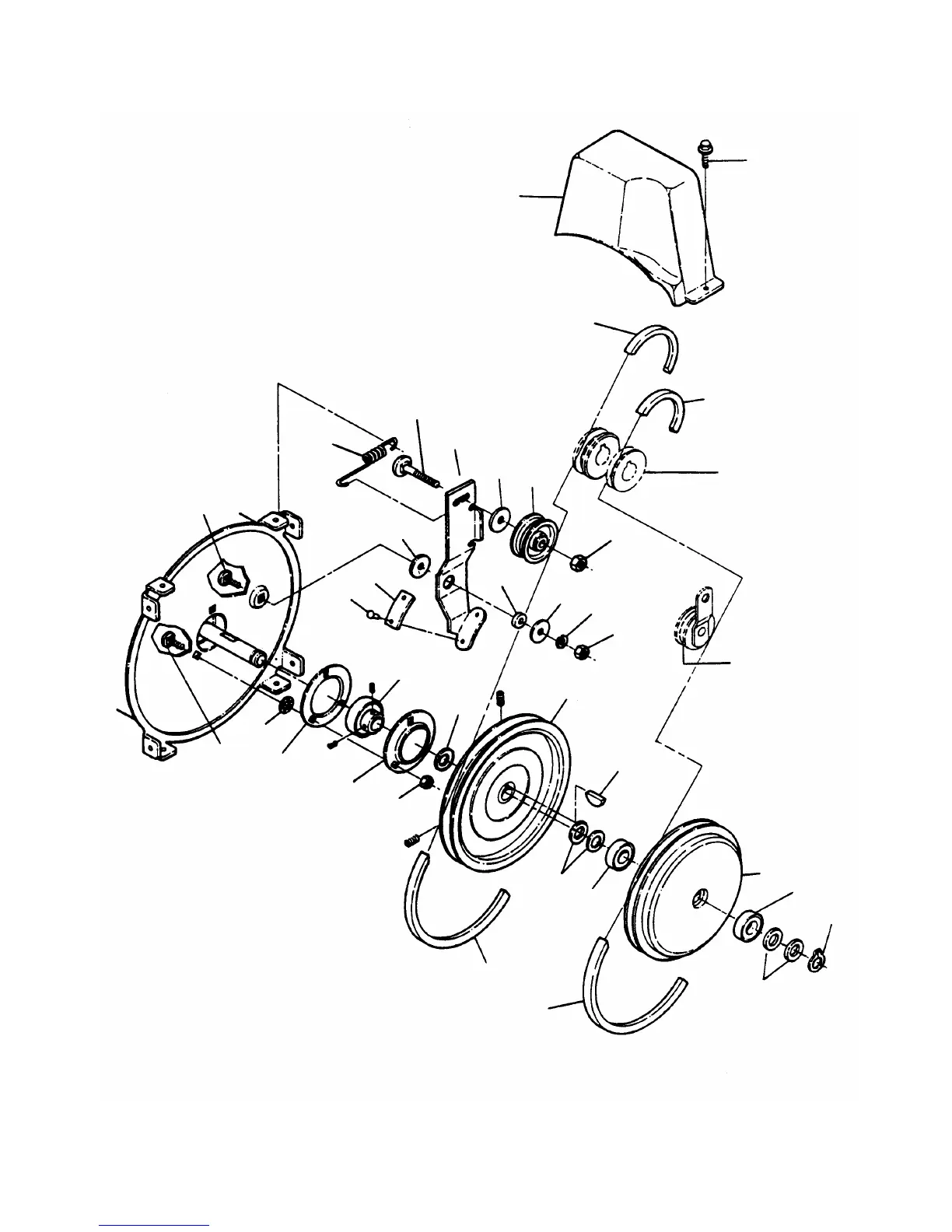

BELTS, IDLER, DRIVE PLATE, SHEAVE
MANUAL No. 06037 LARGE FRAME SNOW THROWER
1
2
3
4
5
6
7
8
9
10
10
11
12
13
13
14
15
16
17
18
18
19
20
21
22
22
23
23
24
24
25
26
27
28
29
ENGINE PULLEY
(See Page 20)
IDLER
(See Page 20)
