Snapper 14 Series Operator's Manual

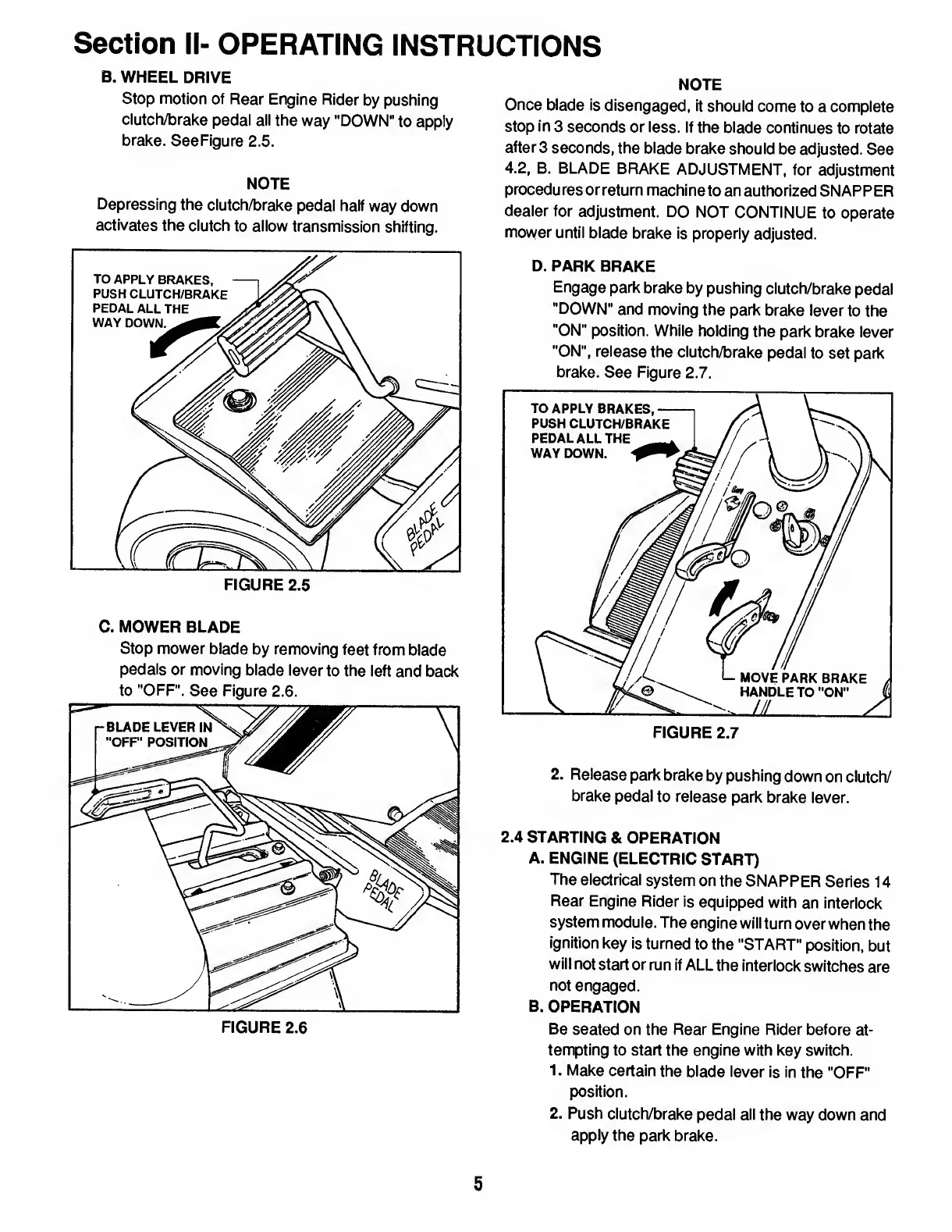

Section II- OPERATING INSTRUCTIONS
B. WHEEL DRIVE
Stop motion of Rear Engine Rider by pushing
ciutch/brake pedai all the way "DOWN" to apply
brake. SeeFigure 2.5.
NOTE
Depressing the clutch/brake pedal half way down
activates the clutch to allow transmission shifting.
FIGURE 2.5
C. MOWER BLADE
Stop mower blade by removing feet from blade
pedals or moving blade lever to the left and back
to "OFF". See Figure 2.6.
FIGURE 2.6
NOTE
Once blade is disengaged, it should come to a complete
stop in 3 seconds or less. If the blade continues to rotate
after 3 seconds, the blade brake should be adjusted. See
4.2, B. BLADE BRAKE ADJUSTMENT, for adjustment
procedures or return machine to an authorized SNAPPER
dealer for adjustment. DO NOT CONTINUE to operate
mower until blade brake is properly adjusted.
D. PARK BRAKE
Engage park brake by pushing clutch/brake pedal
"DOWN" and moving the park brake lever to the
"ON" position. While holding the park brake lever
"ON", release the clutch/brake pedal to set park
brake. See Figure 2.7.
2. Release park brake by pushing down on clutch/
brake pedal to release park brake lever.
2.4 STARTING & OPERATION
A. ENGINE (ELECTRIC START)
The electrical system on the SNAPPER Series 14
Rear Engine Rider is equipped with an interlock
system module. The engine will turn over when the
ignition key is turned to the "START" position, but
will not start or run if ALL the interlock switches are
not engaged.
B. OPERATION
Be seated on the Rear Engine Rider before at¬
tempting to start the engine with key switch.
1. Make certain the blade lever is in the "OFF"
position.
2. Push clutch/brake pedal all the way down and
apply the park brake.
5
