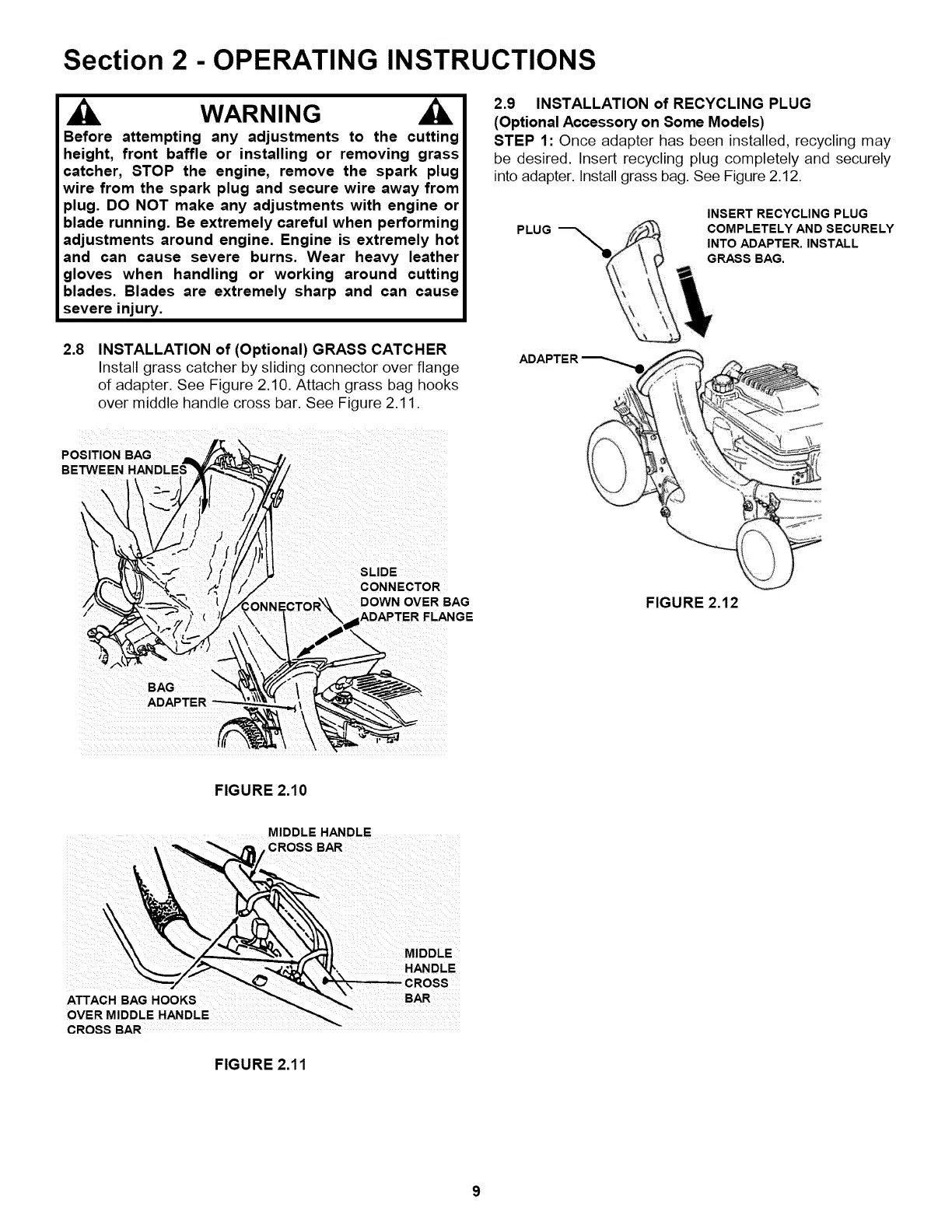

Section 2 - OPERATING INSTRUCTIONS
WARNING
Before attempting any adjustments to the cutting
height, front baffle or installing or removing grass
catcher, STOP the engine, remove the spark plug
wire from the spark plug and secure wire away from
plug. DO NOT make any adjustments with engine or
blade running. Be extremely careful when performing
adjustments around engine. Engine is extremely hot
and can cause severe burns. Wear heavy leather
gloves when handling or working around cutting
blades. Blades are extremely sharp and can cause
severe injury.
2.9 INSTALLATION of RECYCLING PLUG
(Optional Accessory on Some Models)
STEP 1: Once adapter has been installed, recycling may
be desired. Insert recycling plug completely and securely
into adapter. Install grass bag. See Figure 2.12.
PLUG
INSERT RECYCLING PLUG
COMPLETELY AND SECURELY
INTO ADAPTER. INSTALL
GRASS BAG.
2.8
INSTALLATION of (Optional) GRASS CATCHER
Install grass catcher by sliding connector over flange
of adapter. See Figure 2.10. Attach grass bag hooks
over middle handle cross bar. See Figure 2.11.
POSITION BAG
SLIDE
CONNECTOR
DOWN OVER BAG
ADAPTER FLANGE
FIGURE 2.12
BAG
FIGURE 2.10
MIDDLE HANDLE
CROSS BAR
MIDDLE
HANDLE
ATTACH BAG HOOKS BAR
OVER MIDDLE HANDLE
CROSS BAR
FIGURE 2.11
