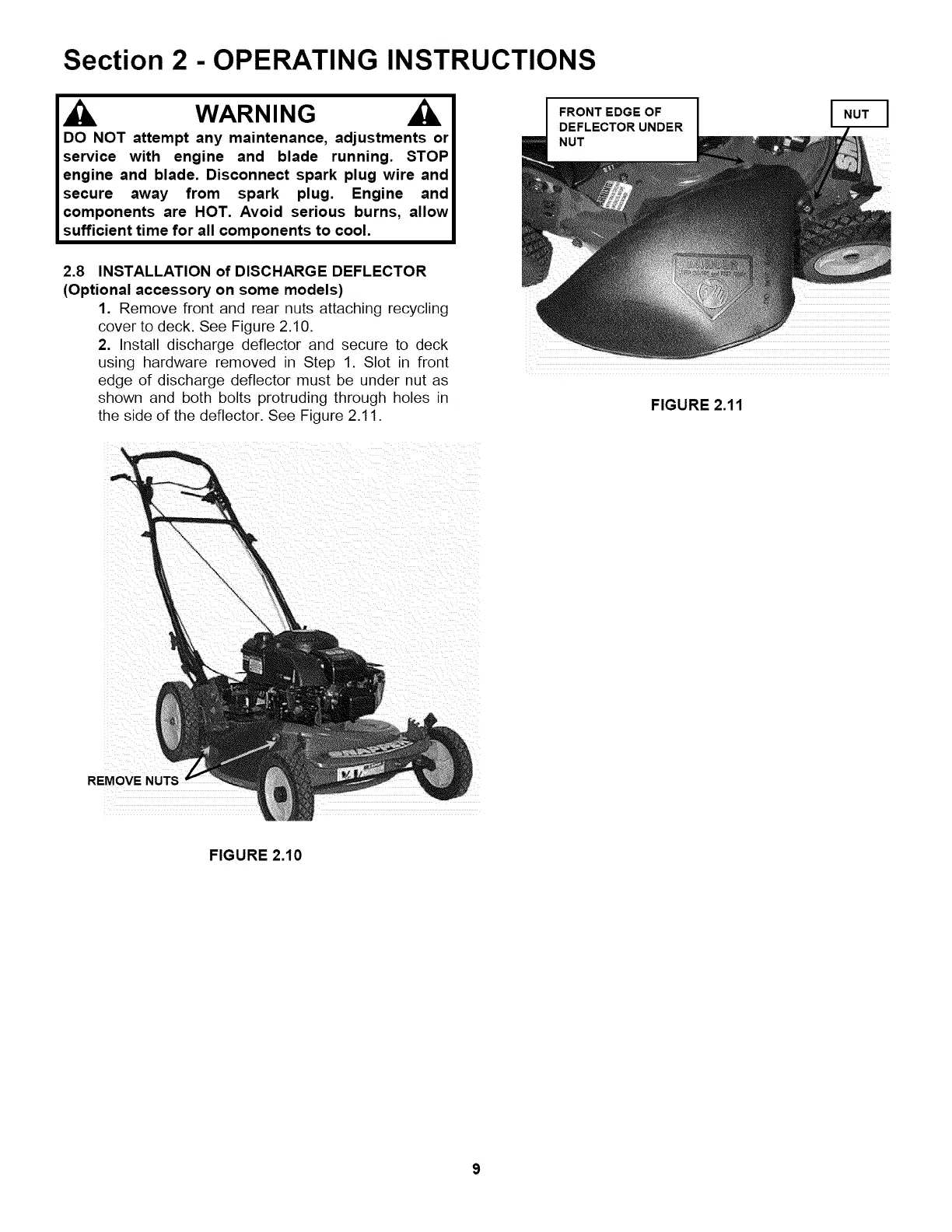

Section 2 - OPERATING INSTRUCTIONS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP
engine and blade. Disconnect spark plug wire and
secure away from spark plug. Engine and
components are HOT. Avoid serious burns, allow
sufficient time for all components to cool.
2.8 INSTALLATION of DISCHARGE DEFLECTOR
(Optional accessory on some models)
1. Remove front and rear nuts attaching recycling
cover to deck. See Figure 2.10.
2. Install discharge deflector and secure to deck
using hardware removed in Step 1. Slot in front
edge of discharge deflector must be under nut as
shown and both bolts protruding through holes in
the side of the deflector. See Figure 2.11.
FRONTEDGE OF
DEFLECTOR UNDER
NUT
FIGURE 2.11
FIGURE 2.10
