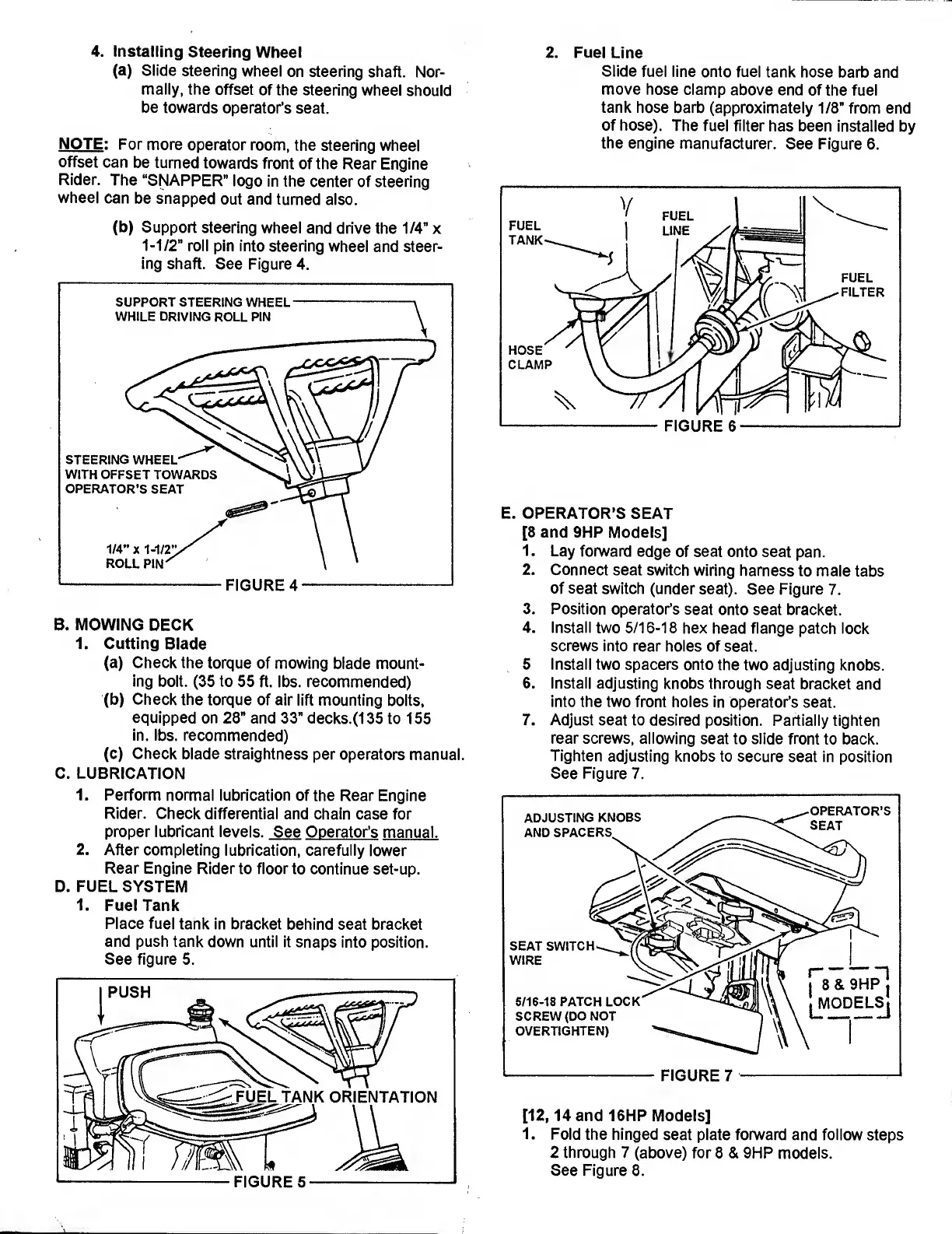

4.
Installing
Steering
Wheel
(a)
S
lide
steering
wheel
on
steering
shaft.
Nor¬
mally,
the
offset
of
the
steering
wheel
should
be
towards
operator’s
seat.
NOTE
:
For
more
operator
room,
the
steering
wheel
offset
can
be
turned
towards
front
of
the
Rear
Engine
Rider.
The
“SNAPPER”
logo
in
the
center
of
steering
wheel
can
be
snapped
out
and
turned
also.
(b)
S
upport
steering
wheel
and
drive
the
1/4”
x
1-1/2”
roll
pin
into
steering
wheel
and
steer¬
ing
shaft.
See
Figure
4.
B.
MOWING
DECK
1.
C
utting
Blade
(a)
Check
the
torque
of
mowing
blade
mount¬
ing
bolt.
(35
to
55
ft.
lbs.
recommended)
(b)
Check
the
torque
of
air
lift
mounting
bolts,
equipped
on
28"
and
33"
decks.(135
to
155
in.
lbs.
recommended)
(c)
Check
blade
straightness
per
operators
manual.
C.
LUBRICATION
1.
Perform
normal
lubrication
of
the
Rear
Engine
Rider.
Check
differential
and
chain
case
for
proper
lubricant
levels.
See
Operator's
manual.
2.
After
completing
lubrication,
carefully
lower
Rear
Engine
Rider
to
floor
to
continue
set-up.
D.
FUEL
SYSTEM
1.
Fuel
Tank
Place
fuel
tank
in
bracket
behind
seat
bracket
and
push
tank
down
until
it
snaps
into
position.
See
figure
5.
2.
Fuel
Line
Slide
fuel
line
onto
fuel
tank
hose
barb
and
move
hose
clamp
above
end
of
the
fuel
tank
hose
barb
(approximately
1/8"
from
end
of
hose).
The
fuel
filter
has
been
installed
by
the
engine
manufacturer.
See
Figure
6.
E.
O
PERATOR’S
SEAT
[8
and
9HP
Models]
1.
Lay
forward
edge
of
seat
onto
seat
pan.
2.
Connect
seat
switch
wiring
harness
to
male
tabs
of
seat
switch
(under
seat).
See
Figure
7.
3.
Position
operator’s
seat
onto
seat
bracket.
4.
Install
two
5/16-18
hex
head
flange
patch
lock
screws
into
rear
holes
of
seat.
5
Install
two
spacers
onto
the
two
adjusting
knobs.
6.
Install
adjusting
knobs
through
seat
bracket
and
into
the
two
front
holes
in
operator’s
seat.
7.
Adjust
seat
to
desired
position.
Partially
tighten
rear
screws,
allowing
seat
to
slide
front
to
back.
Tighten
adjusting
knobs
to
secure
seat
in
position
See
Figure
7.
[12,14
and
16HP
Models]
1.
Fold
the
hinged
seat
plate
forward
and
follow
steps
2
through
7
(above)
for
8
&
9HP
models.
See
Figure
8.
