INTRODUCTION
OPERATING/SERVICE FEATURES
This manual covers SNAPPER Series 13 (last two
numbers in the model designation) Automatic Blade
Stop and smooth Start Clutch equipped rear engine
riding mowers.
Always stop the blade, shift into neutral and set the
parking brake when it becomes necessary to leave
your rider momentarily while the engine is running!

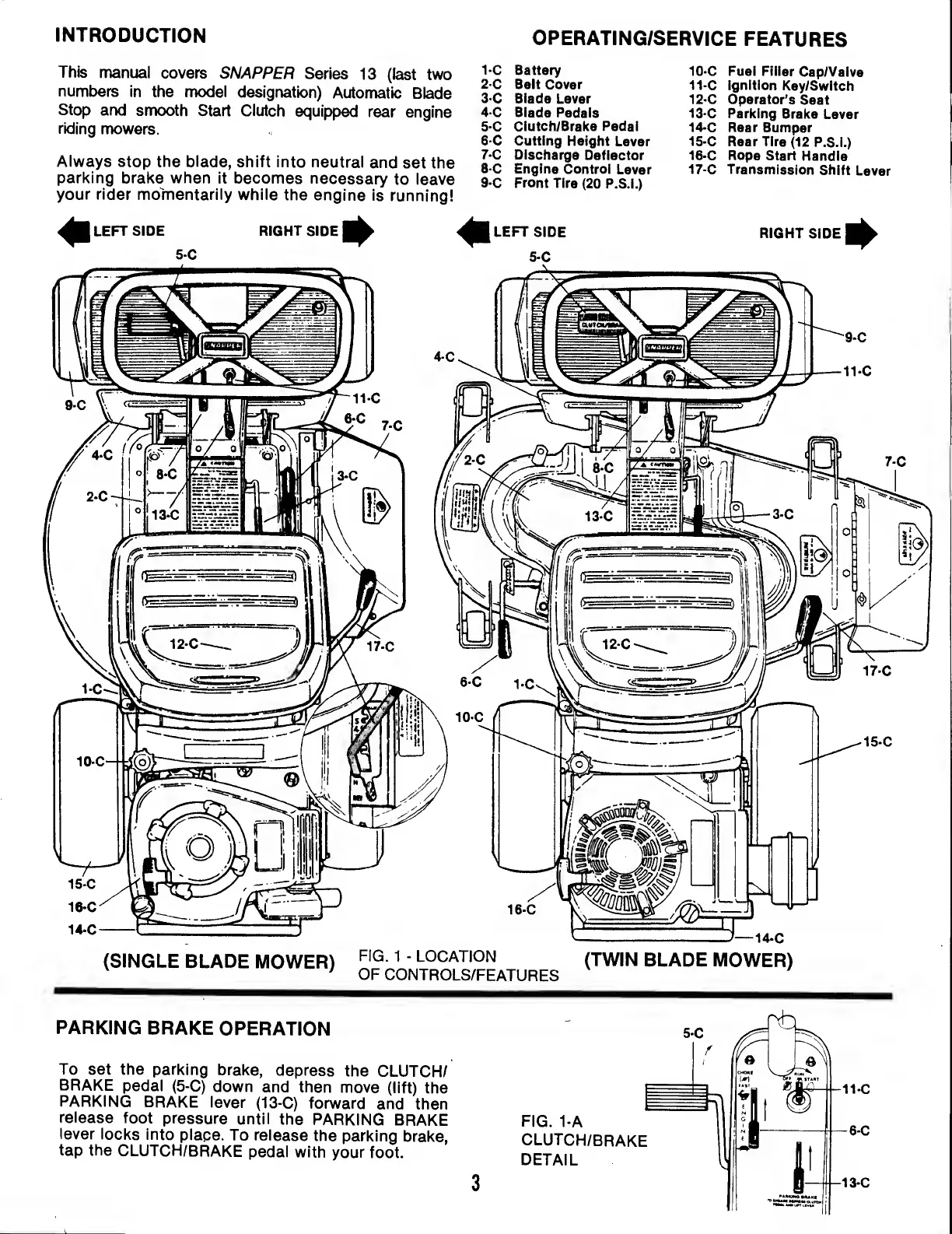

1- C Battery 10-C Fuel Filler Cap/Valve
2- C Belt Cover 11-C Ignition Key/Switch
3- C Blade Lever 12-C Operator’s Seat
4- C Blade Pedals 13-C Parking Brake Lever
5- C Clutch/Brake Pedal 14-C Rear Bumper
6- C Cutting Height Lever 15-C Rear Tire (12 P.S.i.)
7- C Discharge Deflector 16-C Rope Start Handle
8- C Engine Control Lever 17-C Transmission Shift Lever
9- C Front Tire (20 P.S.I.)
LEFT SIDE RIGHT SIDE
5-C
I LEFT SIDE
5-C
RIGHT SIDE
PARKING BRAKE OPERATION
To set the parking brake, depress the CLUTCH/
BRAKE pedal (5-C) down and then move (lift) the
PARKING BRAKE lever (13-C) forward and then
release foot pressure until the PARKING BRAKE
lever locks into place. To release the parking brake,
tap the CLUTCH/BRAKE pedal with your foot.

Snapper 331313BE Specifications

General

Brand	Snapper
Model	331313BE
Category	Lawn Mower
Language	English
