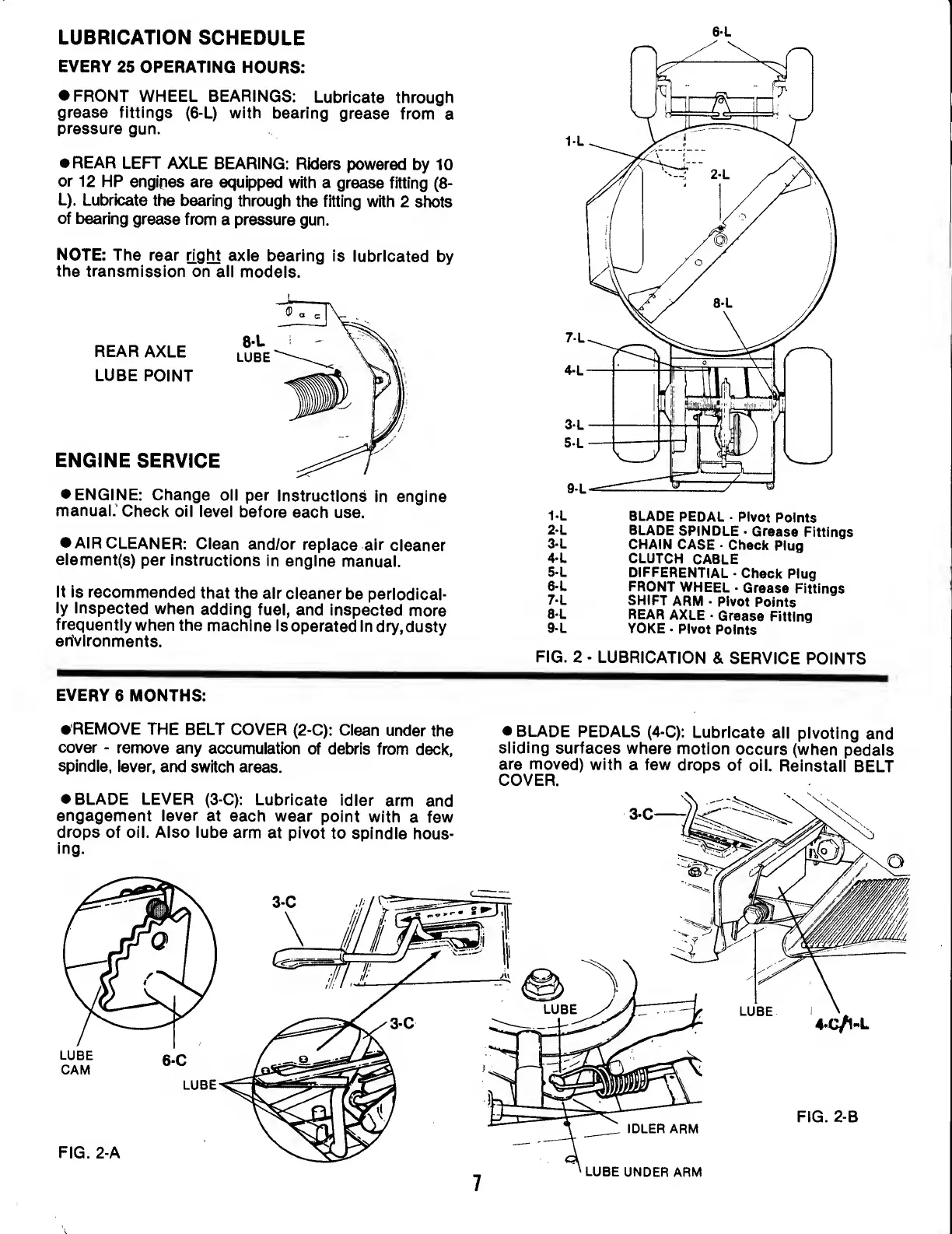

LUBRICATION SCHEDULE
EVERY 25 OPERATING HOURS:
• FRONT WHEEL BEARINGS: Lubricate through
grease fittings (6-L) with bearing grease from a
pressure gun.
• REAR LEFT AXLE BEARING: Riders powered by 10
or 12 HP engines are equipped with a grease fitting (8-
L). Lubricate the bearing through the fitting with 2 shots
of bearing grease from a pressure gun.
NOTE: The rear right axle bearing is iubricated by
the transmission on ail models.
REAR AXLE
LUBE POINT
ENGINE SERVICE
• ENGINE: Change oil per instructions in engine
manuai.'Check oii levei before each use.
• AIR CLEANER: Clean and/or replace air cieaner
eiement(s) per instructions in engine manuai.
it is recommended that the air cieaner be periodicai-
ly inspected when adding fuel, and inspected more
frequently when the machine is operated in dry, dusty
erfvironments.
6-L
1- L BLADE PEDAL • Pivot Points
2- L BLADE SPiNDLE • Grease Fittings
3- L CHAiN CASE - Check Piug
4- L CLUTCH CABLE
5- L DiFFERENTiAL • Check Piug
6- L FRONT WHEEL - Grease Fittings
7- L SHiFT ARM - Pivot Points
8'L REAR AXLE - Grease Fitting
9-L YOKE - Pivot Points
FiG. 2 • LUBRICATION & SERVICE POINTS
EVERY 6 MONTHS:
•REMOVE THE BELT COVER (2-C): Clean under the
cover - remove any accumulation of debris from deck,
spindle, lever, and switch areas.
• BLADE PEDALS (4-C): Lubricate ail pivoting and
sliding surfaces where motion occurs (when pedais
are moved) with a few drops of oii. Reinstail BELT
COVER.
7
LUBE UNDER ARM
