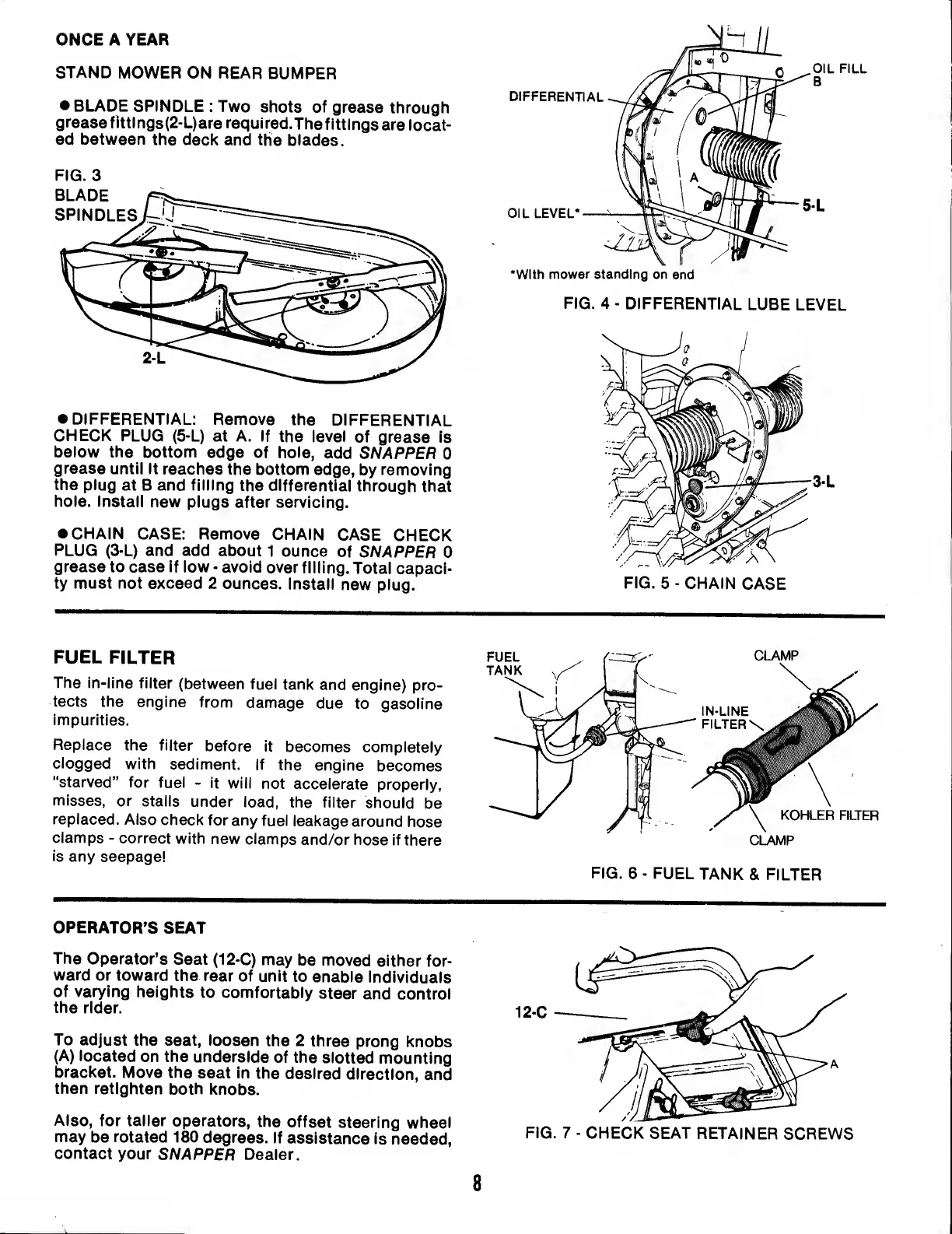

ONCE A YEAR
STAND MOWER ON REAR BUMPER
• BLADE SPINDLE : Two shots of grease through
greasefjttings(2-L)are required.The fittings are locat¬
ed between the deck and the blades.
FIG. 3
• DIFFERENTIAL Remove the DIFFERENTIAL
CHECK PLUG (5-L) at A. If the level of grease is
below the bottom edge of hole, add SNAPPER 0
grease until it reaches the bottom edge, by removing
the piug at B and filiing the differentiai through that
hoie. Instali new plugs after servicing.
• CHAIN CASE: Remove CHAIN CASE CHECK
PLUG (3-L) and add about 1 ounce of SNAPPER 0
grease to case if low • avoid over filling. Total capaci¬
ty must not exceed 2 ounces. Install new plug.
FIG. 4 - DIFFERENTIAL LUBE LEVEL
3-L
FUEL FILTER
The in-line filter (between fuel tank and engine) pro¬
tects the engine from damage due to gasoline
impurities.
Replace the filter before it becomes completely
clogged with sediment. If the engine becomes
“starved” for fuel - it will not accelerate properly,
misses, or stalls under load, the filter should be
replaced. Also check for any fuel leakage around hose
clamps - correct with new clamps and/or hose if there
is any seepage!
FIG. 6 - FUEL TANK & FILTER
OPERATOR’S SEAT
The Operator’s Seat (12-C) may be moved either for¬
ward or toward the rear of unit to enable individuals
of varying heights to comfortably steer and control
the rider.
To adjust the seat, loosen the 2 three prong knobs
(A) located on the underside of the slotted mounting
bracket. Move the seat in the desired direction, and
then retighten both knobs.
Also, for taller operators, the offset steering wheel
may be rotated 180 degrees. If assistance is needed,
contact your SNAPPER Dealer.
8
