Snapper 421622BVE User Manual

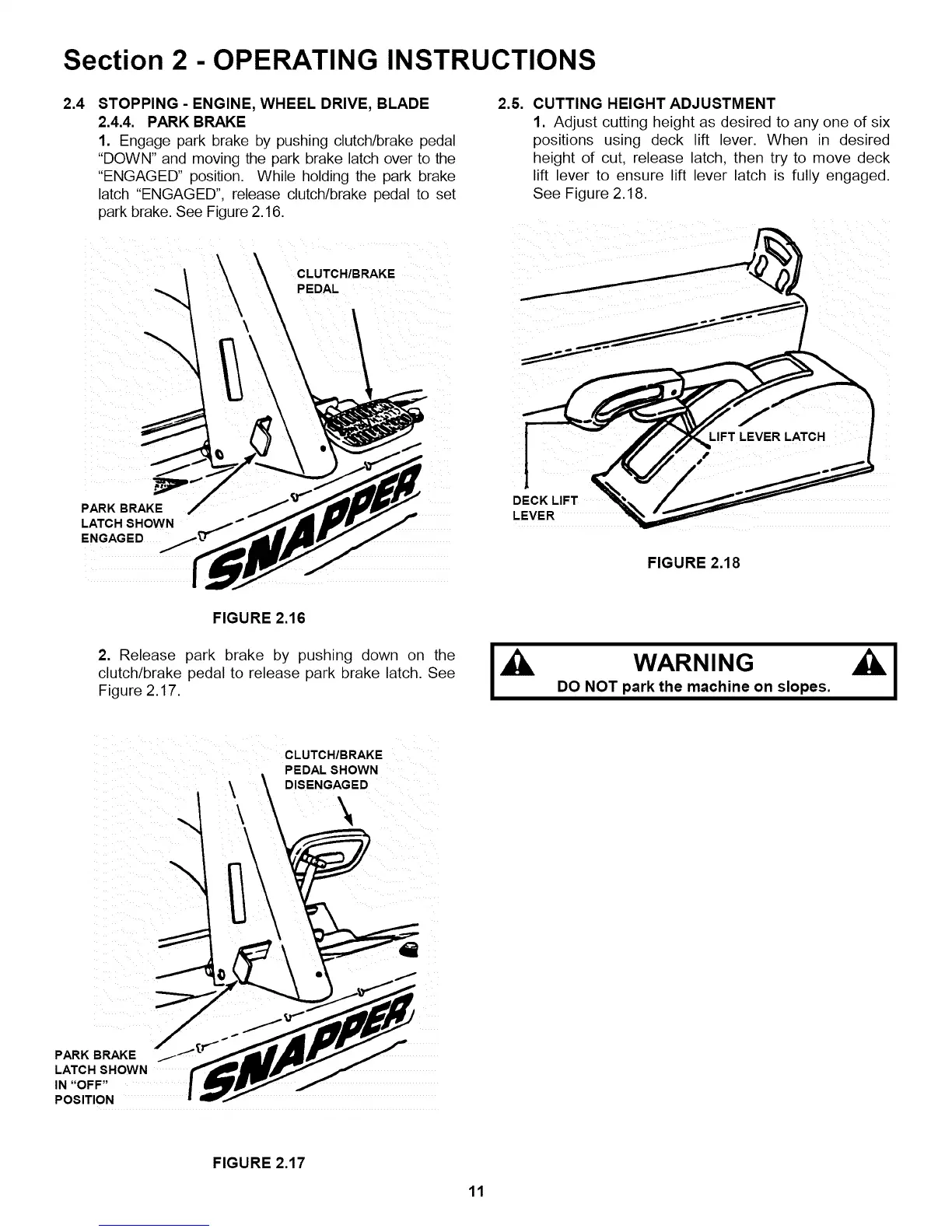

Section 2 - OPERATING INSTRUCTIONS
2.4
STOPPING - ENGINE, WHEEL DRIVE, BLADE
2.4.4. PARK BRAKE
1. Engage park brake by pushing clutch/brake pedal
"DOWN" and moving the park brake latch over to the
"ENGAGED" position. While holding the park brake
latch "ENGAGED", release clutch/brake pedal to set
park brake. See Figure 2.16.
\
CLUTCH/BRAKE
PEDAL
PARK BRAKE
LATCH SHOWN
ENGAGED
2.5. CUTTING HEIGHT ADJUSTMENT
1. Adjust cutting height as desired to any one of six
positions using deck lift lever. When in desired
height of cut, release latch, then try to move deck
lift lever to ensure lift lever latch is fully engaged.
See Figure 2.18.
DECK LIFT
LEVER
FIGURE 2.18
FIGURE 2.16
2. Release park brake by pushing down on the
clutch/brake pedal to release park brake latch. See
Figure 2.17.
WARNING I
DO NOT park the machine on slopes.
CLUTCH/BRAKE
PEDAL SHOWN
\ DISENGAGED
\ \
PARK BRAKE
LATCH SHOWN
IN "OFF"
POSITION
FIGURE 2.17
