Section 1 - FAMILIARIZATION
FUEL TANK
FUEL FILLER CAP
AND VENT
ENGINE SPEED AND CHOKE
LOCATED LEFT OF SEAT
OVERRIDE
LEVER
TRANSMISSION
SHIFT LEVER
DISCHARGE
DEFLECTOR
BLADE '_
LEVER
DECK LIFT
CLUTCH/BRAKE
PEDAL
PARK BRAKE
LATCH
BLADE
PEDALS
FIGURE
1.1 INTRODUCTION
This manual has been prepared for the operator's of the
SNAPPER Rear Engine Rider. Its purpose, aside from
recommending standard operating procedures and
routine service requirements, is to promote SAFETY
through the use of accepted operating practices. Read,
Understand and Follow the IMPORTANT SAFETY
INSTRUCTIONS on Pages 2 & 3 of this manual and All
SAFETY messages on the Rear Engine Rider and its
attachments before operating.
1.1
1.2 NOMENCLATURE

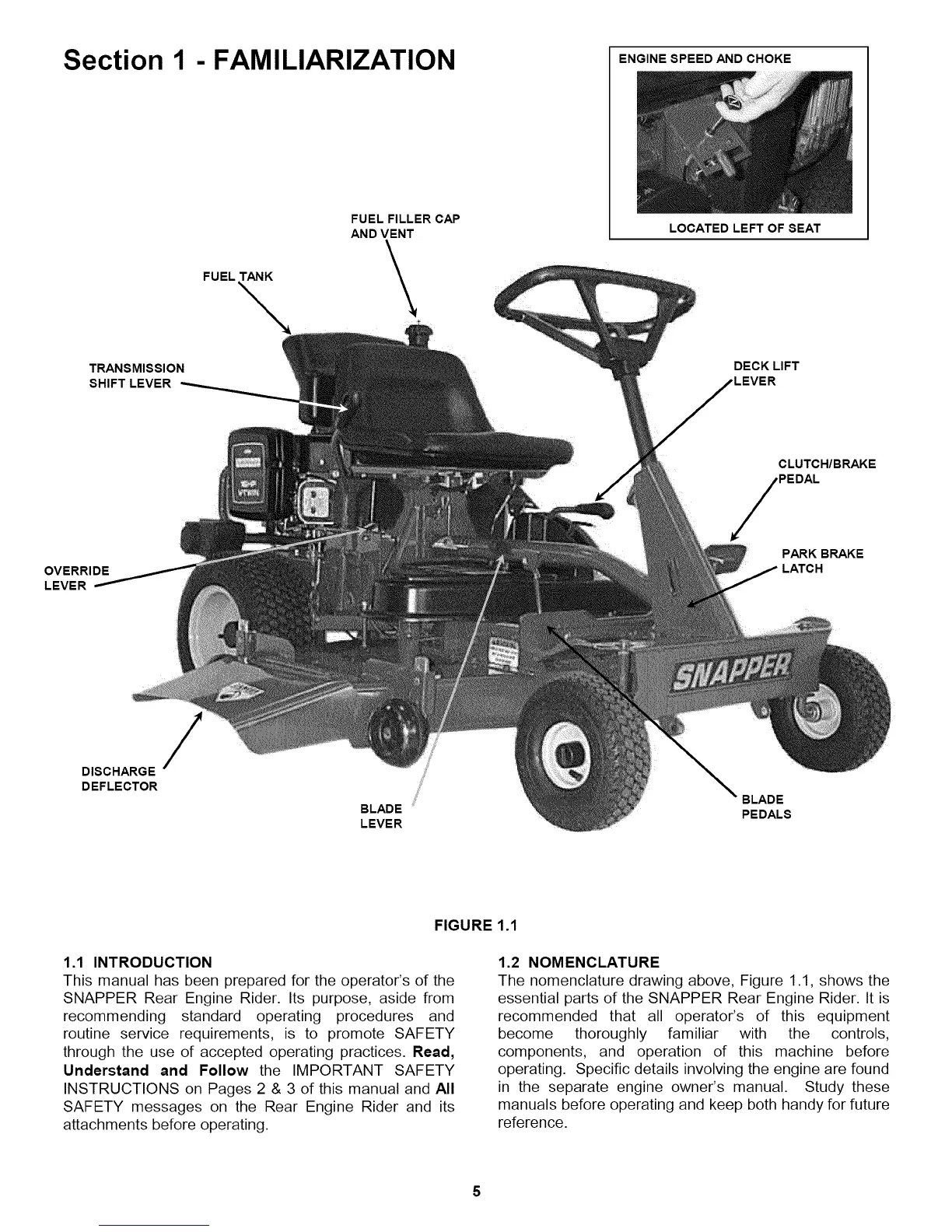

The nomenclature drawing above, Figure 1.1, shows the
essential parts of the SNAPPER Rear Engine Rider. It is
recommended that all operator's of this equipment
become thoroughly familiar with the controls,
components, and operation of this machine before
operating. Specific details involving the engine are found
in the separate engine owner's manual. Study these
manuals before operating and keep both handy for future
reference.
