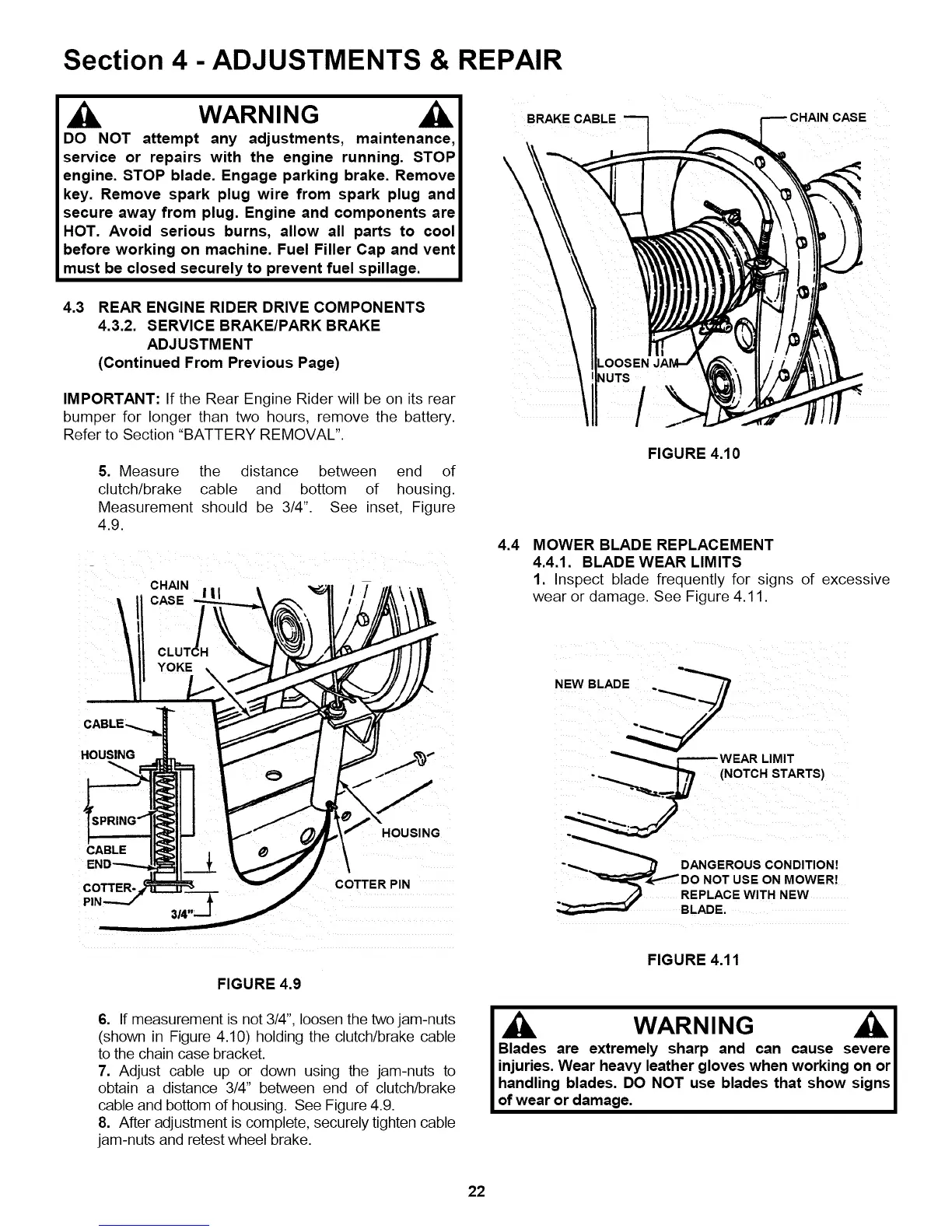

Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.
4.3 REAR ENGINE RIDER DRIVE COMPONENTS
4.3.2. SERVICE BRAKE/PARK BRAKE
ADJUSTMENT
(Continued From Previous Page)
IMPORTANT: If the Rear Engine Rider will be on its rear
bumper for longer than two hours, remove the battery.
Refer to Section "BATTERY REMOVAL".
5. Measure the distance between end of
clutch/brake cable and bottom of housing.
Measurement should be 3/4". See inset, Figure
4.9.
CHAIN
III
HOUSING
CABLE
HOUSING
COTTER-
PIN
COTTER PIN
FIGURE 4.9
6. If measurement is not 3/4", loosen the two jam-nuts
(shown in Figure 4.10) holding the clutch/brake cable
to the chain case bracket.
7. Adjust cable up or down using the jam-nuts to
obtain a distance 3/4" between end of clutch/brake
cable and bottom of housing. See Figure 4.9.
8. After adjustment is complete, securely tighten cable
jam-nuts and retest wheel brake.
BRAKE CABLE CASE
FIGURE 4.10
4.4 MOWER BLADE REPLACEMENT
4.4.1. BLADE WEAR LIMITS
1. nspect blade frequently for signs of excessive
wear or damage. See Figure 4.11.
FIGURE 4.11
WARNING
Blades are extremely sharp and can cause severe I
injuries. Wear heavy leather gloves when working on or I
handling blades. DO NOT use blades that show signs I
of wear or damage. I
22
