Operation

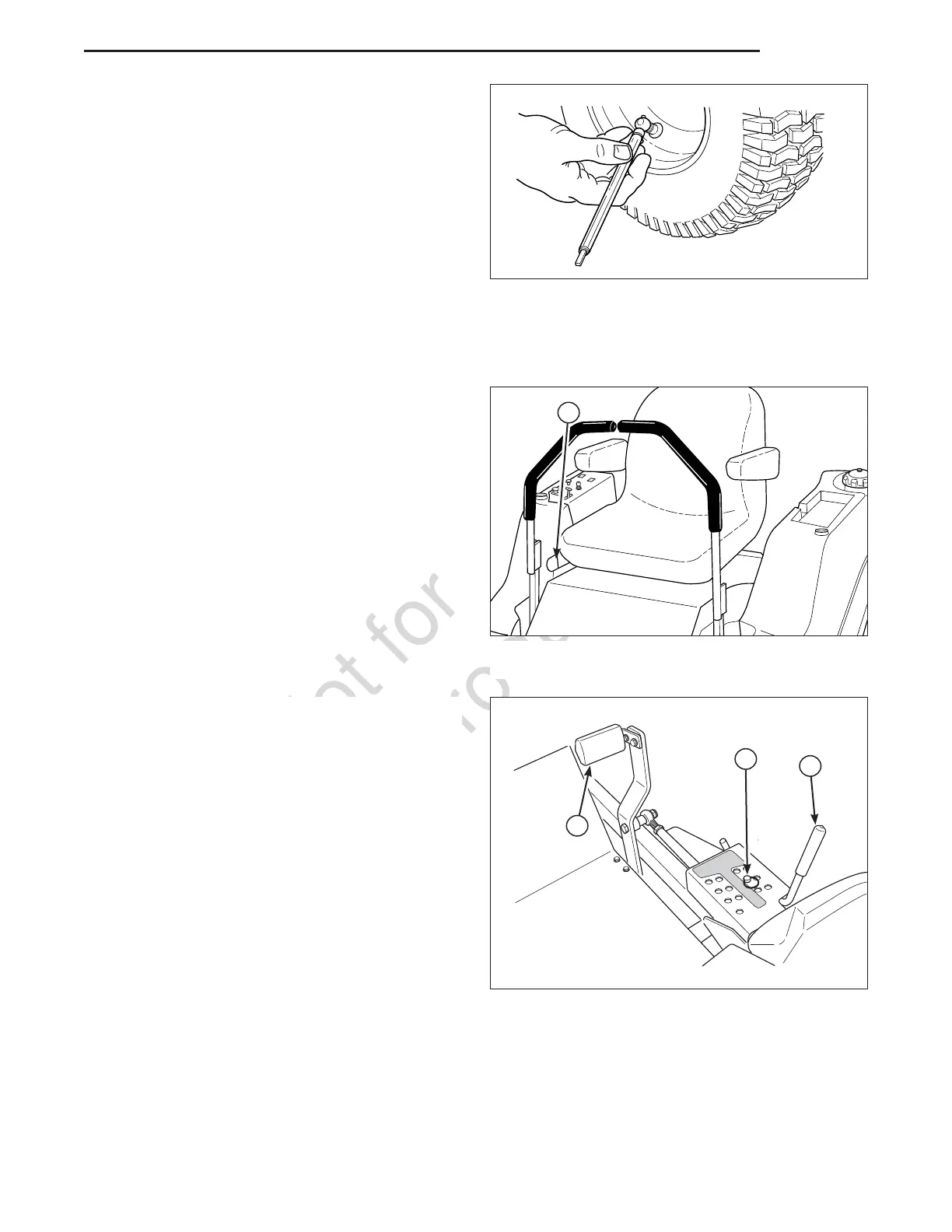

Figure 4. Seat Adjustment
A. Seat Adjustment Lever
Seat Adjustment
See Figure 4. The seat can be adjusted forward and
backward. Move the lever towards the left, position
the seat as desired, and release the lever to lock the
seat into position.
Figure 3. Checking Tire Pressure
A
C
Figure 5. Mowing Height Adjustment
A. Cutting Height Adjustment Pin
B. Deck Lift Foot Pedal
C. Deck Lift Lock lever
A
B
Mowing Height Adjustment
The cutting height adjustment pin (A, Figure 5) control
the mower cutting height. The cutting height is
adjustable between 1-1/2” (3,8 cm) and 6” (15,2 cm) in
1/4” (0,64 cm) increments.
1. Depress the deck lift foot pedal (B) until it locks
into the 6” (15,2 cm) position.
2. Place the cutting height adjustment pin in the
desired cutting height.
3. Depress the deck lift foot pedal then push the lock
lever (C) toward the right to release the lock.
4. Release the deck lift foot pedal until it comes to
rest against the cutting height adjustment pin.
Checking Tire Pressures
Tire pressure should be check periodically, and
maintained at the level shown in the Specifications
chart. Note that these pressure may differ slightly fron
the “Max Inflation” stamped on the side-wall of the
tires. The pressures shown provide proper traction and
extend tire life.
