18
www.SnapperPro.com
Operation

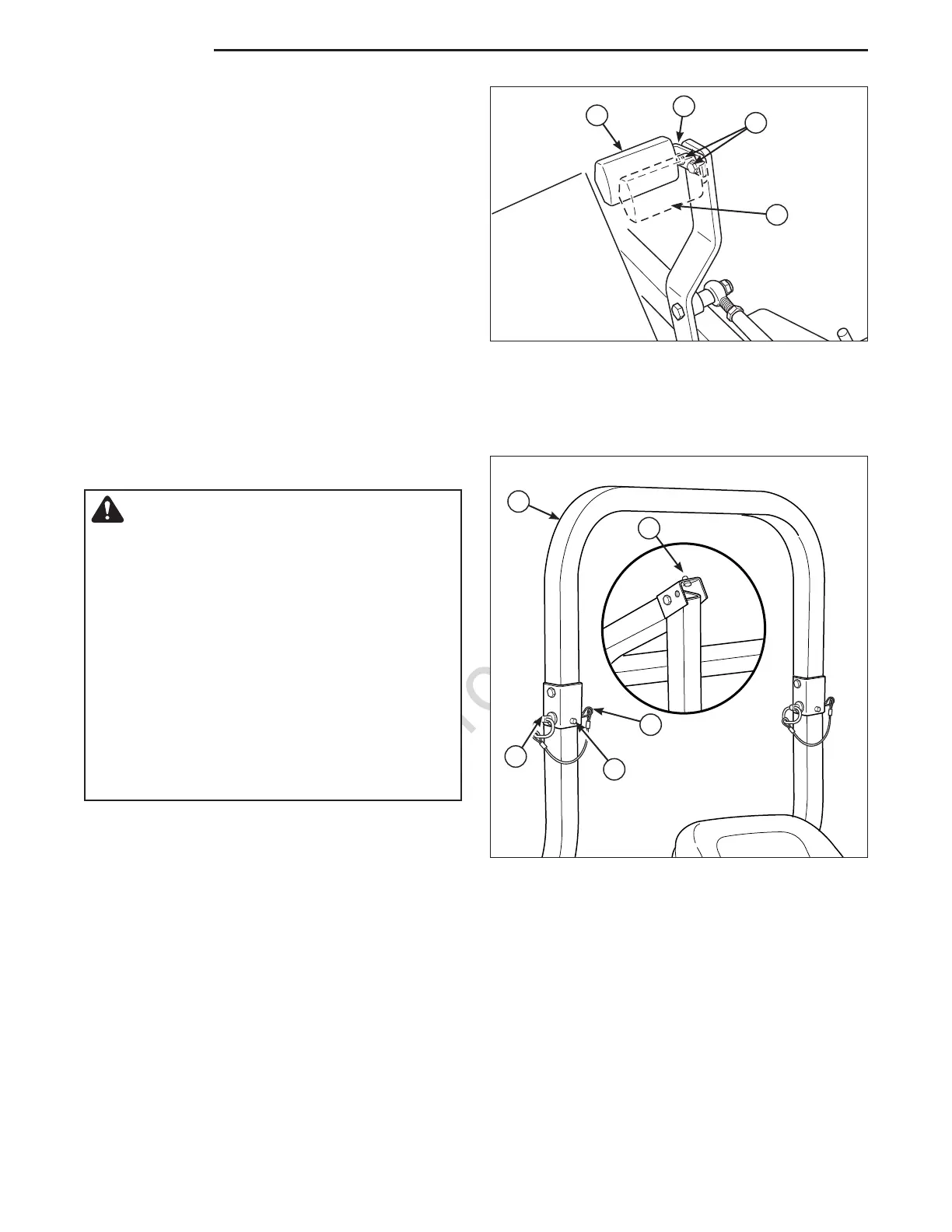

Figure 7. Raise & Lower the Roll Bar
A. Hair Pin Clip
B. Retainer Pin
C. Roll Bar
D. Rubber Stop
Raise and Lower the Roll Bar
To Lower the Roll Bar:
1. Pull the hair pin clips (A, Figure 7) out of the
retainer pins (B).
2. Push or pull the top of the roll bar (C) forward
against the rubber stops (D) and remove the
retainer pins (B).
3. Lower the roll bar into the down position (see
insert, Figure 8).
To Raise the Roll Bar:
1. Pull the hair pin clips (A) out of the retainer pins (B)
and remove the retainer pins.
2. Raise the roll bar (C) until the rubber stops (D)
contact the upright tubes.
3. Push or pull the top of the roll bar forward against
the rubber stops and reinstall the retainer pins and
hair pin clips to secure the roll bar in the raised
position.
C
A
D
WARNING
AVOID SERIOUS INJURY OR DEATH FROM
ROLL OVER:
Keep roll bar in the raised position and use the
seat belt.
THERE IS NO ROLL OVER PROTECTION WHEN
THE ROLL BAR IS DOWN
Lower the roll bar only when necessary and
NEVER remove it.
Do NOT use seat belt when the roll bar is
down.
Raise the roll bar as soon as clearance
permits.
Do NOT jump off if mower tips.
Foot Pedal Adjustment
The deck lift foot pedal can be adjusted to
accommodate the operator’s height for optimal
comfort.
To adjust pedal position:
1. Remove the foot pedal (A, Figure 6) from the pedal
mount tab (B).
2. Remove the pedal mount hardware (C) and rotate
the tab 180 degrees.
3. Reinstall the pedal mount hardware and tighten
securely.
4. Reinstall the foot pedal on the pedal mount tab in
the proper orientation as shown in Figure 6.
Figure 6. Foot Pedal Adjustment
A. Deck Lift Foot Pedal
B. Pedal Mount Tab
C. Pedal Mount Hardware
D. Optional Position
A
B
C
D
D
B
