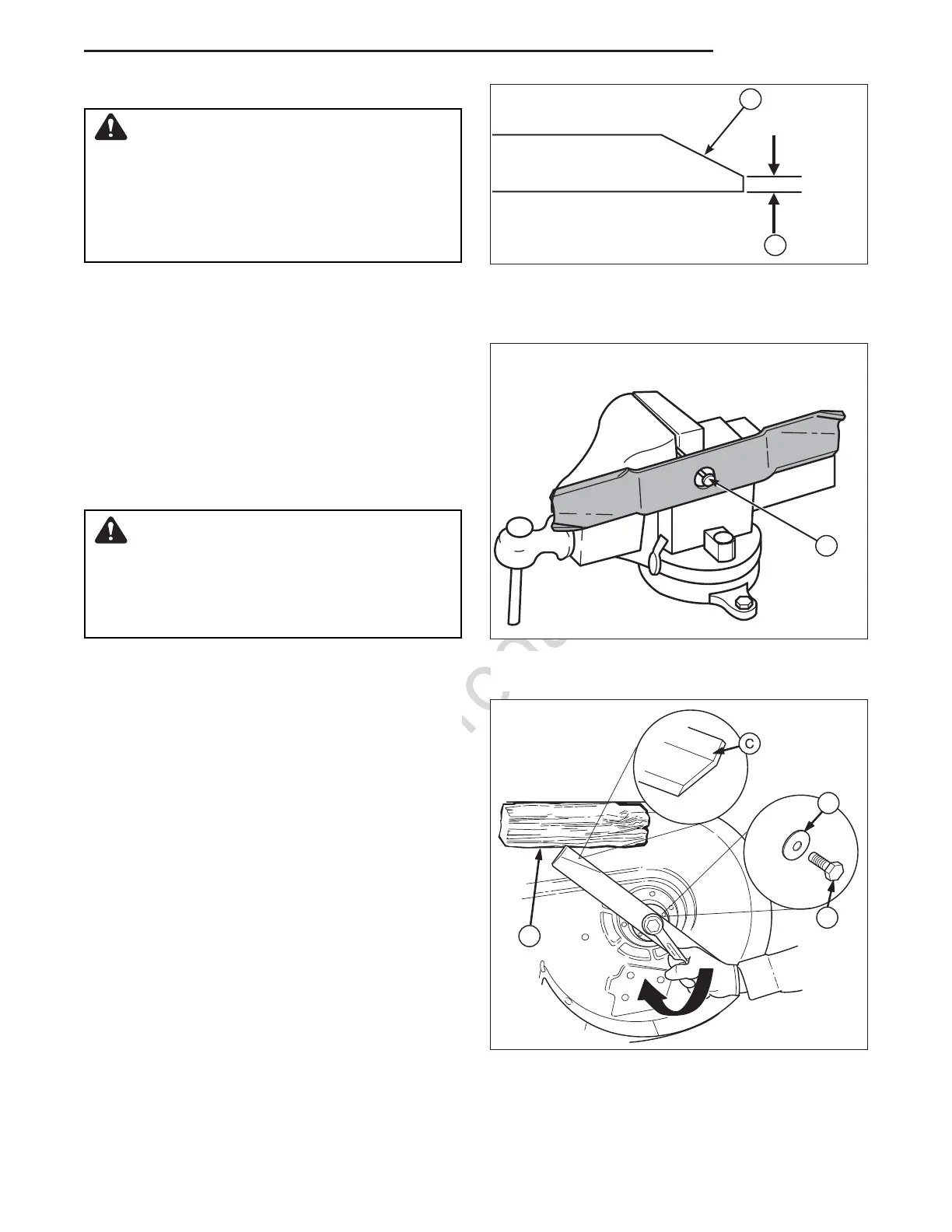

Figure 31. Tightening the Mower Blade for Installation
A. Mower Blade Mounting Bolt
B. Flat Washer
C. Mower Blade Air Lift (Points Up For Installation)
D. 4 X 4 Wooden Block
D
A
B
Sharpening the Mower Blade
1. Sharpen the mower blades with grinder, hand file,
or electric blade sharpener.
2. Sharpen the mower blade by removing an equal
amount of material from each end of the mower
blade.
3. Keep the original bevel (A, Figure 29) when
grinding. DO NOT change the mower blade bevel.
4. The mower blade should have a maximum 1/64”
(0,40 mm) cutting edge (B) or less.
5. Balance the mower blades before installing.
Balancing the Mower Blades
1. Clean the mower blade to remove any dried grass
or other debris.
2. See Figure 30. Put the mower blade on a nail in
a vise and turn the mower blade to the horizontal
position.
3. Check the balance of the mower blade. If either
end of the mower blade moves downward,
sharpen the heavy end until the mower blade is
balanced. See Sharpening the Mower Blades for
proper sharpening instructions.
4. Repeat the process until the mower blade remains
in the horizontal position.
Reinstalling the Mower Blades
1. Reinstall each mower blade with the air lifts
pointing up towards the mower deck as shown in
Figure 31. Secure with the mower blade mounting
bolt and flat washer (A & B, Figure 31) and torque
to 70 ft. lbs (94 Nm).
2. If there are no flats on the spindle shaft, wedge a
wooden block between the mower blade and the
mower deck housing to keep the mower blade
from turning.
CAUTION
Avoid injury! Mower blades are sharp.
• Always wear gloves when handling the
mower blades.
• Always wear safety eye protection when
grinding.
CAUTION
Avoid injury! Keep mower blades balanced.
• An unbalanced mower blade can create
excessive vibration and damage the unit or
cause mower blade failure.
A
B
Figure 29. Sharpening the Mower Blade
A. Mower Blade Bevel
B. Mower Blade Cutting Edge
Figure 30. Balancing the Mower Blade
A. Nail
A
To Next Page
