Snapper 6-0943 - Step 4: Grass Bag Installation; Step 5: Grass Tube Installation

3

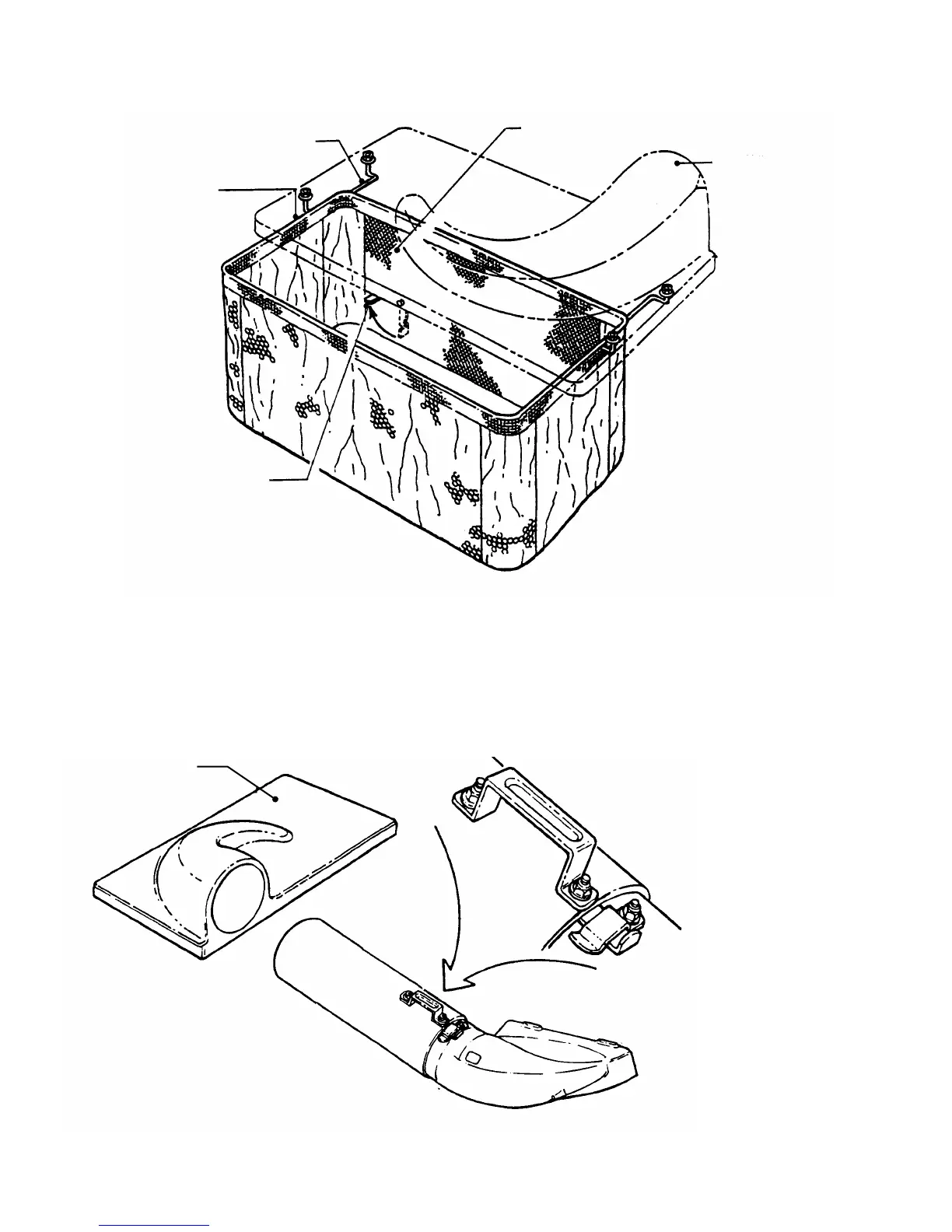

STEP 4: GRASS BAG INSTALLATION
Move the latch aside, then slide the grass bag into the frame with open mesh to the rear of the mower. Secure bag with latch.
See Figure 4.
FIGURE 4
STEP 5: GRASS TUBE INSTALLATION
A. Slide upper end of grass tube into opening of cover/frame structure.
B. Slide lower end of grass tube over adapter end and rotate tube towards mower to secure handle hook under latch. See
Figure 5.
FIGURE 5
OPEN MESH SIDE
TO REAR OF
MOWER AWAY
FROM ENGINE
BAG SUPPORT ROD
BAG ROD ON TOP OF
BAG SUPPORT ROD
COVER/FRAME
ASSEMBLY
MOVE LATCH ASIDE
TO INSTALL BAG
COVER/FRAME
STRUCTURE
