Page 7
Controls
ENGINE CONTROLS
Your new rototiller has been designed for both ease of
use and lasting reliability, and features a simplified
control system that requires just two operating controls.
These two operating controls, the Choke and the
Throttle, are conveniently located on the tiller engine
where they can be easily adjusted to start and run the
unit under a variety of operating conditions.
Throttle
The throttle controls engine speed, and allows you to
conserve fuel when idling, or to run the unit at maximum
speed for optimal tilling performance.
Choke
Put choke control in choke position if engine is cold. A
warm engine requires less choking than a cold engine.
Refer to your engine manual for further information.

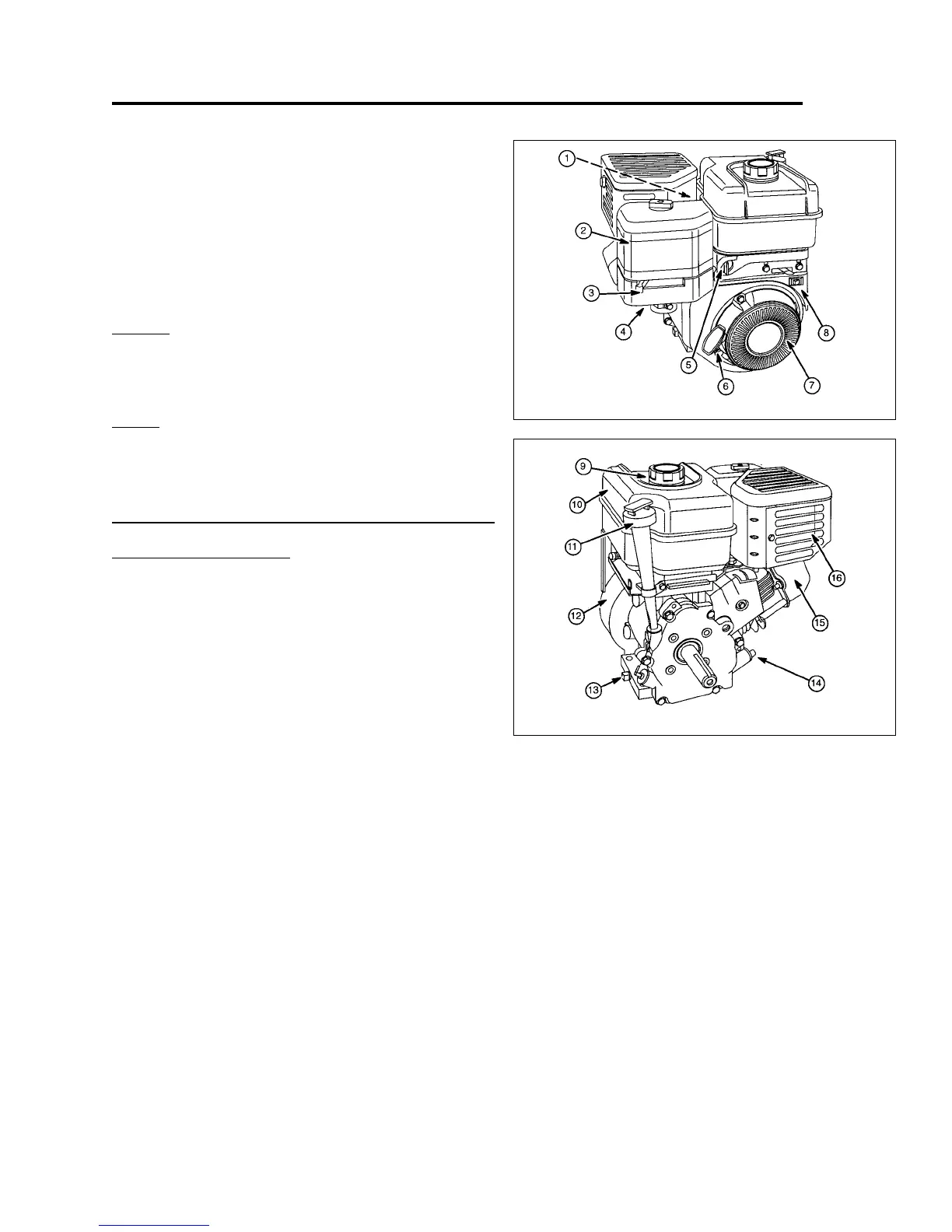

Model 7016RT & 6016RT
1. Spark plug wire
2. Air cleaner
3. Choke
4. Carburetor
5. Fuel shut-off valve (if equipped)
6. Rope handle
7. Finger guard
8. Stop switch (if equipped)
9. Fuel fill
10. Fuel tank
11. Oil fill/Dipstick (if equipped)
12. Blower housing
13. Oil drain plug
14. Oil fill cap
15. Engine Id plate
16. Muffler
Briggs & Stratton Intec Engine
Briggs & Stratton Intec Engine
