Check Mower Blade
1. Disconnect the spark plug wire and secure the end away
from the plug.

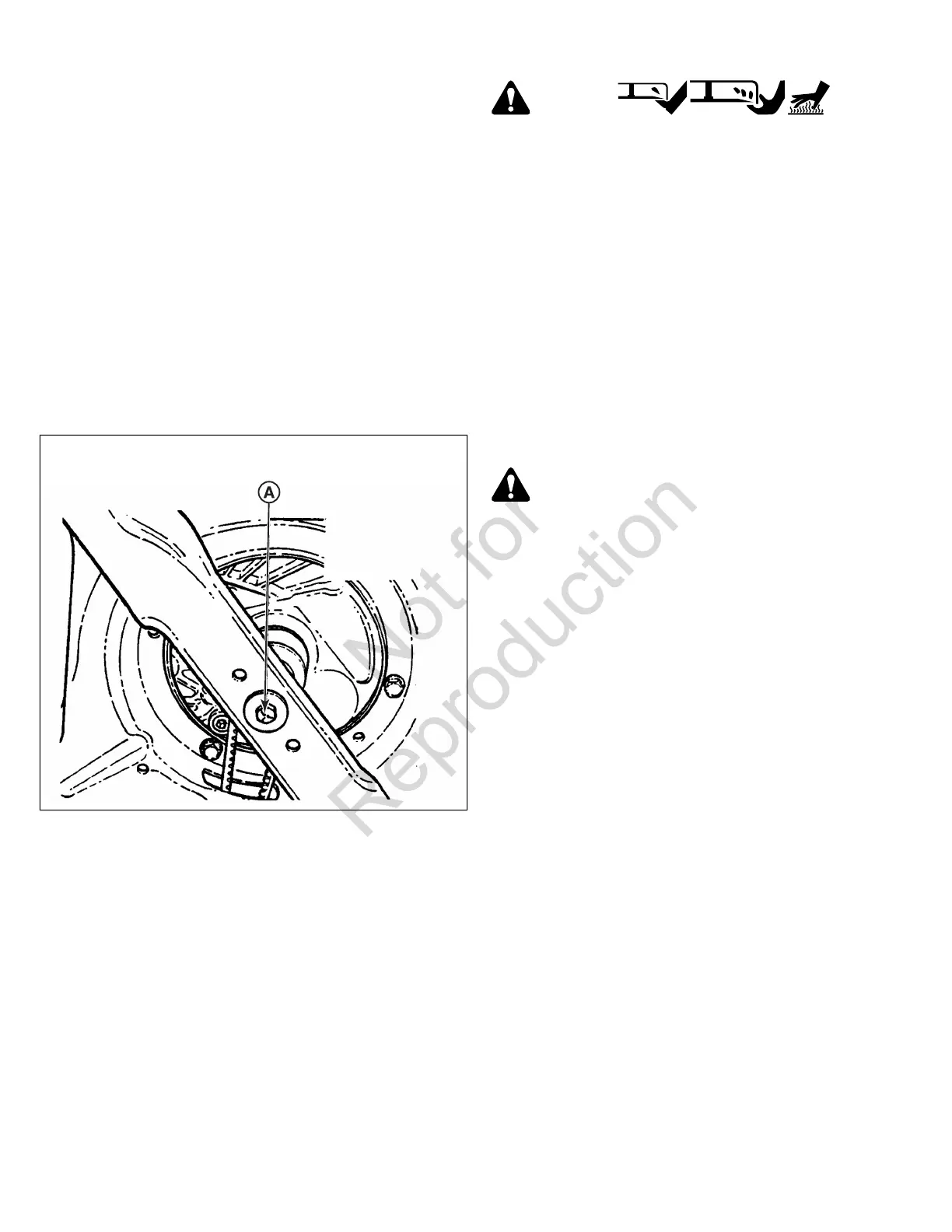

2. Tilt the mower up on its rear wheels for access to the blade
cap screw (A, Figure 22). Do not tilt the mower with the
spark plug or carburetor down.
NOTICE
Drain the fuel tank before tipping the mower. DO NOT tip the
machine with the carburetor or spark plug down. Oil from the
crankcase will saturate the air filter and cause the engine to
be hard to start or not start at all. If contamination does occur,
the air filter will have to be replaced.
3. Check the torque of the blade cap screw. Recommended
torque: 40 lb-ft (54 Nm).
4. Check the blade for sharpness, wear and damage. See
Blade Wear Limits
.
22
Check Engine Drive Belt
• Visually check the engine drive belt for cracking, fraying,
severed or exposed belt strands. If worn or damaged,
replace the belt before operating the mower.
Check Transmission Drive Belt
• Visually check the poly-v belt for cracking, fraying, severed
or exposed belt strands. If worn or damaged, replace the
belt before operating the mower.
Mower Blade Replacement
WARNING
Amputation Hazard
• DO NOT attempt any maintenance, adjustments or service
with engine and blade running.
• STOP engine and blade.
• Disconnect spark plug wire and secure away from spark
plug.
Burn Hazard
• Engine and components are HOT.
• Avoid serious burns, allow sufficient time for all
components to cool.
Laceration Hazard
• Wear heavy leather gloves when handling or working
around cutting blades.
• Blades are extremely sharp and can cause severe injury.
WARNING
Unsafe Operation Hazard
DO NOT use a cutting blade that shows signs of excessive wear
or damage.
Standard Blade Wear Limit
1. Inspect the blade (Figure 23) frequently for signs of
excessive wear or damage:
• (A) New blade
• (B) Wear limit (notch starts)
• (C) Dangerous condition! Do not use on the mower!
Replace with a new blade.
