Troubleshooting, Adjustment, & Service
Brake Adjustment
1. Disengage the PTO, stop the engine, block the
wheels, remove the ignition key, and engage the
parking brake.
2. Remove the mower deck (see Mower Deck
Removal).
3. Locate the brake spring (A, Figure 42). Measure the
length of the compressed brake spring with the park-
ing brake on. The compressed brake spring length
should be 3-1/2 to 3-3/4” (8,9-9,5cm).
4. If necessary, adjust the brake spring locknut to
achieve the correct compressed spring length.
If this does not correct a braking problem, see your
dealer.

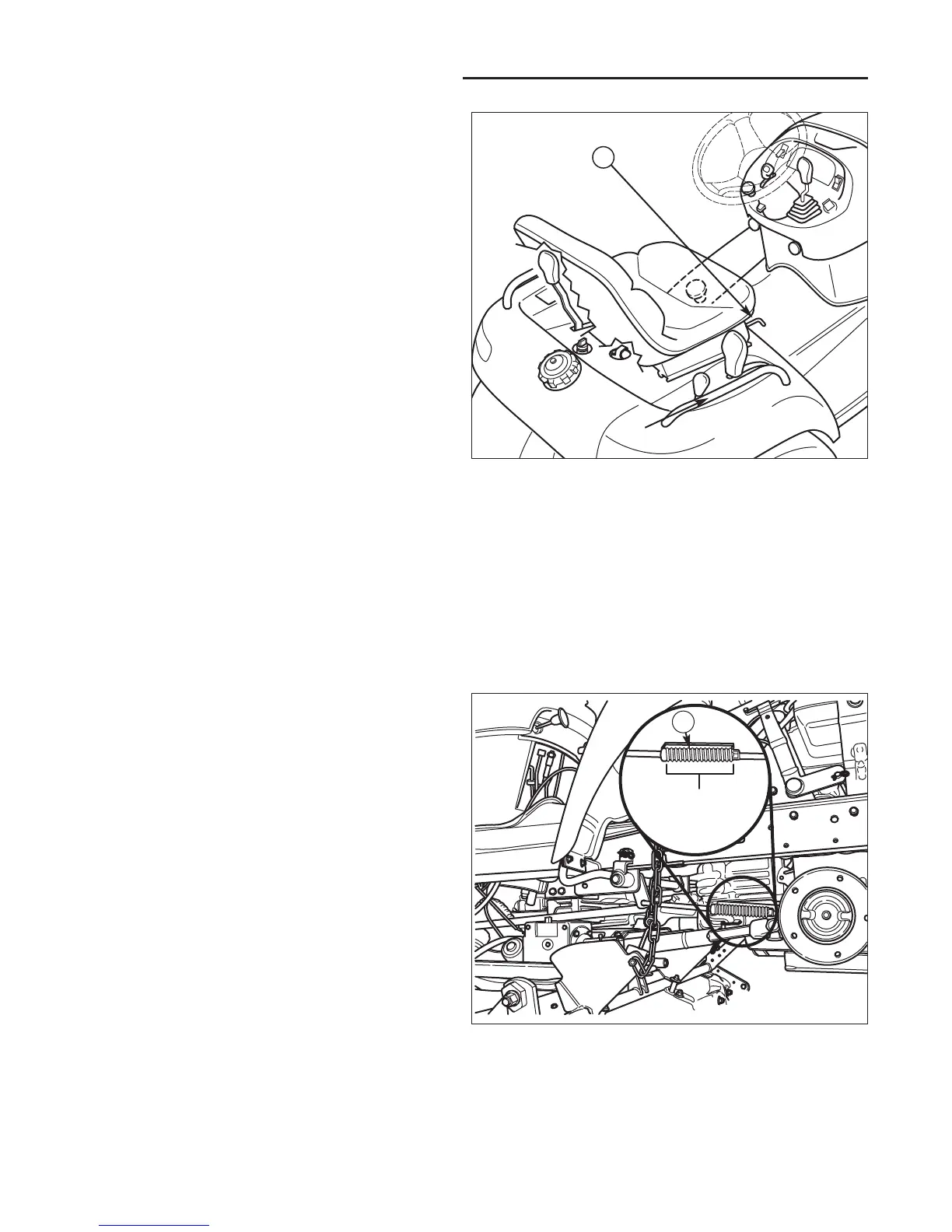

Figure 41. Seat Adjustment
A. Seat Adjustment Lever
A
Figure 42. Brake Adjustment
A. Brake Spring
A
Seat Adjustment
Seat Slide Adjustment
The seat can be adjusted forward and back. Move the
lever (A, Figure 41), position the seat as desired, and
release the lever to lock the seat into position.
