Troubleshooting, Adjustment, & Service
WARNING
Before checking mower, shut off PTO and engine.
Allow all moving parts to stop. Remove ignition
key, then disconnect the spark plug wires and
fasten them away from the spark plugs.
Mower Adjustments
Gauge Wheel Adjustment
The mower gauge wheels can be placed in two positions
depending on the height of cut. When using higher cut-
ting heights, set the wheels in the lower position. When
using lower cutting heights, set the wheels in the upper
position. To adjust:
1. Remove the hair pin clip (A, B, Figure 45).
2. For upper position, install the pin (A) through the
spindle above the bracket (C). For the lower position,
push down on the top of the spindle, and install the
hair pin clip (B) below the top of the bracket (C).

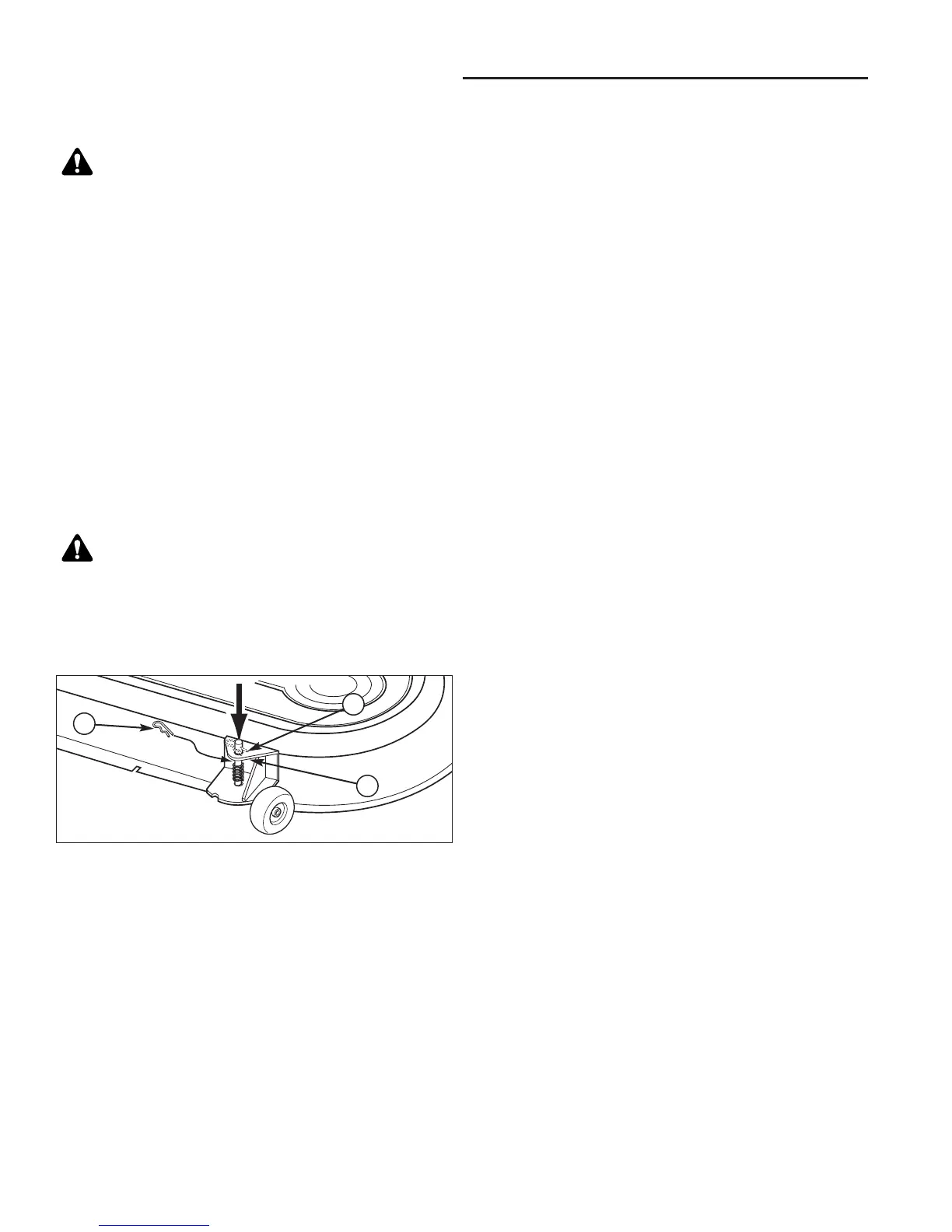

Figure 45. Gauge Wheel Adjustment
A. Hair Pin (Upper Position)
B. Hair Pin (Lower Position)
C. Gauge Wheel Bracket
A
B
C
CAUTION
DO NOT remove the mower deck baffles. The
baffles help prevent grass clippings from becoming
airborne and plugging up the engine cooling fins.
