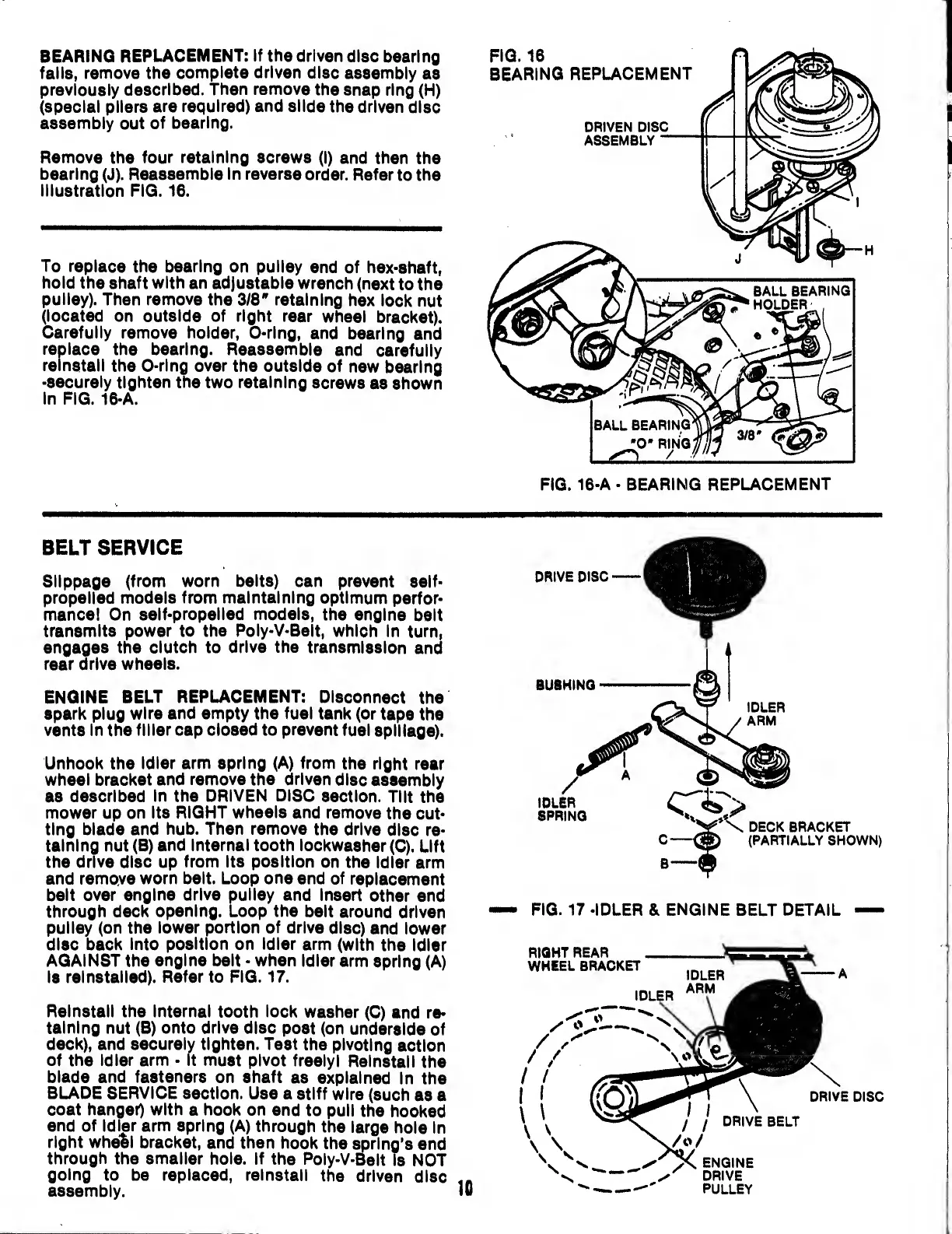

BEARING
REPLACEMENT:
If
the
driven
disc
bearing
fails,
remove
the
complete
driven
disc
assembly
as
previously
described.
Then
remove
the
snap
ring
(H)
(special
pliers
are
required)
and
slide
the
driven
disc
assembly
out
of
bearing.
Remove
the
four
retaining
screws
(I)
and
then
the
bearing
(J).
Reassemble
in
reverse
order.
Refer
to
the
illustration
FIG.
16.
To
replace
the
bearing
on
pulley
end
of
hex-shaft,
hold
the
shaft
with
an
adjustable
wrench
(next
to
the
pulley).
Then
remove
the
3/8'
retaining
hex
lock
nut
(located
on
outside
of
right
rear
wheel
bracket).
Carefully
remove
holder,
0-ring,
and
bearing
and
replace
the
bearing.
Reassemble
and
carefully
reinstall
the
0-ring
over
the
outside
of
new
bearing
-securely
tighten
the
two
retaining
screws
as
shown
in
FIG.
16-A.
BELT
SERVICE
Slippage
(from
worn
belts)
can
prevent
self-
propelled
models
from
maintaining
optimum
perfor¬
mance!
On
self-propelled
models,
the
engine
belt
transmits
power
to
the
Poly-V-Belt,
which
In
turn,
engages
the
clutch
to
drive
the
transmission
and
rear
drive
wheels.
ENGINE
BELT
REPLACEMENT:
Disconnect
the
spark
plug
wire
and
empty
the
fuel
tank
(or
tape
the
vents
In
the
filler
cap
closed
to
prevent
fuel
spillage).
Unhook
the
Idler
arm
spring
(A)
from
the
right
rear
wheel
bracket
and
remove
the
driven
disc
assembly
as
described
in
the
DRIVEN
DISC
section.
Tilt
the
mower
up
on
Its
RIGHT
wheels
and
remove
the
cut¬
ting
blade
and
hub.
Then
remove
the
drive
disc
re¬
taining
nut
(B)
and
internal
tooth
lockwasher
(C).
Lift
the
drive
disc
up
from
its
position
on
the
idler
arm
and
rempve
worn
belt.
Loop
one
end
of
replacement
belt
over
engine
drive
pulley
and
insert
other
end
through
deck
opening.
Loop
the
belt
around
driven
pulley
(on
the
lower
portion
of
drive
disc)
and
lower
disc
back
into
position
on
Idler
arm
(with
the
Idler
AGAINST
the
engine
belt
-
when
idler
arm
spring
(A)
is
reinstalled).
Refer
to
FIG.
17.
Reinstall
the
internal
tooth
lock
washer
(C)
and
re¬
taining
nut
(B)
onto
drive
disc
post
(on
underside
of
deck),
and
securely
tighten.
Test
the
pivoting
action
of
the
idler
arm
-
it
must
pivot
freely!
Reinstall
the
blade
and
fasteners
on
shaft
as
explained
In
the
BLADE
SERVICE
section.
Use
a
stiff
wire
(such
as
a
coat
hanger)
with
a
hook
on
end
to
pull
the
hooked
end
of
idler
arm
spring
(A)
through
the
large
hole
in
right
wheel
bracket,
and
then
hook
the
spring’s
end
through
the
smaller
hole.
If
the
Poly-V-Belt
Is
NOT
going
to
be
replaced,
reinstall
the
driven
disc
assembly.
lO
FIG.
17-IDLER
&
ENGINE
BELT
DETAIL
