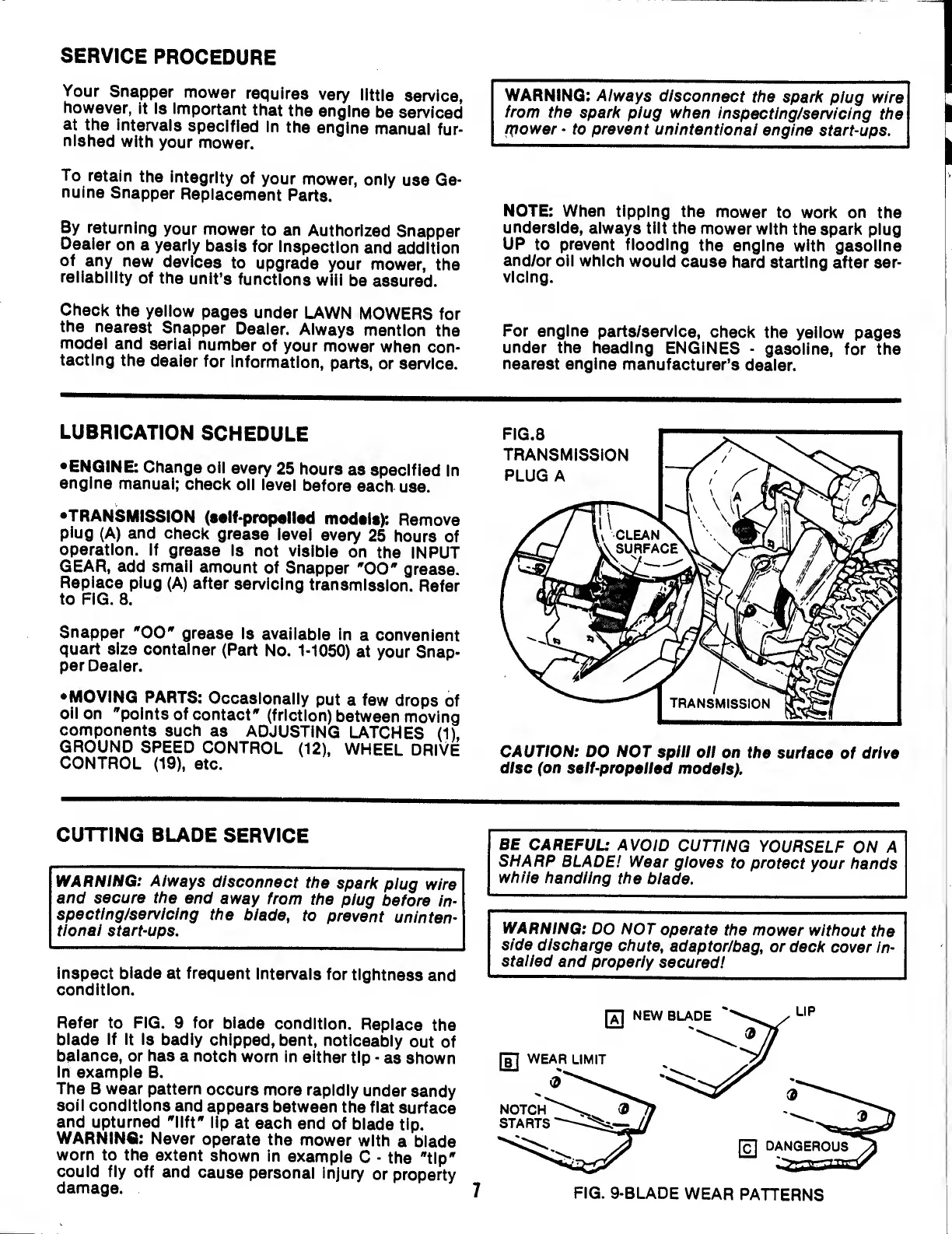

SERVICE
PROCEDURE
Your
Snapper
mower
requires
very
little
service,
however,
it
is
important
that
the
engine
be
serviced
at
the
intervals
specified
in
the
engine
manual
fur¬
nished
with
your
mower.
To
retain
the
integrity
of
your
mower,
only
use
Ge¬
nuine
Snapper
Replacement
Parts.
By
returning
your
mower
to
an
Authorized
Snapper
Dealer
on
a
yearly
basis
for
inspection
and
addition
of
any
new
devices
to
upgrade
your
mower,
the
reliability
of
the
unit’s
functions
will
be
assured.
Check
the
yellow
pages
under
LAWN
MOWERS
for
the
nearest
Snapper
Dealer.
Always
mention
the
model
and
serial
number
of
your
mower
when
con¬
tacting
the
dealer
for
information,
parts,
or
service.
WARNING:
Always
disconnect
the
spark
plug
wire
from
the
spark
plug
when
Inspecting/servicing
the
(power
-
to
prevent
unintentional
engine
start-ups.
NOTE:
When
tipping
the
mower
to
work
on
the
underside,
always
tilt
the
mower
with
the
spark
plug
UP
to
prevent
flooding
the
engine
with
gasoline
and/or
oil
which
would
cause
hard
starting
after
ser¬
vicing.
For
engine
parts/service,
check
the
yellow
pages
under
the
heading
ENGINES
-
gasoline,
for
the
nearest
engine
manufacturer’s
dealer.
LUBRICATION
SCHEDULE
•ENGINE:
Change
oil
every
25
hours
as
specified
in
engine
manual;
check
oil
level
before
each
use.
•TRANSMISSION
(self-propelled
models):
Remove
plug
(A)
and
check
grease
level
every
25
hours
of
operation.
If
grease
is
not
visible
on
the
INPUT
GEAR,
add
small
amount
of
Snapper
*00"
grease.
Replace
plug
(A)
after
servicing
transmission.
Refer
to
FIG.
8.
Snapper
*00"
grease
is
available
in
a
convenient
quart
size
container
(Part
No.
1-1050)
at
your
Snap¬
per
Dealer.
•MOVING
PARTS:
Occasionally
put
a
few
drops
of
oil
on
"points
of
contact*
(friction)
between
moving
components
such
as
ADJUSTING
LATCHES
(1),
GROUND
SPEED
CONTROL
(12),
WHEEL
DRIVE
CONTROL
(19),
etc.
CAUTION:
DO
NOT
spill
oil
on
the
surface
of
drive
disc
(on
self-propelled
models).
CUTTING
BLADE
SERVICE
WARNING:
Always
disconnect
the
spark
plug
wire
and
secure
the
end
away
from
the
plug
before
in¬
specting/servicing
the
blade,
to
prevent
uninten¬
tional
start-ups.
Inspect
blade
at
frequent
intervals
for
tightness
and
condition.
Refer
to
FIG.
9
for
blade
condition.
Replace
the
blade
if
it
is
badly
chipped,
bent,
noticeably
out
of
balance,
or
has
a
notch
worn
in
either
tip
-
as
shown
in
example
B.
The
B
wear
pattern
occurs
more
rapidly
under
sandy
soil
conditions
and
appears
between
the
flat
surface
and
upturned
"lift*
lip
at
each
end
of
blade
tip.
WARNING:
Never
operate
the
mower
with
a
blade
worn
to
the
extent
shown
in
example
0
the
"tip*
could
fly
off
and
cause
personal
injury
or
property
damage.
7
BE
CAREFUL:
AVOID
CUTTING
YOURSELF
ON
A
SHARP
BLADE!
Wear
gloves
to
protect
your
hands
while
handling
the
blade.
WARNING:
DO
NOT
operate
the
mower
without
the
side
discharge
chute,
adaptor/bag,
or
deck
cover
In¬
stalled
and
properly
secured!
FIG.
9-BLADE
WEAR
PATTERNS
