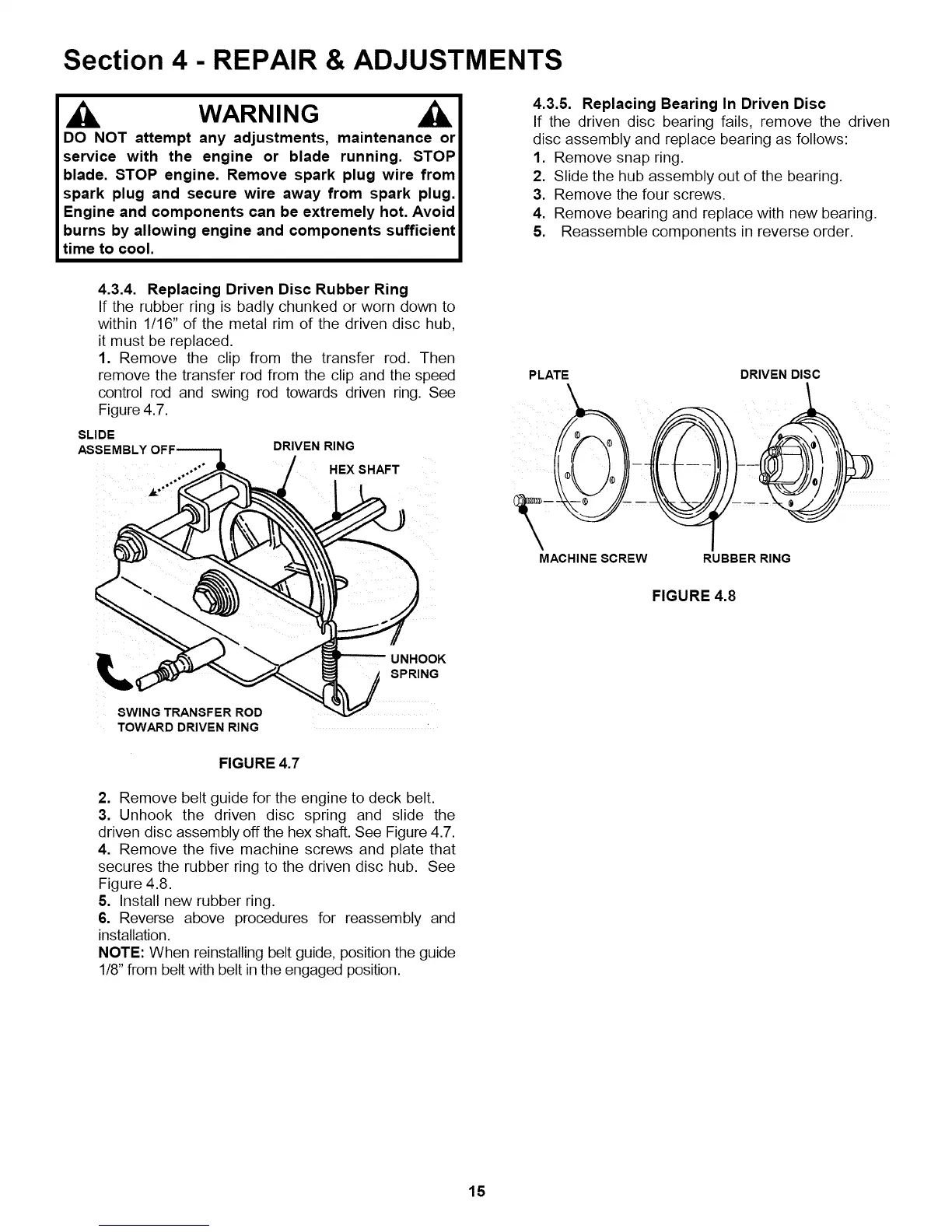

Section 4 - REPAIR & ADJUSTMENTS
WARNING
DO NOT attempt any adjustments, maintenance or
service with the engine or blade running. STOP
blade. STOP engine. Remove spark plug wire from
spark plug and secure wire away from spark plug.
Engine and components can be extremely hot. Avoid
burns by allowing engine and components sufficient
time to cool.
4.3.5. Replacing Bearing In Driven Disc
If the driven disc bearing fails, remove the driven
disc assembly and replace bearing as follows:
1. Remove snap ring.
2. Slide the hub assembly out of the bearing.
3. Remove the four screws.
4. Remove bearing and replace with new bearing.
5. Reassemble components in reverse order.
4.3.4. Replacing Driven Disc Rubber Ring
If the rubber ring is badly chunked or worn down to
within 1/16" of the metal rim of the driven disc hub,
it must be replaced.
1. Remove the clip from the transfer rod. Then
remove the transfer rod from the clip and the speed
control rod and swing rod towards driven ring. See
Figure 4.7.
SLIDE
DRIVEN RING
HEX SHAFT
PLATE
MACHINE SCREW
DRIVEN DISC
RUBBER RING
FIGURE 4.8
_1_ ( UNHOOK
SPRING
SWING TRANSFER ROD
TOWARD DRIVEN RING
FIGURE 4.7
2. Remove belt guide for the engine to deck belt.
3. Unhook the driven disc spring and slide the
driven disc assembly off the hex shaft. See Figure 4.7.
4. Remove the five machine screws and plate that
secures the rubber ring to the driven disc hub. See
Figure 4.8.
5. Install new rubber ring.
6. Reverse above procedures for reassembly and
installation.
NOTE: When reinstalling belt guide, position the guide
1/8" from belt with belt in the engaged position.
15
