Section 1 - FAMILIARIZATION
BLADE CONTROL
ENGINE SPEED CONTROL
GROUNDSPEED CONTROL
WHEEL
DRIVE
CONTROL
SWIVEL WHEEL
LOCK CONTROL
REAR HEIGHT
ADJUSTMENT
LEVER
DEFLECTOR
MOWER DECK
FUEL TANK
AIR FILTER
OIL FILTER
SWIVEL WHEEL
LOCK
FRONT HEIGHT ADJUSTMENT
I'I_UI_I= 1.1
1.1 INTRODUCTION
This manual has been prepared for the operators of the
SNAPPER WALK BEHIND MOWERS. Its purpose,
aside from recommending operating and routine service
requirements, is to promote safety through the use of
accepted operating practices. Read, Understand and
Follow the "IMPORTANT SAFETY INSTRUCTIONS" on
Pages 2 & 3 of this manual and all safety messages on
the mower and attachments before operating the mower.
IMPORTANT: This machine is equipped with a blade
brake clutch (BBC). The engine can be started and
operated without engaging the blade. The blade can
be disengaged (stopped) without stopping engine.
1.2 NOMENCLATURE

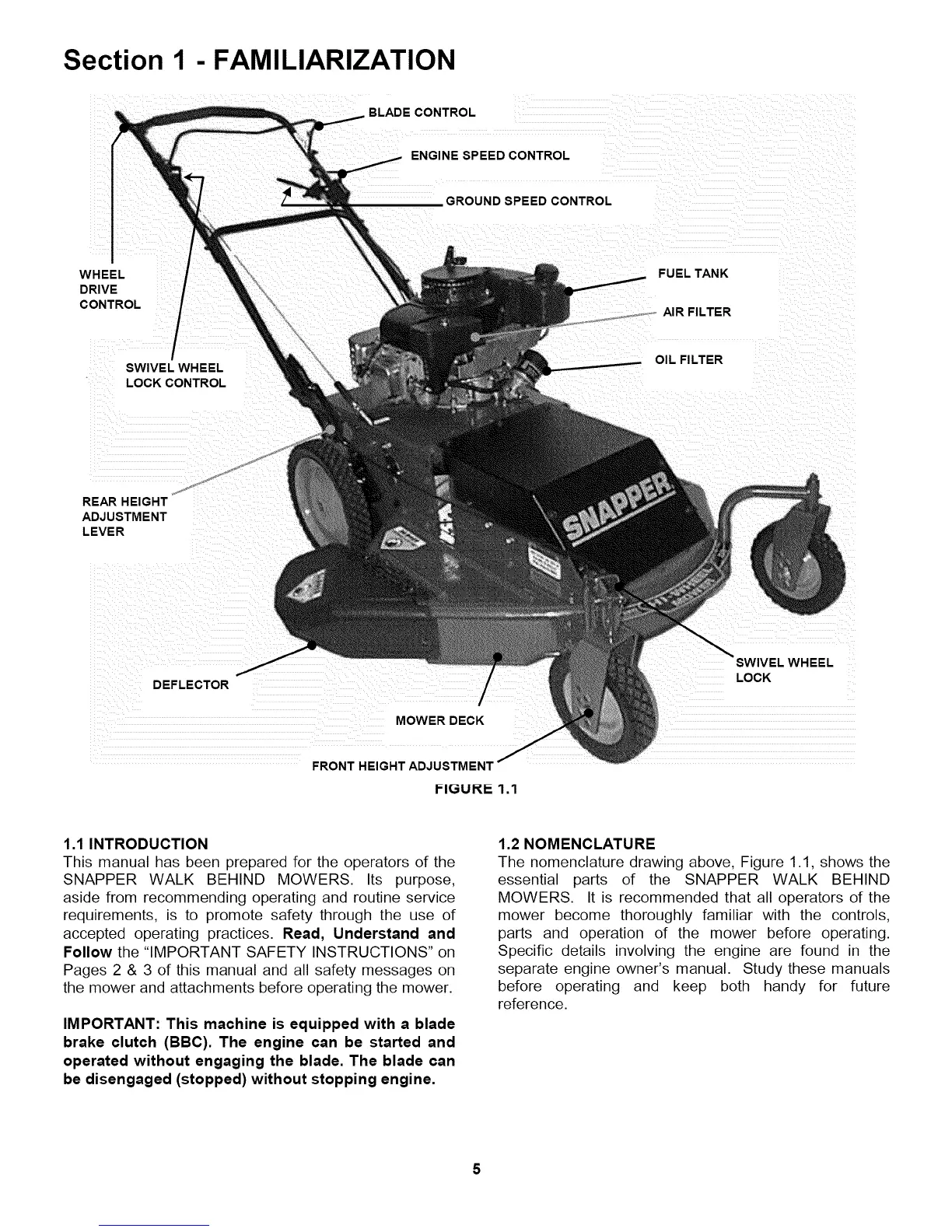

The nomenclature drawing above, Figure 1.1, shows the
essential parts of the SNAPPER WALK BEHIND
MOWERS. It is recommended that all operators of the
mower become thoroughly familiar with the controls,
parts and operation of the mower before operating.
Specific details involving the engine are found in the
separate engine owner's manual. Study these manuals
before operating and keep both handy for future
reference.
