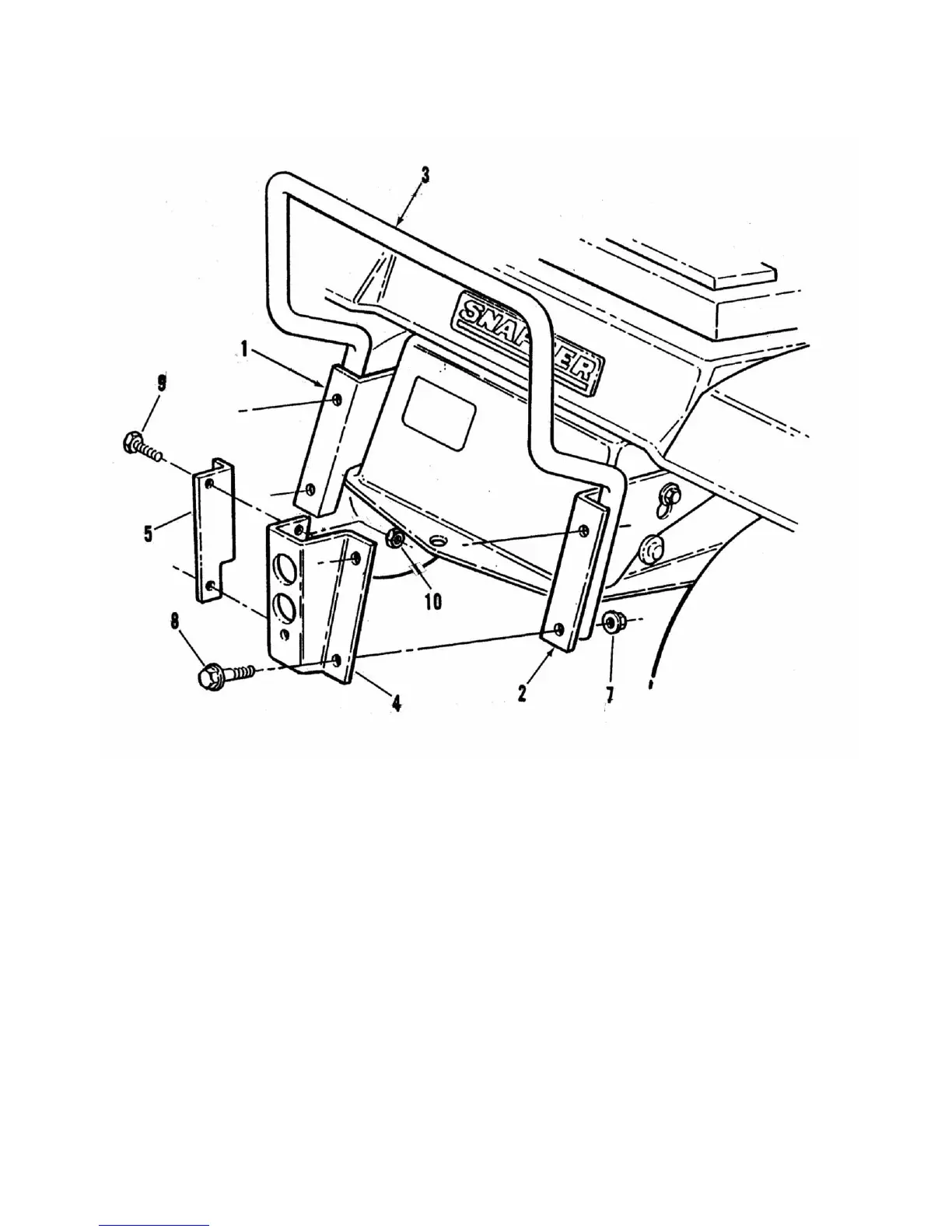

ACCESSORY, GRASS CATCHER ADAPTER 6-1334
(for 1-Piece Frame, Series A thru D Models)
ITEM PART NO. DESCRIPTION
-- 6-1334 KIT, Grass Catcher Adapter (Includes items 1 thru 6)
1 3-4173 SUPPORT, Stand-Up Tube L.H. (shown installed)
2 3-4172 SUPPORT, Stand-Up Tube R.H. (shown installed)
3 1-7593 BUMPER
4 3-4020 BRACKET
5 3-3991 BRACKET, Stand-Off
6 6-1258 BAG, Hardware (Includes indented items below)
7 9-1601 NUT, 5/16-18 Hex Flange Lock, Grade 5 (4)
8 9-1592 BOLT, 5/16-18 x 2” Hex Flange Lock, Grade 5 (4)
9 2-7172 SCREW, 1/4-20 x 5/8” Hex Head Cap, Grade 5 (2)
10 9-1584 NUT, 1/4-20 Hex Flange Lock, Grade 5 (2)
MANUAL No. 06613 LT SERIES (Small Frame)
