31

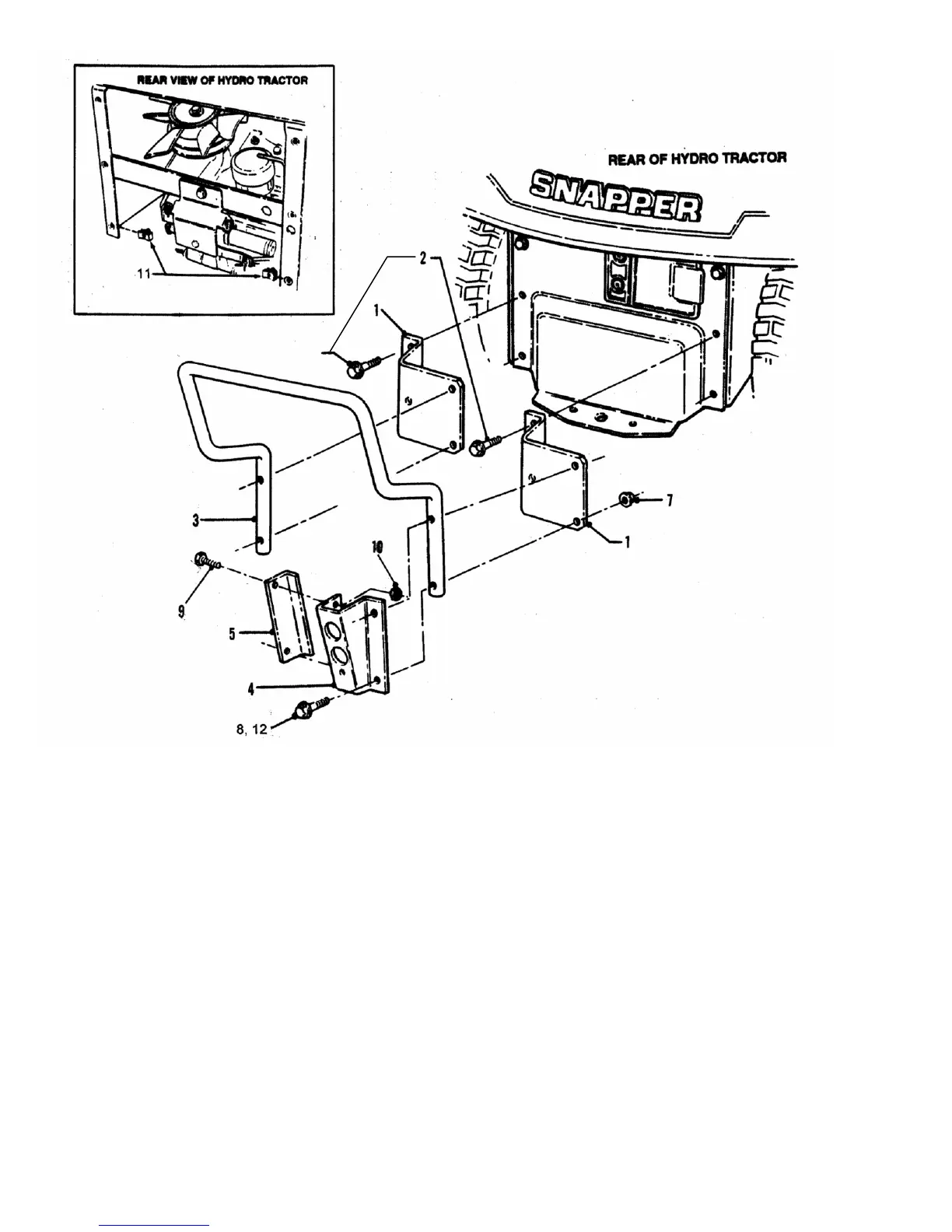

6-1068 ACCESSORY, GRASS CATCHER ADAPTER
(for Hydro and Gear Drive Models)
NOTE:
LT Hydro Bagger Adapter Kit #6-1311,
(included in Kit #6-1068) consists of items:
#1 (quantity. 2), #2 (qty. 4), #7 (qty. 4) and
#8 (qty. 4).This kit is required on Hydro Drive
Tractors with wide tires (20-10.00 x 8).
ITEM PART NO. DESCRIPTION
-- 6-1068 KIT, Grass Catcher Adapter (Includes items 1 thru 7)
1 3-4062 BRACKET, Bagger Adapter (2)
2 9-1591 BOLT, 5/16-18 x 1” Hex Flange Lock, Grade 5 (4)
3 1-7593 BUMPER
4 3-4020* BRACKET, Support
5 3-3140* BRACKET, Stand-off
6 6-1070 BAG, Hardware (includes indented items below)
7 9-1601 NUT, 5/16-18 Hex Flange Lock, Grade 5 (4)
8 9-1602 BOLT, 5/16-18 x 1-1/2” Hex Flange Lock, Grade 5 (2 in bag; 4 in kit)
9 2-7172 SCREW, 1/4-20 x 5/8” Hex Head Cap, Grade 5 (2)
10 9-1584 NUT, 1/4-20 Hex Flange Lock, Grade 5 (2)
11 1-6116 NUT, 5/16” Push-on (4)
12 9-1264 BOLT, 5/16-18 x 1-3/4” Hex Flange Lock, Grade 5 (2)
*NOTE: Required for Twin Bag Models only.
LT SERIES (Small Frame) MANUAL No. 06613
