55

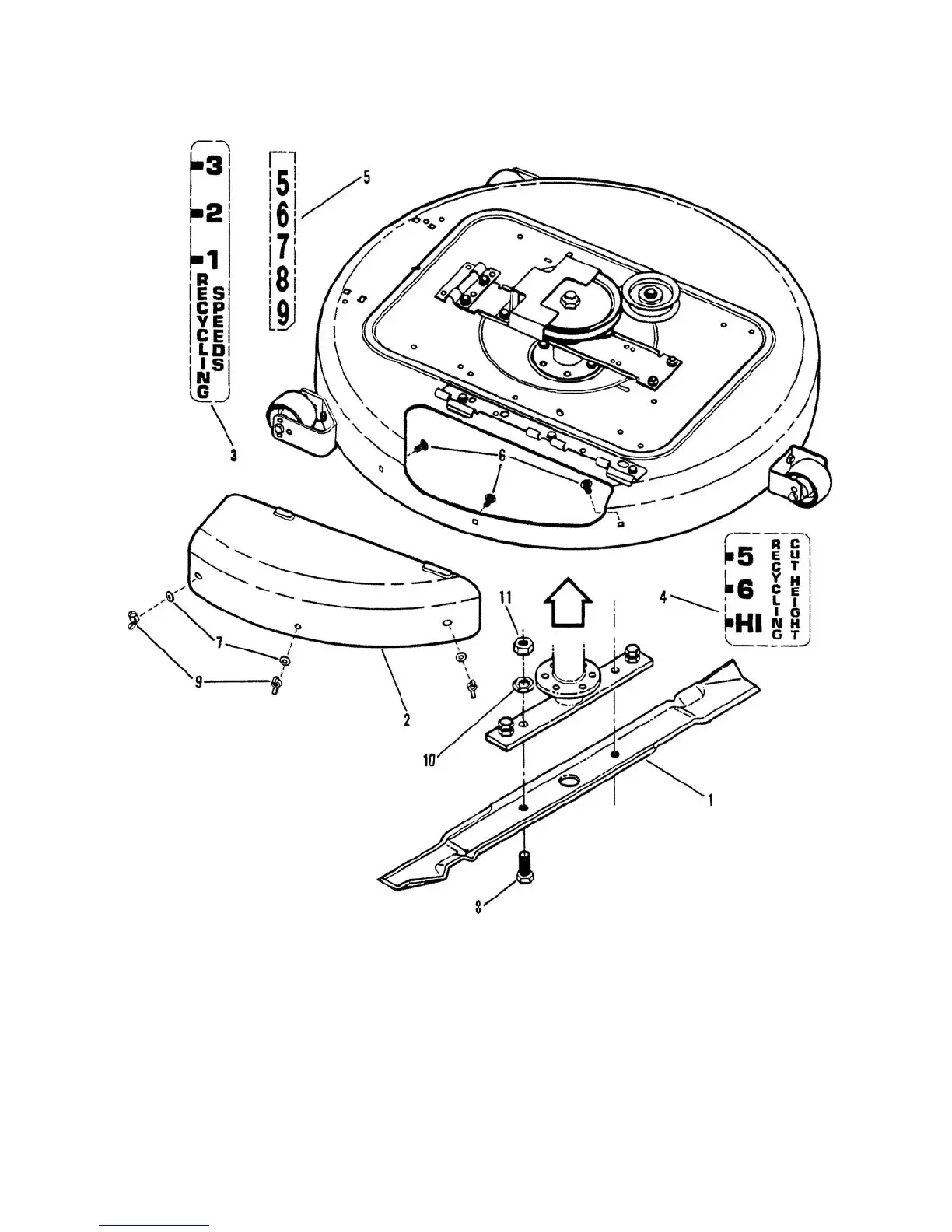

6-1051 ACCESSORY, 33” RECYCLE KIT
ITEM PART NO. DESCRIPTION
-- 6-1051 KIT, 33” Recycle (Incl. 1-11)
1 1-6982 BLADE, 33” Recycling
2 1-6984 COVER, 33” Side Chute
-- 6-1093 BAG, Hardware (Incl. 3-11)
3 1-7176 DECAL, Recy. Ground Speed
4 1-7328 DECAL, Recycling Ht. of Cut
5 2-2325 DECAL, Cut Height
ITEM PART NO. DESCRIPTION
6 9-0001 BOLT, 5/16-18 x 3/4” Short Neck
Carriage, Grade 5 (3)
7 9-0188 WASHER, 5/16” Flat (3)
8 9-0392 SCREW, 1/2-20 x 1” Hex Head
Cap, Grade 5 (2)
9 9-0492 WING-NUT, 5/16-18 (3)
10 9-0509 WASHER, 1/2” Internal Tooth (2)
11 9-0559 NUT, 1/2-20 Hex Jam (2)
LT (Small Frame) ACCESSORIES MANUAL No. 06613
