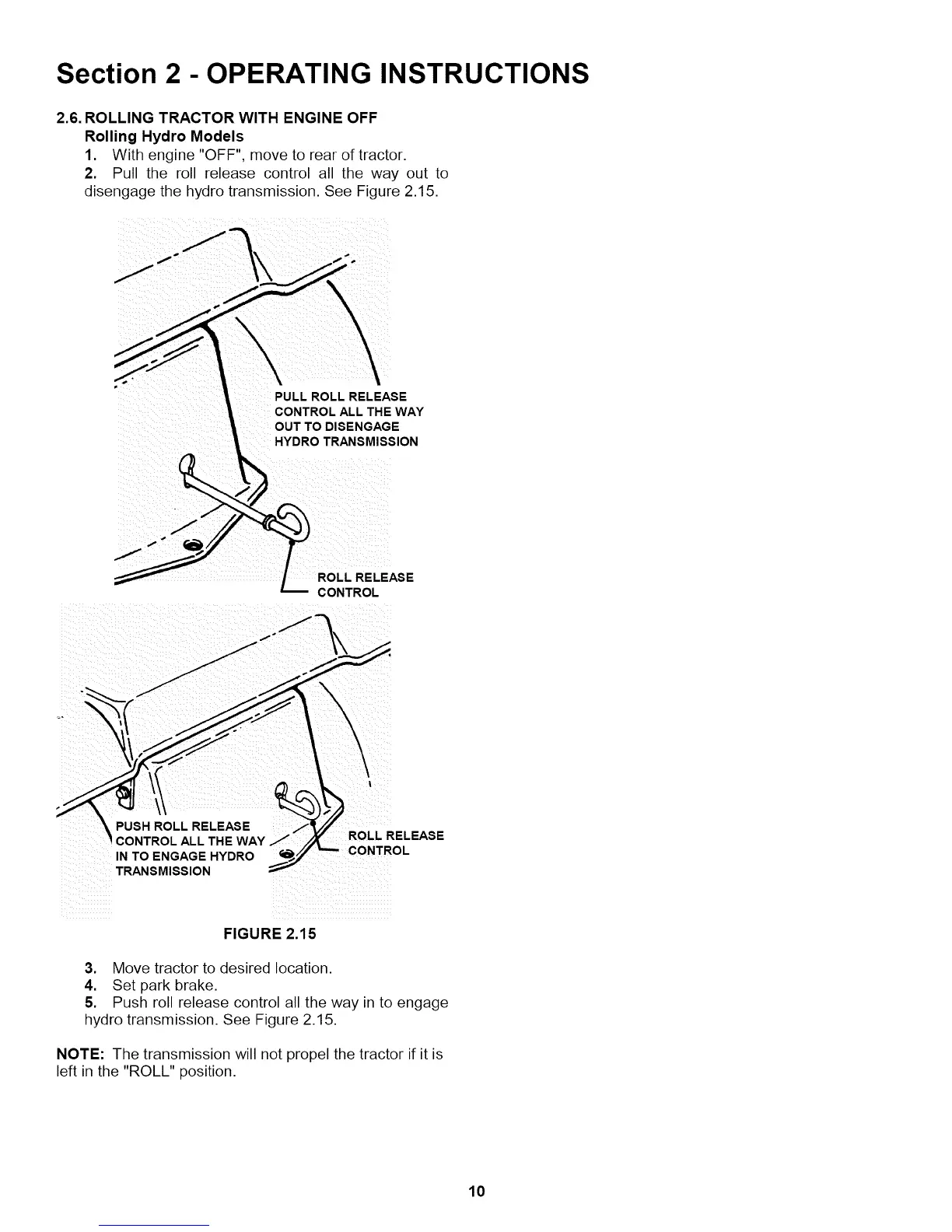

Section 2 - OPERATING INSTRUCTIONS
2.6. ROLLING TRACTOR WITH ENGINE OFF
Rolling Hydro Models
1. With engine "OFF", move to rear of tractor.
2. Pull the roll release control all the way out to
disengage the hydro transmission. See Figure 2.15.
PULL ROLL RELEASE
CONTROL ALL THE WAY
OUT TO DISENGAGE
HYDRO TRANSMISSION
ROLL RELEASE
CONTROL
,_ _i _iI
i PUSH ROLL RELEASE ....
CONTROL ALL THE WAY Z ROLL RELEASE
IN TO ENGAGE HYDRO
TRANSMISSION
FIGURE 2.15
3. Move tractor to desired location.
4. Set park brake.
5. Push roll release control all the way in to engage
hydro transmission. See Figure 2.15.
NOTE: The transmission will not propel the tractor if it is
left in the "ROLL" position.
10
