RECYCLING COVER
(Optional Accessory on Some Models)
Install the recycling cover and secure to the side and
top of the deck with the two nuts provided on the
machine. Slide top portion of cover under nut and make
sure the slot is completely underneath the nut. See
Figure 19.
FIGURE 19
WARNING
DO NOT operate without entire Grass Catcher or
guard in place. Grass Catcher components are
subject to deterioration during normal use. Inspect
frequently and replace worn or damaged
components immediately.
FOAM BLADE BLOCK REMOVAL
Tip mower back against the upper handle to gain access to
the underside of the cutting blade. Remove foam shipping
block from cutting blade. This must be removed before
starting the engine.
IMPORTANT: DO NOT tip machine with carburetor or
spark plug down. Oil from crankcase will saturate the air
filter and cause the engine to be hard to start or not start
at all. If contamination does occur, the air filter will have
to be replaced.
Assembly is complete. Complete all items on the
Pre-Operation Checklist as instructed.

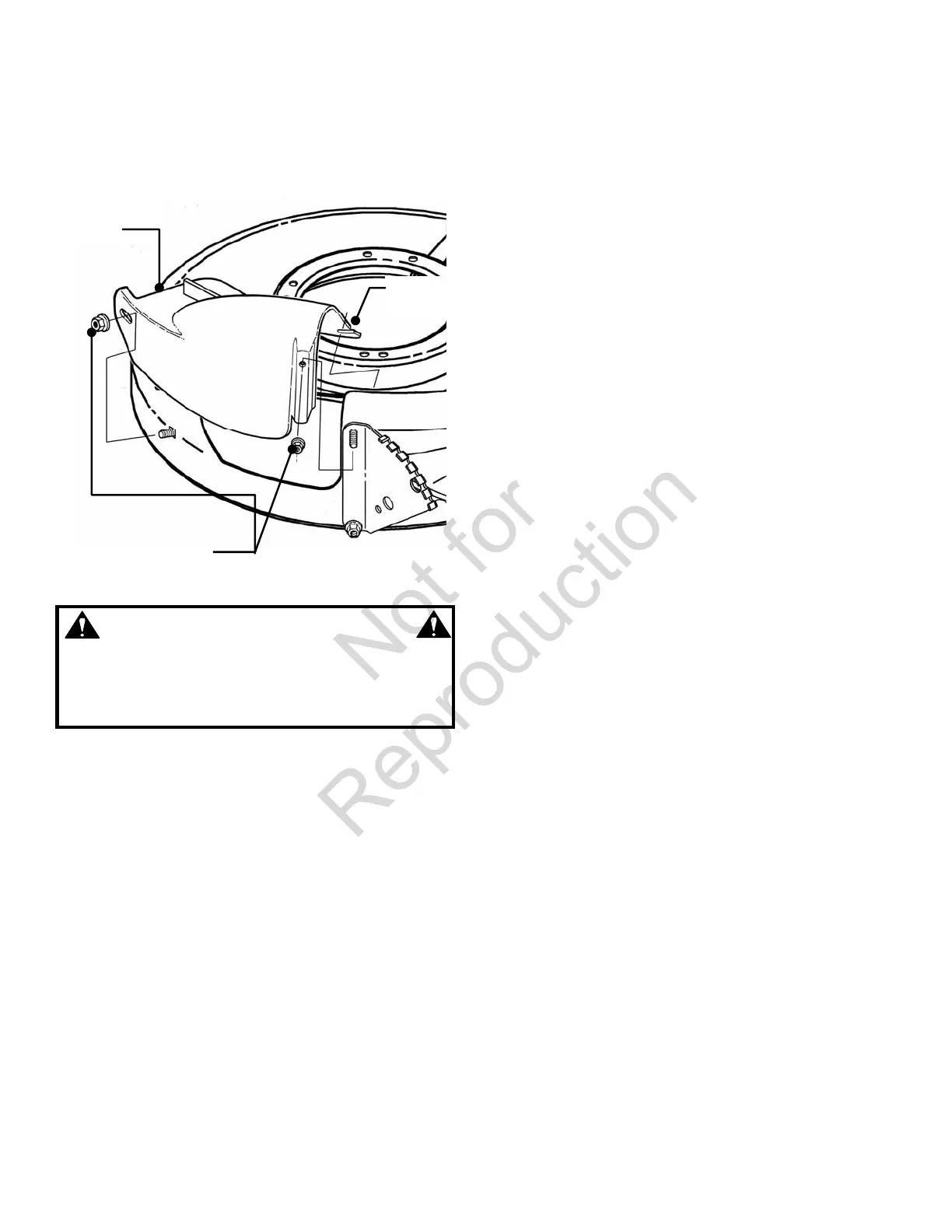

INSTALL RECYCLING
