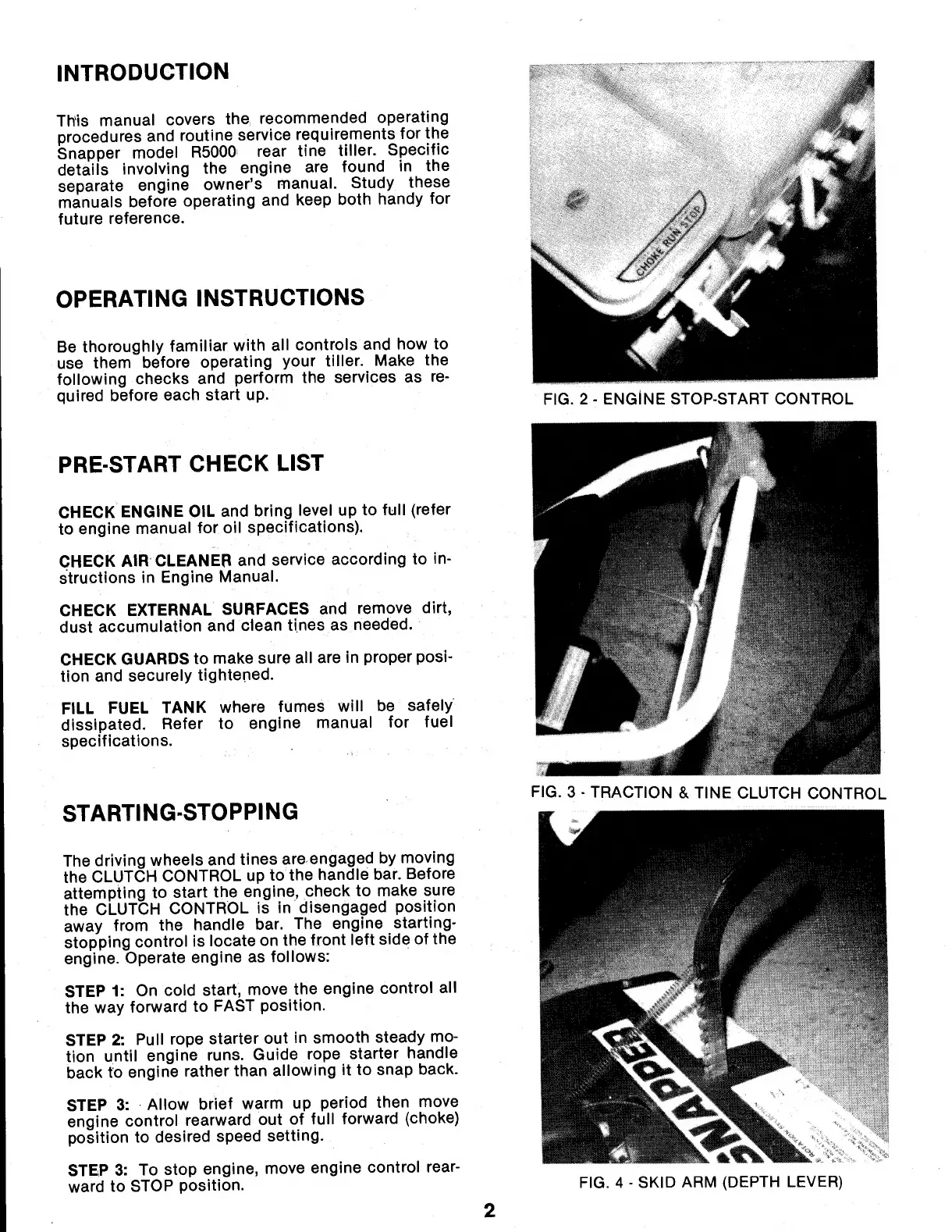

INTRODUCTION
This
manual
covers
the
recommended
operating
procedures
and
routine
service
requirements
for
the
Snapper
model
R5000
rear
tine
tilier.
Specific
detaiis
invoiving
the
engine
are
found
in
the
separate
engine
owner’s
manuai.
Study
these
manuais
before
operating
and
keep
both
handy
for
future
reference.
OPERATING
INSTRUCTIONS
Be
thoroughiy
familiar
with
ali
controis
and
how
to
use
them
before
operating
your
tiiler.
Make
the
foilowing
checks
and
perform
the
services
as
re¬
quired
before
each
start
up.
FIG.
2
-
ENGiNE
STOP-START
CONTROL
CHECK
ENGINE
OIL
and
bring
ievei
up
to
fuil
(refer
to
engine
manuai
for
oii
specifications).
CHECK
AIR
CLEANER
and
service
according
to
in¬
structions
in
Engine
Manuai.
CHECK
EXTERNAL
SURFACES
and
remove
dirt,
dust
accumuiation
and
clean
tines
as
needed.
CHECK
GUARDS
to
make
sure
all
are
in
proper
posi¬
tion
and
securely
tightened.
FILL
FUEL
TANK
where
fumes
will
be
safely
dissipated.
Refer
to
engine
manual
for
fuel
specifications.
The
driving
wheels
and
tines
are
engaged
by
moving
the
CLUTCH
CONTROL
up
to
the
handle
bar.
Before
attempting
to
start
the
engine,
check
to
make
sure
the
CLUTCH
CONTROL
is
in
disengaged
position
away
from
the
handle
bar.
The
engine
starting¬
stopping
control
is
locate
on
the
front
left
side
of
the
engine.
Operate
engine
as
follows:
STEP
1:
On
cold
start,
move
the
engine
control
all
the
way
forward
to
FAST
position.
STEP
2:
Pull
rope
starter
out
in
smooth
steady
mo¬
tion
until
engine
runs.
Guide
rope
starter
handle
back
to
engine
rather
than
allowing
it
to
snap
back.
PRE-START
CHECK
LIST
STARTING-STOPPING
STEP
3:
Allow
brief
warm
up
period
then
move
engine
control
rearward
out
of
full
forward
(choke)
position
to
desired
speed
setting.
STEP
3:
To
stop
engine,
move
engine
control
rear¬
ward
to
STOP
position.
FIG.
4
-
SKID
ARM
(DEPTH
LEVER)
FIG.
3
TRACTION
&
TINE
CLUTCH
CONTROL
