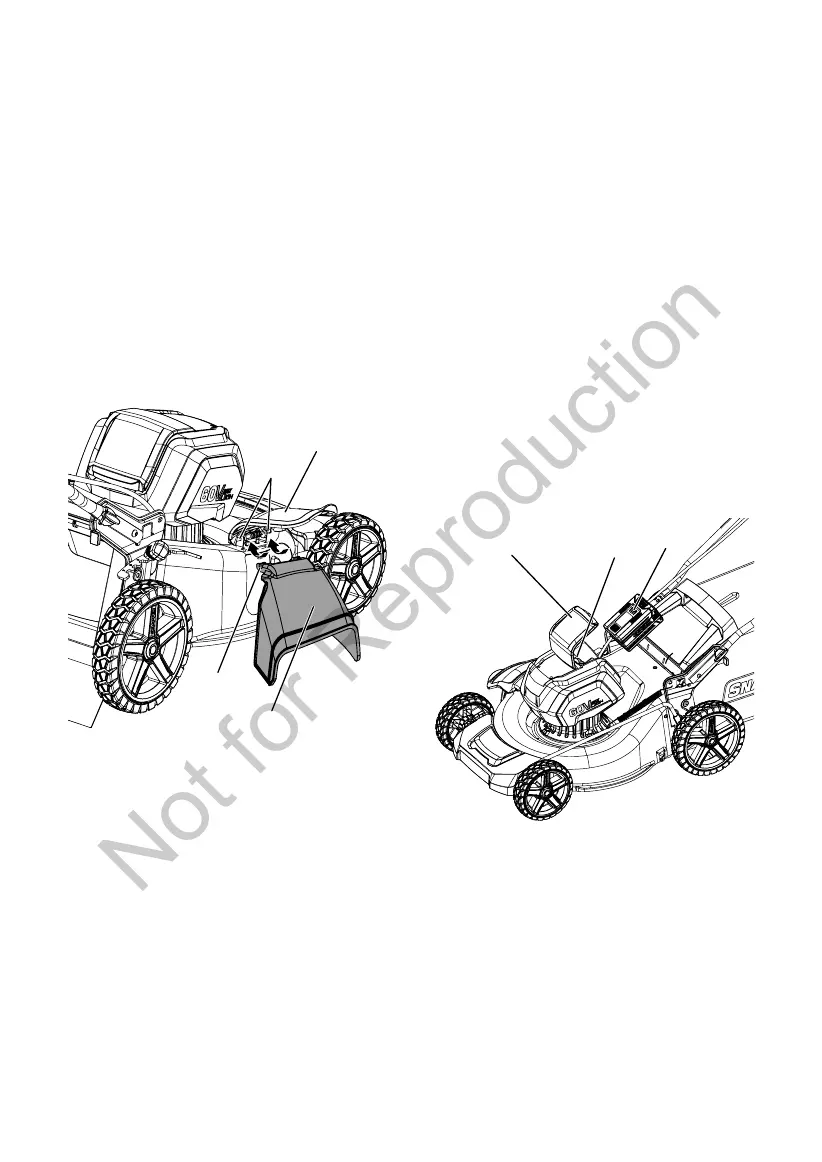

INSTALLING SIDE DISCHARGE
CHUTE
• Lift the side discharge cover (1).
• Align the grooves (2) on the discharge chute
(3) with the pins (4) on the underside of the
discharge cover (1).
• Lower the discharge chute until the hooks
on the mower deck are secured in the
openings in the discharge chute.
• Release the side discharge cover.
NOTE: When using side discharge, do not
install the the grass catcher bag. Ensure the
mulch plug is installed.
TO INSTALL BATTERY PACK
• Lift and hold up the battery door (1).
• Align the battery (2) with the mower’s
battery port.
• Make sure the battery release button (3)
snaps in place and that battery is fully
seated and secure in the mower before
beginning operation.
• If the machine is not going to be used
immediately, remove the battery.
• Close the door.
TO REMOVE BATTERY PACK
• Release the bail lever to stop the mower.
• Open the battery door.
• Press the battery release button (3) on the
mower. This will cause the battery to raise
out of the mower slightly.
• Remove battery from the mower.
1
4
2
3
1
2
3
