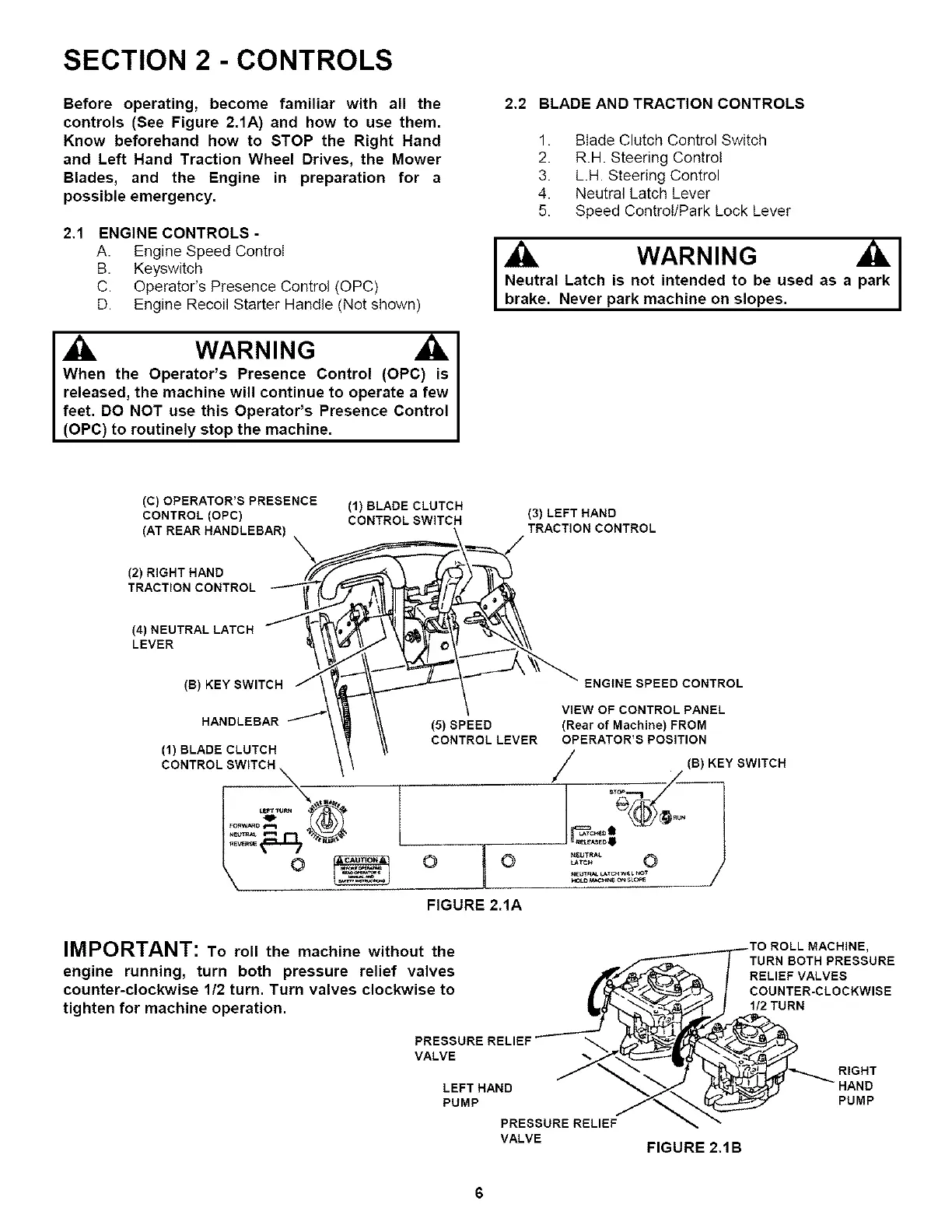

SECTION 2 - CONTROLS
Before operating, become familiar with all the
controls (See Figure 2.1A) and how to use them.
Know beforehand how to STOP the Right Hand
and Left Hand Traction Wheel Drives, the Mower
Blades, and the Engine in preparation for a
possible emergency.
2,1 ENGINE CONTROLS -
A. Engine Speed Control
B. Keyswitch
C. Operator's Presence Control (OPC)
D. Engine Recoil Starter Handle (Not shown)
WARNING
When the Operator's Presence Control (OPC) is
released, the machine will continue to operate a few
feet. DO NOT use this Operator's Presence Control
(OPC) to rout ney stop the roach ne.
2.2 BLADE AND TRACTION CONTROLS
1. Blade Clutch Control Switch
2. R.H. Steering Control
3. L.H. Steering Control
4. Neutral Latch Lever
5. Speed Control/Park Lock Lever
WARNING I
Neutral Latch is not intended to be used as a park
brake. Never park machine on slopes.
(C) OPERATOR'S PRESENCE
CONTROL(OPC)
(AT REAR HANDLEBAR)
(1)BLADE CLUTCH
CONTROLSWITCH
(3) LEFT HAND
TRACTION CONTROL
(2) RIGHT HAND
TRACTION CONTROL
(4) NEUTRALLATCH
LEVER
(B) KEY SWITCH
ENGINE SPEED CONTROL
HANDLEBAR
(1) BLADE CLUTCH
CONTROL SWITCH _,
n
(5) SPEED
CONTROLLEVER
©
VIEW OF CONTROL PANEL
(Rear of Machine) FROM
OPERATOR'S POSITION
I
(B) KEY SWITCH
FIGURE 2.1A
IMPORTANT: To roll the machine without the
engine running, turn both pressure relief valves
counter-clockwise 1/2 turn. Turn valves clockwise to
tighten for machine operation.
PRESSURE RELIEF
VALVE '_
LEFT HAND
PUMP
PRESSURE RELIEF
VALVE
FIGURE 2,1B
TURN BOTH PRESSURE
RELIEF VALVES
COUNTER-CLOCKWISE
II2TURN
RIGHT
HAND
PUMP
