SECTION 4 - SERVICE & LUBRICATION INFORMATION
TRACTION LEVERS
Lubricate each with 1-2 shots of
grease every 25 hours of operation.
Inspect switches for ease
of operation
HYDRAULIC OIL
Use SAE 1OW-3O Oth
.....========..........========..........=.
IN-LINE FUEL FILTER
(Not Illustrated)
Replace every 100
Before each mowing period, coat all wear ............................................
points, hinge points and sliding parts with
medium duty oil.
Change Oil Filter after first 5 hours of
operation. Change engine oil every 25
hours under normal conditions or daily
under extreme dusty conditions Change
Filter every 50 hours of operation
Foam Element
every 25 hours Service PAPER
ELEMENT every 100 hours.
HYDRAULIC FILTER
Change Hydraulic Oil and
after first 25 hours of operation.
Thereafter, change Hydraulic Oil
and Filter every 200 hours
(monthly).
Motor Hubs with Anti-Seize
Compound when replacing
Wheel Hubs
pressure before each mowing
period. Inflate to 12-15 psi.
CUTTER SHAFT
FSPINDLES
Lubricate each with two
(2) SHOTS of bearing
grease daily.
CUTTER DECK
BELT(S)
Check for cracks qr
wear.
DEFLECTOR
Lubricate hinge
points as required.
HYDRAULIC HOSES & FITTINGS
Check daily for leaks, cracks,
kinks, and other signs of wear.
MOWING DECK
At end of each mowing period,
remove grass and debris from
under mowing deck and above
rear SAFETY Shield.
FRONT WHEEL BUSHINGS
& CASTER SHAFTS
_,_ Lubricate with bearing grease
weekly
MOWER BLADES
Cbeck for tightness every 25
hours of operation. Tighten
capscrews to 75 foot pounds.
FRONT TIRES
Check tire pressure before
each mowing period. Inflate to
25 PSI.

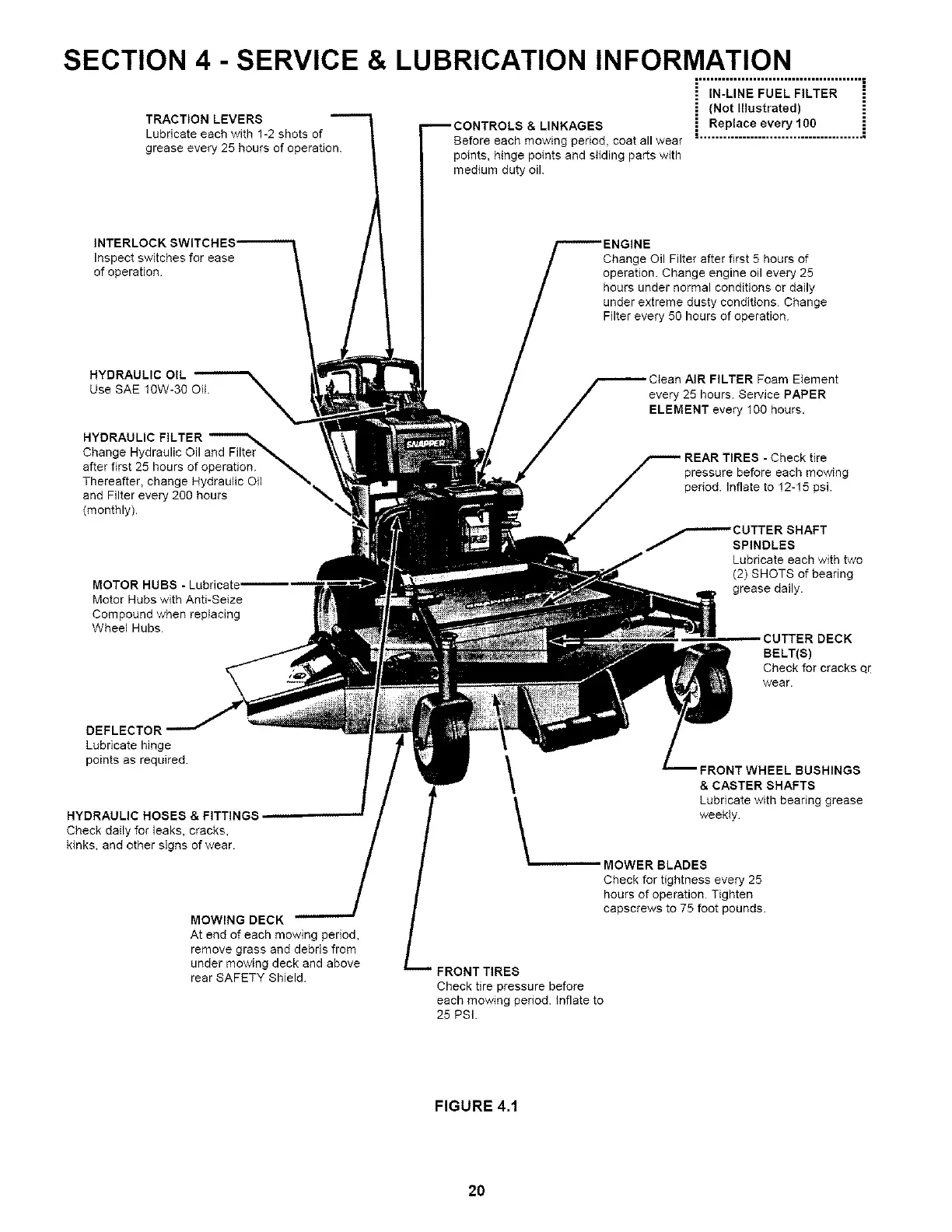

FIGURE 4.1
20
To Next Page
