5

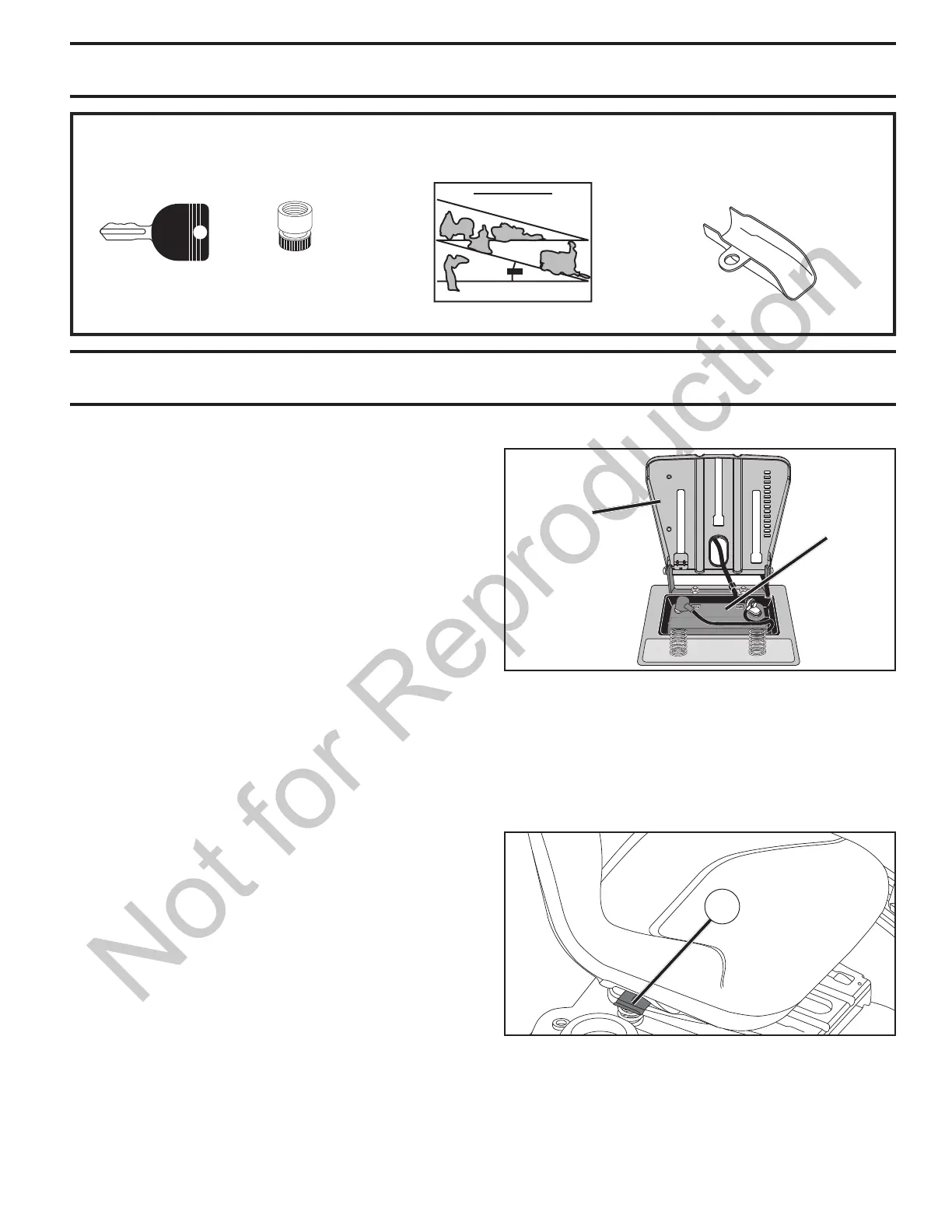

UNASSEMBLED PARTS
(1) Quick
Connect
Key(s)
Slope Sheet
Keys
Oil Drain Extension
ASSEMBLY
Fig. 2
CHECK BATTERY (See Fig. 2)
• Lift seat to raised position.
NOTE: If this battery is put into service after month and
year indicated on label (label is located between terminals)
charge battery for minimum of one hour at 6-10 amps. (See
"BATTERY" in the Maintenance section of this manual for
charging instructions.)
• For battery and battery cable installation see "REPLAC-
ING BATTERY" in the Service and Adjustments section
in this manual.
SEAT PAN
LABEL
A
Fig. 3
ADJUST SEAT (See Fig. 3)
• Sit in seat.
• Lift up adjustment lever (A) and slide seat until a com-
fortable position is reached which allows you to press
clutch/brake pedal all the way down.
• Release lever to lock seat in position.
TO REMOVE TRACTOR FROM CARTON
UNPACK CARTON
• Remove all accessible loose parts and parts cartons
from carton.
• Cut along dotted lines on all four panels of carton.
Remove end panels and lay side panels flat.
• Check for any additional loose parts or cartons and
remove.
BEFORE REMOVING TRACTOR FROM
SKID
TOOLS REQUIRED FOR ASSEMBLY
A socket wrench set will make assembly easier. Stan dard
wrench sizes are listed.
(1) 1/2" wrench Tire pressure gauge
(2) 7/16" wrenches Utility knife Pliers
When right or left hand is mentioned in this man ual, it means
when you are in the operating po si tion (seated be hind the
steer ing wheel).
Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes.
