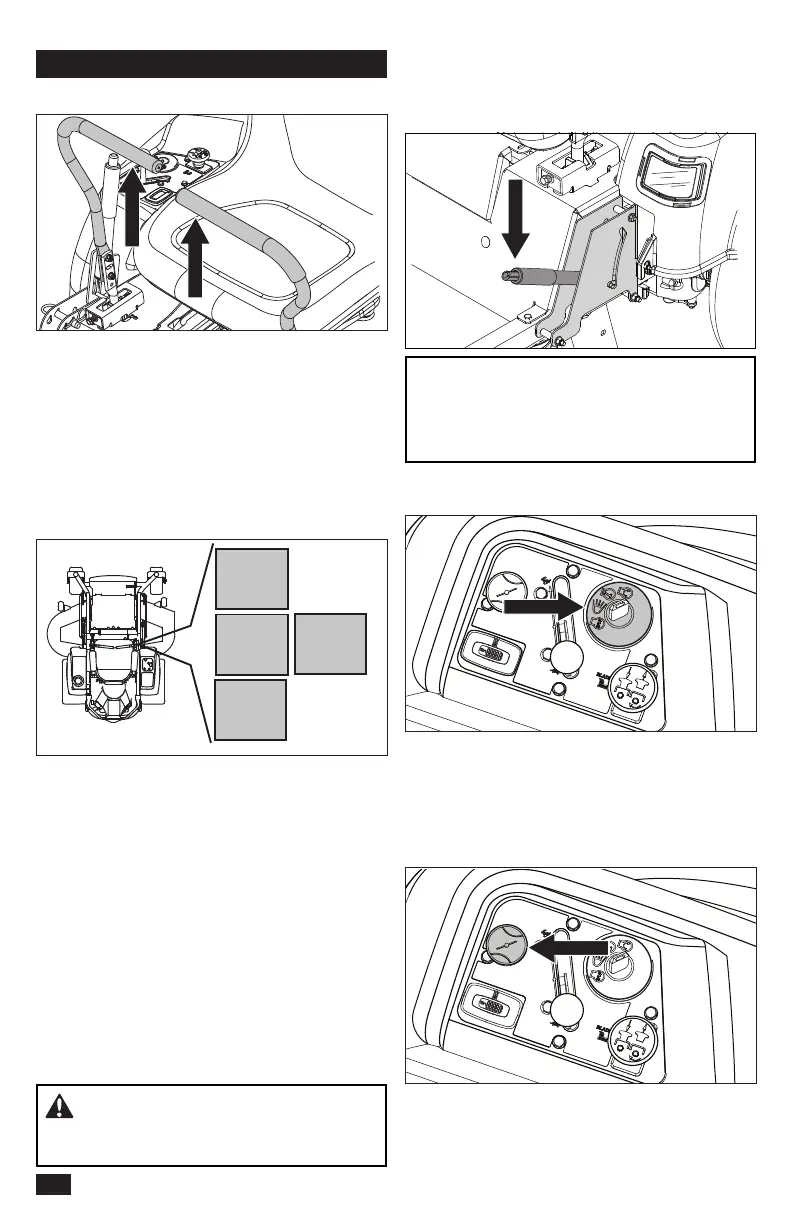

Park Brake
The park brake is found on the left of the
machine. Pull the lever backward to operate the
brake and push forward to release it.
IMPORTANT INFORMATION The machine
must stand still when engaging the park brake.
Always set the park brake before dismounting.
Release the park brake before moving the
mower.
Motion Control Levers
The machine’s speed and direction are
continuously variable using the two steering
controls. The steering controls can be moved
forward or backward about a neutral position.
There is a neutral position, which is locked if the
steering controls are moved out.
When both controls are in the neutral position (N),
the machine stands still. By equally moving both
controls forward or backward, the machine moves
in a straight line forward or backward.
Park
Brake
Forward
Neutral
Reverse
For example, to turn right while moving forward,
move the right control towards the neutral
position. The rotation of the right wheel is reduced
and the machine turns to the right.
Zero turn can be achieved by moving one control
backward (behind the neutral position) and
carefully moving the other steering control forward
from its neutral position. The rotation direction
when zero turning is determined by which
steering control is moved backward behind the
neutral position. If the left steering control is pulled
backward, the machine turns to the left. Use more
care when using this maneuver.
If the steering controls are in uneven positions
when standing still or do not t in the slots for
moving the controls out, they can be adjusted.
WARNING! The machine can turn very
rapidly if one steering control is moved much
further forward than the other.
Ignition Switch
The ignition switch is placed on the control panel
and is used to start and stop the engine. On
models equipped with headlights, turn the key
clockwise to ACCESSORY for headlight use.
Choke Conttrol
The choke is used for cold starts to provide the
engine with a richer fuel mixture. For cold starts,
pull the control up.
12
CONTROLS
