ASSEMBLY INSTRUCTIONS
INSTALLING THE UPPER HANDLE (See Figure 3)
• Align the mounting holes on the upper handle (1) and the lower handle (2). Insert the carriage
bolts (3) and use the knobs (4) to tighten them. Repeat the operation on the other side.

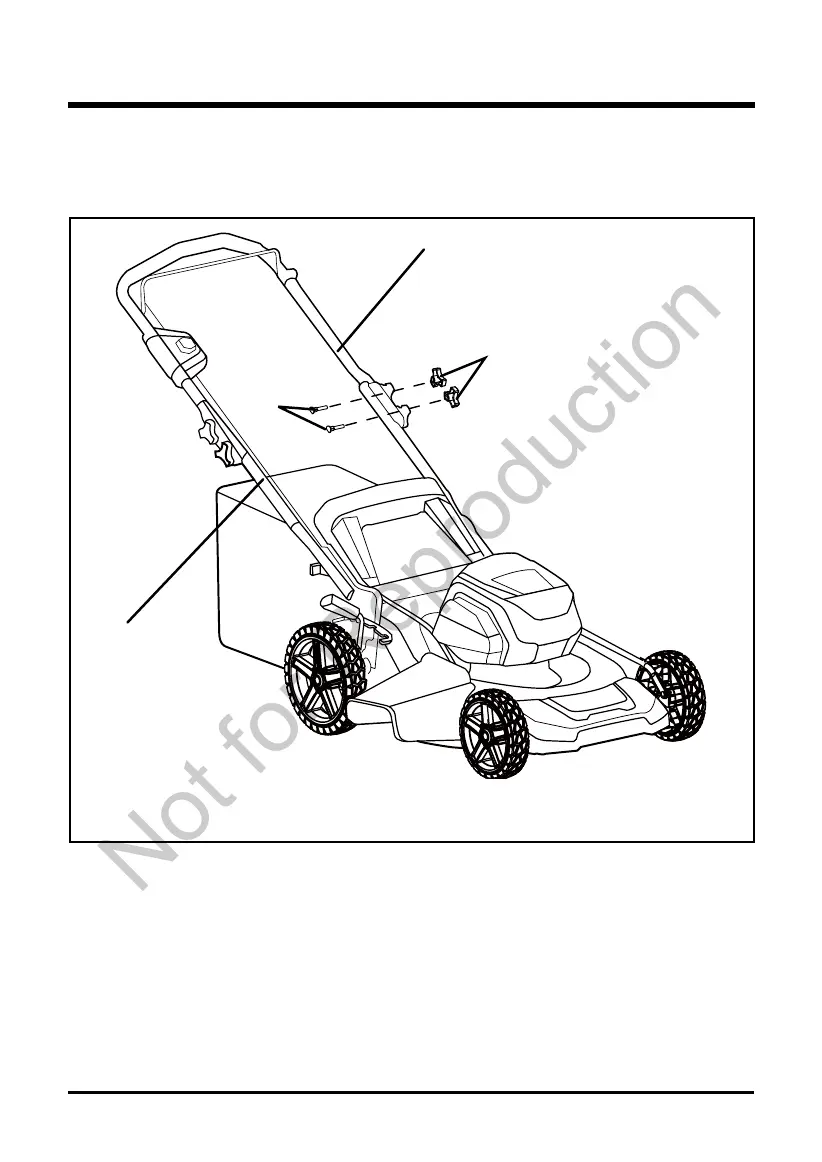

Fig. 3
(4) Knob
(3) Bolt
(1) Upper handle
(2) Lower handle
