Snapper Z-Mow / 150Z

Snapper Z-Mow / 150Z

36 pages

To Next Page

To Next Page

Loading...

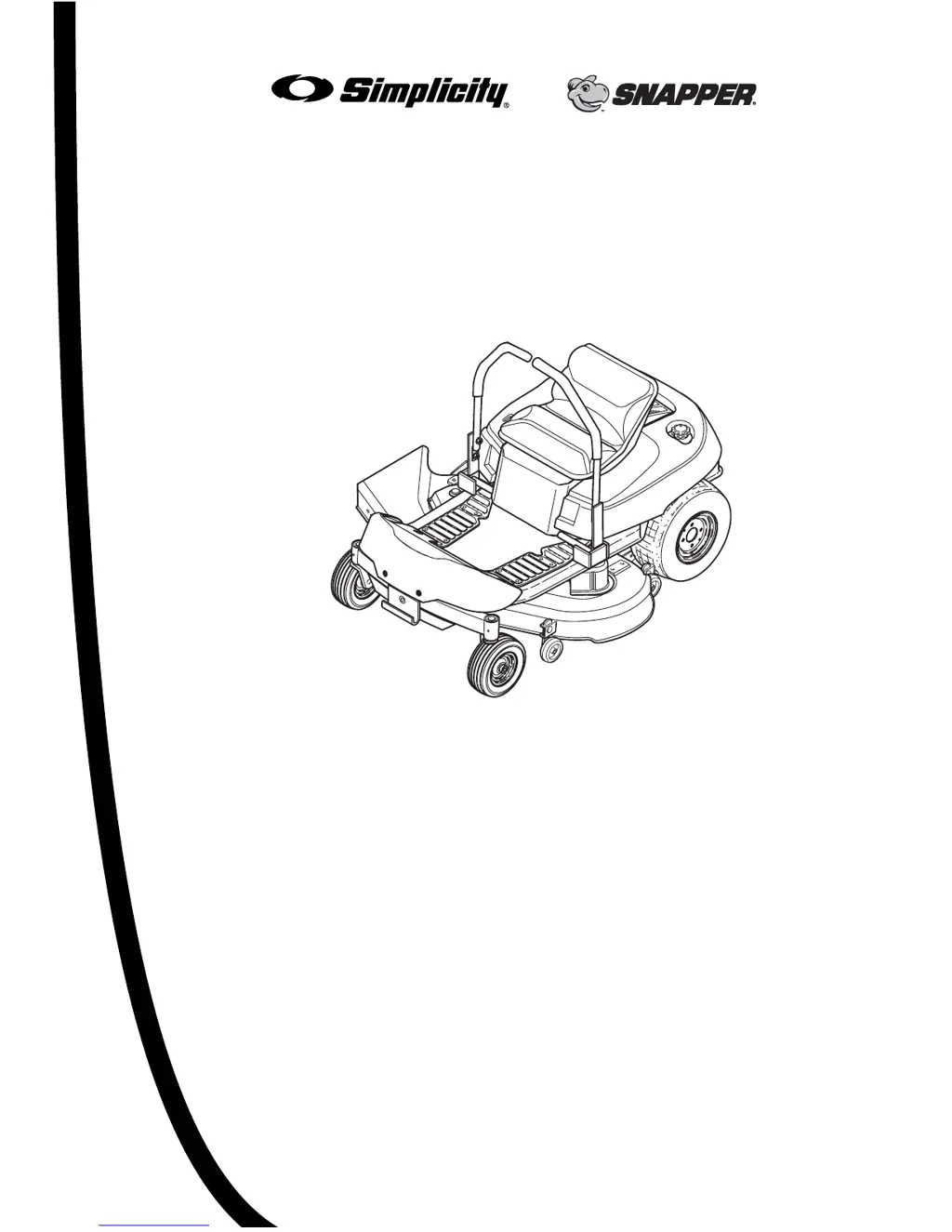

OPERATOR’S

MANUAL

Mfg. No. Description

2690611 Z-Mow, 18.5HP & 42” Mower (CE)

2690612 150Z, 18.5HP & 42” Mower (CE)

Z-Mow / 150Z Series

1733615

Revision 00

Rev. Date 11/2006

TP 100-4413-00-ZT-SN

Questions and Answers:

E
egoodwinAug 21, 2025
Why does my Snapper Z-Mow / 150Z Lawn Mower engine start hard or runs poorly?
- C
  Claire MorganAug 21, 2025
  If your Snapper Lawn Mower engine starts hard or runs poorly, try these solutions: * Service the pre-cleaner and/or replace the air filter element. * When cranking the engine, ensure the choke is in the CLOSED position. Once the engine starts, set the choke to OPEN. Note that a warm engine might not need choking. * Clean, gap, or replace the spark plug if it's faulty, fouled, or incorrectly gapped.
A
Alexis MatthewsAug 23, 2025
What to do if Snapper Z-Mow / 150Z Lawn Mower engine stalls easily with mower engaged?
- M
  Megan CollinsAug 23, 2025
  If your Snapper Lawn Mower engine stalls easily when the mower is engaged: * Always set the throttle to FULL when mowing. * Decrease ground speed. * Cut tall grass at maximum cutting height during the first pass. * Remove the mower deck and clean the underside. * Cut grass with the discharge pointing toward the previously cut area.
K
Kyle ByrdAug 26, 2025
What causes excessive oil consumption in a Snapper Lawn Mower?
- J
  Jennifer DrakeAug 26, 2025
  If your Snapper Lawn Mower engine is consuming oil excessively: * Clean the engine cooling fins, blower screen, and air cleaner if the engine is running too hot. * Consult the "Change Engine Oil" section for using the correct weight oil. * Drain excess oil if there is too much oil in the crankcase.
A
Andrew RiveraAug 28, 2025
Why does the rider drive belt slip on my Snapper Lawn Mower?
- G
  gmendozaAug 28, 2025
  If your Snapper Lawn Mower rider drive belt slips: * Clean pulleys or the belt if they are greasy or oily. * Replace the belt if it's stretched or worn.
P
Patrick WeissAug 30, 2025
How to stop excessive mower vibration on Snapper Z-Mow / 150Z Lawn Mower?
- D
  Debra AlvarezAug 30, 2025
  If your Snapper Lawn Mower has excessive mower vibration: * Tighten blade mounting nuts to 80-90 ft. lbs. (108-122 N.m.). * Check and replace bent mower blades, arbors, or pulleys as needed. * Replace or balance mower blades. * Reinstall the belt correctly. * Repair or replace a broken or improperly attached idler pulley spring. * Replace a broken mower drive belt.
M
Marie BennettSep 1, 2025
Why is the engine exhaust black on my Snapper Lawn Mower?
- A
  Ashley SmithSep 1, 2025
  If the engine exhaust of your Snapper Lawn Mower is black: * Service or replace the dirty air filter or precleaner, or both, as required. * Set the choke to OPEN as soon as the engine starts.
M
Michelle OchoaSep 3, 2025
Why is the mower cut rough looking with my Snapper Lawn Mower?
- C
  Carolyn SchultzSep 4, 2025
  If your Snapper Lawn Mower cut is rough looking: * Always set the throttle to FULL when mowing to ensure the engine speed is adequate. * Decrease ground speed. * Sharpen or replace dull blades. * Clean or replace the mower drive belt if it is oily or worn. * Ensure blades are properly fastened to arbors.
M
martinlisaSep 6, 2025
Why does my Snapper Z-Mow / 150Z Lawn Mower engine knock?
- R
  Richard CamposSep 6, 2025
  If your Snapper Lawn Mower engine knocks, check the following: * Check and add oil as required if the oil level is low. * Consult the "Change Engine Oil" section in the Maintenance Section for using the correct grade of oil.
T
Tanya ThomasSep 8, 2025
What to do if Snapper Z-Mow / 150Z engine runs, but rider will not drive?
- D
  Daniel MitchellSep 9, 2025
  If your Snapper Lawn Mower runs, but the rider will not drive: * Move the transmission release levers to the DRIVE positions. * Clean or replace the drive belt as necessary if it slips. * Replace the drive belt if it is broken. * Contact an authorized dealer if the parking brake is not fully released.
T
Trevor BrownSep 12, 2025
Why does my Snapper Lawn Mower steer or handle poorly?
- B
  blackamandaSep 12, 2025
  If your Snapper Lawn Mower steers or handles poorly: * Consult the Maintenance Section for proper tire inflation. * Check and tighten any loose connections in the steering linkage.

Snapper Z-Mow / 150Z Specifications

General

Deck Material	Steel
Engine Type	Briggs & Stratton
Drive System	Rear-wheel drive
Mulching Capability	Yes
Bagging Capability	Yes
Warranty	2 years limited

Summary

SAFETY INFORMATION

GENERAL OPERATION

Instructions for safe operation of the unit.

SLOPE OPERATION

Guidelines for safe operation on slopes.

CHILDREN SAFETY

Safety precautions regarding children.

PRE-OPERATION CHECKS

PRE-OPERATION STEPS

Steps to perform before starting the unit.

FUEL RECOMMENDATIONS

Types of gasoline and fuel additives recommended.

OPERATION AND DRIVING

CONTROL FUNCTIONS

Brief description of individual controls.

MOWING PROCEDURE

Procedure for operating the mower.

DRIVING PRACTICE

Guidance on learning to operate the rider.

MAINTENANCE AND SERVICE

MAINTENANCE SCHEDULE

Schedules for rider and engine maintenance.

LUBRICATION

Lubrication points and intervals for the unit.

MOWER BLADE SERVICE

How to clean the deck and service mower blades.

ENGINE OIL AND FILTER SERVICE

Procedures for checking and changing engine oil and filter.

MOWER DECK LEVELING

Procedures for leveling the mower deck.

STORAGE AND TROUBLESHOOTING

STORAGE GUIDELINES

Instructions for storing the unit for the off-season.

TROUBLESHOOTING

Guide to common problems, causes, and remedies.

SPECIFICATIONS
