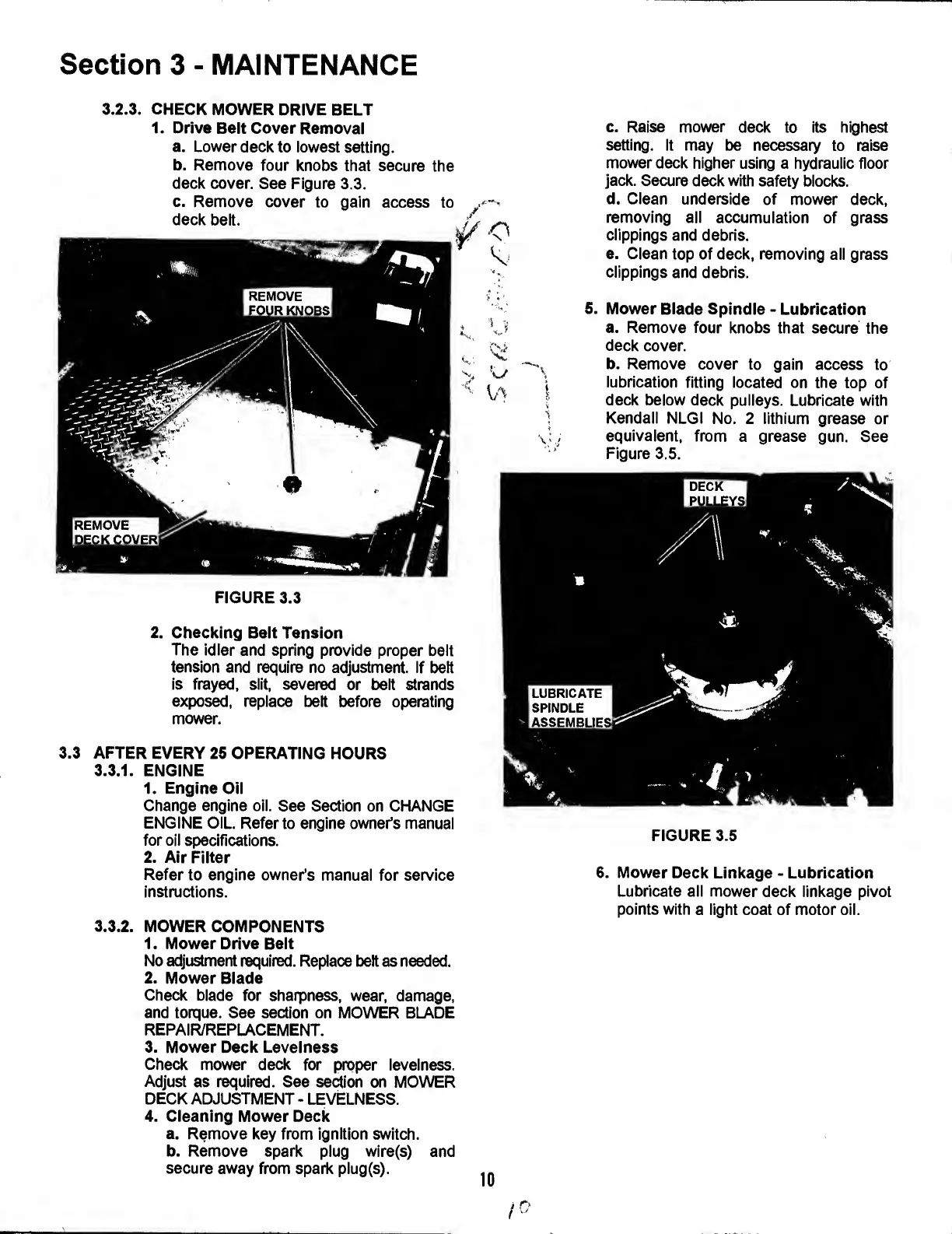

Snapper ZF2200K Safety Instructions And Operator's Manual

Section 3 - MAINTENANCE
3.2.3. CHECK MOWER DRIVE BELT
1. Drive Beit Cover Removal
a. Lower deck to lowest setting.
b. Remove four knobs that secure the
deck cover. See Figure 3.3.
c. Remove cover to gain access to ,.*-'**S
deck belt. /. ^
4/ <\
,r v
FIGURE 3.3
2. C hecking Belt Tension
The idler and spring provide proper belt
tension and require no adjustment. If belt
is frayed, slit, severed or belt strands
exposed, replace belt before operating
mower.
3.3 AFTER EVERY 25 OPERATING HOURS
3.3.1. ENGINE
1. Engine Oil
Change engine oil. See Section on CHANGE
ENGINE OIL. Refer to engine owner's manual
for oil specifications.
2. Air Filter
Refer to engine owner’s manual for service
instructions.
3.3.2. MOWER COMPONENTS
1. Mower Drive Belt
No adjustment required. Replace belt as needed.
2. Mower Blade
Check blade for sharpness, wear, damage,
and torque. See section on MOWER BLADE
REPAIR/REPLACEMENT.
3. Mower Deck Levelness
Check mower deck for proper levelness.
Adjust as required. See section on MOWER
DECK ADJUSTMENT - LEVELNESS.
4. Cleaning Mower Deck
a. Remove key from ignition switch.
b. Remove spark plug wire(s) and
secure away from spark plug(s).
c. Raise mower deck to its highest
setting. It may be necessary to raise
mower deck higher using a hydraulic floor
jack. Secure deck with safety blocks.
d. Clean underside of mower deck,
removing all accumulation of grass
clippings and debris.
e. Clean top of deck, removing all grass
clippings and debris.
5. M ower Blade Spindle - Lubrication
a. Remove four knobs that secure the
deck cover.
b. Remove cover to gain access to
lubrication fitting located on the top of
deck below deck pulleys. Lubricate with
Kendall NLGI No. 2 lithium grease or
equivalent, from a grease gun. See
Figure 3.5.
FIGURE 3.5
6. M ower Deck Linkage - Lubrication
Lubricate all mower deck linkage pivot
points with a light coat of motor oil.
r*
10
