Snapper ZF2200K Safety Instructions And Operator's Manual

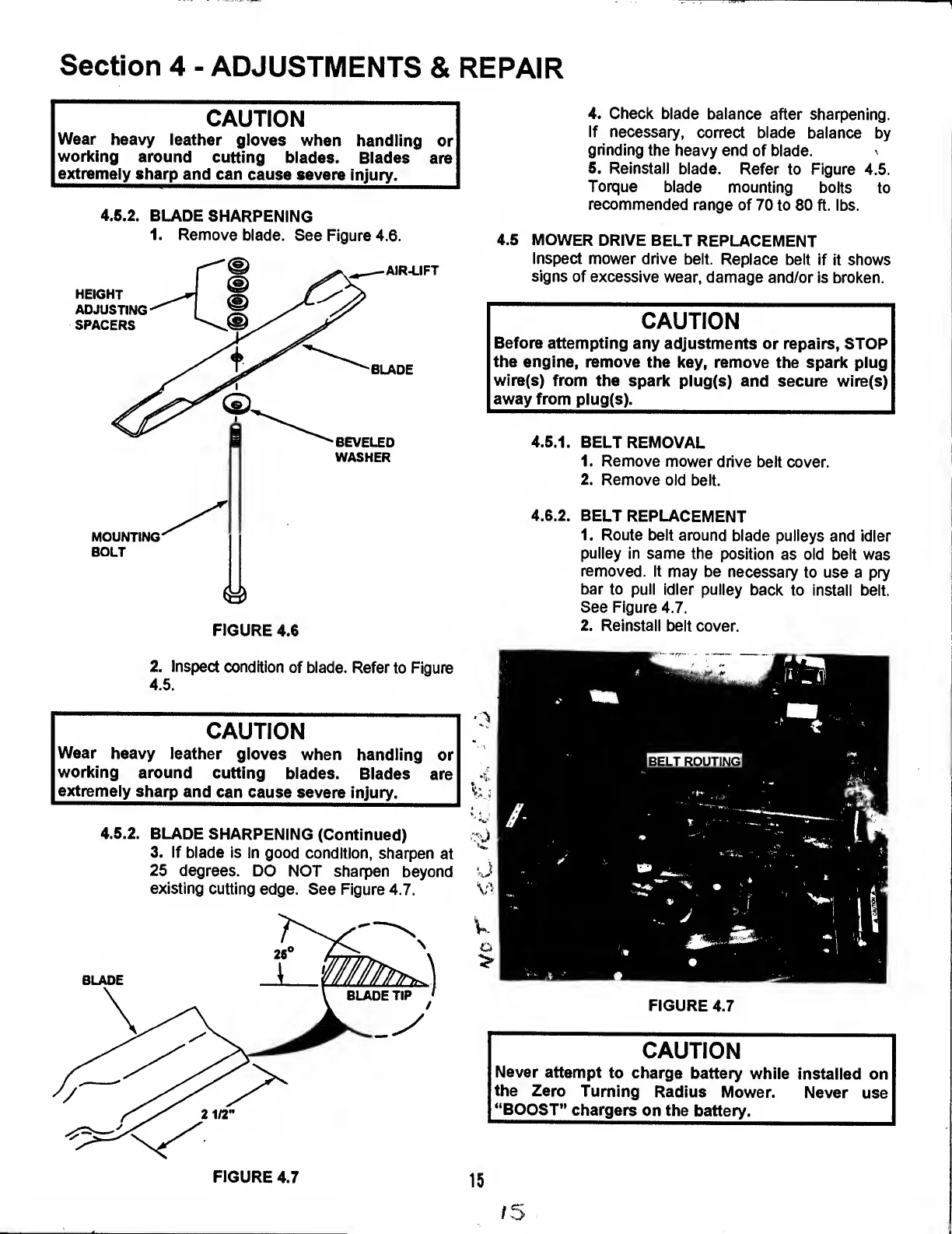

Section 4 - ADJUSTMENTS & REPAIR
CAUTION
Wear heavy leather gloves when handling or
working around cutting blades. Blades are
extremely sharp and can cause severe injury._
4.5.2. B LADE SHARPENING
1. R emove blade. See Figure 4.6.
4. Check blade balance after sharpening.
If necessary, correct blade balance by
grinding the heavy end of blade. v
5. Reinstall blade. Refer to Figure 4.5.
Torque blade mounting bolts to
recommended range of 70 to 80 ft. lbs.
4.5 MOWER DRIVE BELT REPLACEMENT
Inspect mower drive belt. Replace belt if it shows
signs of excessive wear, damage and/or is broken.
CAUTION
Before attempting any adjustments or repairs, STOP
the engine, remove the key, remove the spark plug
wire(s) from the spark plug(s) and secure wire(s)
away from plug(s).
4.5.1. BELT REMOVAL
1. Remove mower drive belt cover.
2. Remove old belt.
4.6.2. BELT REPLACEMENT
1. Route belt around blade pulleys and idler
pulley in same the position as old belt was
removed. It may be necessary to use a pry
bar to pull idler pulley back to install belt.
See Figure 4.7.
2. Reinstall belt cover.
2. Inspect condition of blade. Refer to Figure
4.5.
CAUTION
Wear heavy leather gloves when handling or
working around cutting blades. Blades are
extremely sharp and can cause severe injury.
4.5.2. B LADE SHARPENING (Continued)
3. I f blade is in good condition, sharpen at
25 degrees. DO NOT sharpen beyond
existing cutting edge. See Figure 4.7.
CAUTION
Never attempt to charge battery while installed on
the Zero Turning Radius Mower. Never use
“BOOST” chargers on the battery.
15
