Snom 320 - Foreword

3
3

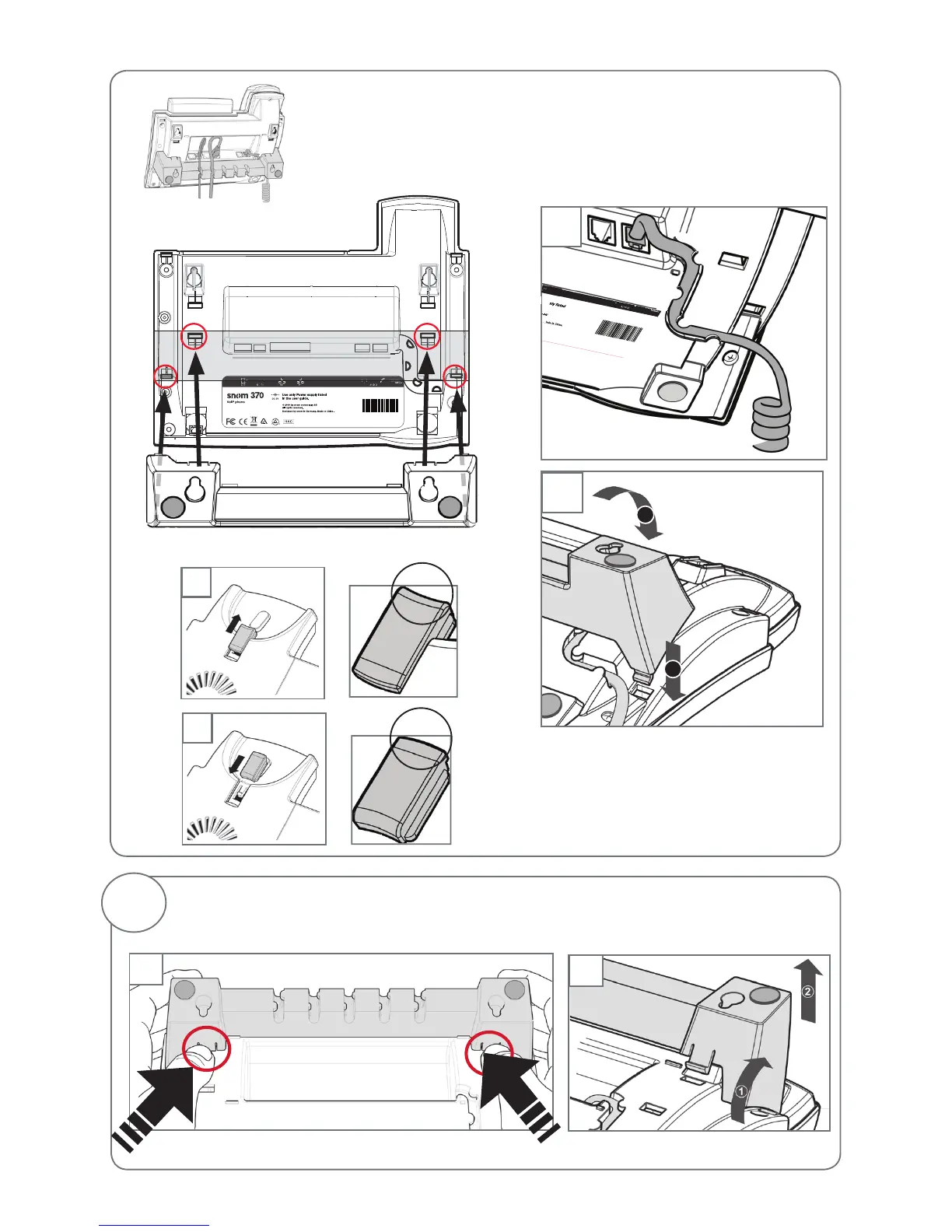

• for wall mounting
• für die Wandbefestigung
• pour l'installation sur le mur
• para el montaje en pared
• per il montaggio a parete
• para montagem na parede
N14647
N14647
XXXYY88888899999
0 0 0 4 1 32 A 0 0 4 4
2
1
2
4
Detaching the Footstand - Fuß abmontieren - Démonter le pied -
Desmontar el soporte - Smantellare il supporto - Destacandar o Suporte
2.
1.
C
1
snom technical datasheet (P-DIN_A4) Version 1.2.1. /// Nov 2009
company snom technology AG
revision PS No. ERP No. scale
total
pages page
model snom 370
5 4.12. 00001438 1:1 1
1
product LABEL TYPE
prepared by Martin Taube
filename type_label_snom370_rev5.pdf
checked by
created 2007-10-09
approved by
last saved 2009-11-04
status
139.5
39.5
N14647
XXXYY88888899999
0 0 0 4 1 3 2 A 00 4 4
A
B
1. Bar code System: Code 128
2. Material: white ART paper
3. Black printing / SIZE: 139.5(W)X39.5(H)mm
4. Tolerence: ±0.2mm
6. Print content:
A.
B. Bar code: MAC Address same as mainboard label
7. attach onto the backside of the phone
Serial Number (5 digits)
DDMMYY day, month, year (only last two digits)
Product of factory abbreviation - provided by snom (2 digits)
Country of Origin - ISO 3166-1 alpha-3 (3 digits)
