snom technology AG • 7
[ SNOM 370 QUICK INSTALLATION V 1.0 ]
1
keypad available for the snom 370, you must place phone and
keypad on an even, horizontal surface, as described above.
1
Turn the phone upside down (Fig. 3). Please, ensure that
you do not damage the display and/or its hinge and that
you do not drop the receiver. You may want to hold the
phone in your lap or have a second person hold it.

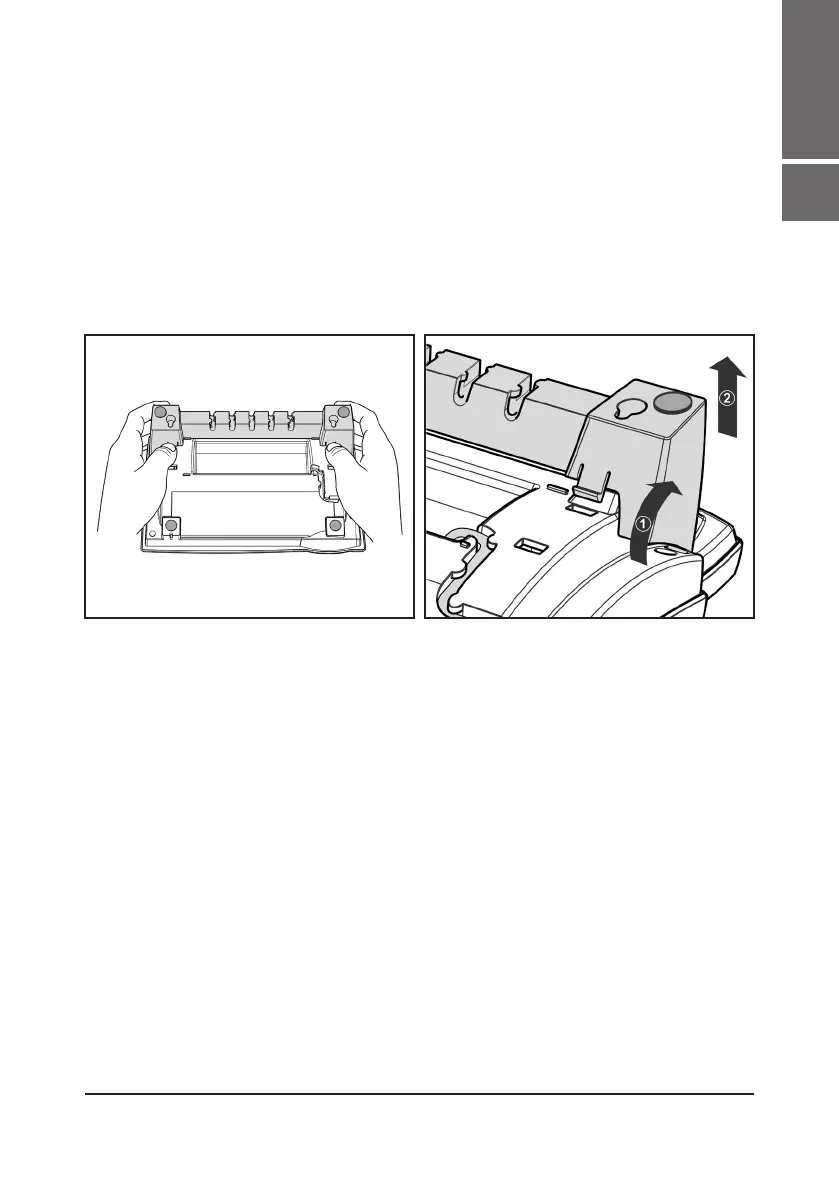

Fig. 3 Fig. 4
2
Lightly press the snap-ts of the footstand inwards
(Fig. 3) and, at the same time, tilt the footstand
backwards and lift it from its anchorage in the mounting
holes (Fig. 4).
3
Rotate the footstand 180° around its vertical axis.
4
Make sure that the handset cord has been clipped
correctly into the groove on the bottom shell of the
phone, as shown in Figs. 4 and 6. Failure to clip the
cord into the groove will result in damage to the cord
when the footstand is attached in the position for wall
mounting.
English
