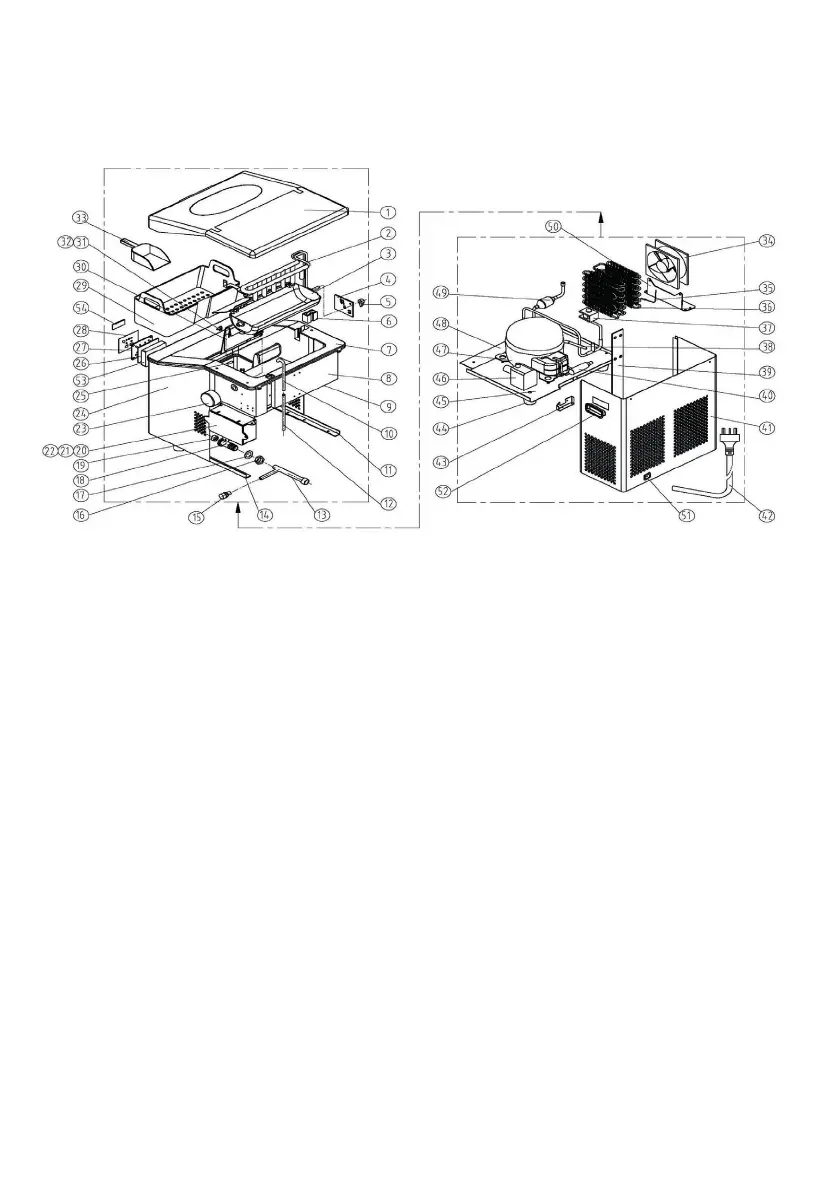

ZBC-15 LIST OF PARTS
1 Lid
Back Lid
Back Lid Inner Liner
Lid Window
Front Lid Inner (With Window)
Front Lid Liner Fluoroscope
Back Lid
2 Evaporator
3 Ice Spoon
Water Box
Plastic Hinge
Water Box Of A Shaft
Hinge Sleeve
Water Box Bushing
4 Micro Switch
Limit Switch Plate
Micro Switch Connecting Cable
5 Block
6 Inner Liner Cover
7 Inner Liner
8 Inner Liner Foaming
9 Under Panel
10 Water Inlet Pipe
11 Left Corner Supporting Piece
12 Silicone Straight Tube
13 Silica T Pipe For Water Drainage
14 Right Corner Supporting Piece
15 Water Outlet Valve
Scew Nut
Screw Cap
T Plug
16 Nut For Water Outlet Valve
17 Seal Washer For Water Outlet Pipe
18 Drainage Connector
19 Filter Screen
20 Box For Main Control Board
21 Cover Of Box For Main Control Board
22 Main Control Board
23 Turning Motor
24 Front Panel
25 Limit Pole
26 Operation Board
27 Fixer For Operation Board
28 Operation Board Sticker
29 Ice Storage Basket
30 Draining Rack
31 Fixer Of Ice Level Sensor
32 Ice Level Sensor
Ice Filled Probe Connector
33 Ice Scoop
34 Condenser Fan
35 Condenser Temp Sensor
36 Condenser
37 Magnetic Valve
38 Process Tube
39 Back Reinforce Panel
40 Filter
41 Back Panel
42 Power Cord
43 Fixer For Power Cord
44 Feet
46 Water Pump
47 Compressor
48 Bottom Panel
49 Suction Tube
50 Condensing Fan Fixing Plate
51 Ac Socket
ZB-15 Socket Cable (South Africa)
52 Cabinet Handle
53 Display Panel Waterproof Housing (Large)
54 Si Plastic Trademark (Rectangular)
