Machine Preparation
Section
2.1
A38E Work Platform Page 7
2.1 Preparation for use
A CAUTION A
Read, understand and follow all operating
instructions before attempting to operate the
machine.
2.2 Preparation for Shipment
1. Lubricate machine per lubrication instructions
in Section 4.4, Maintenance.
2. Fully lower the platform and make sure the
machine is stowed securely.
3. Check that the hydraulic oil level is adequate
and that it is not over lled.
Check that the batteries are charged and disconnect
the batteries using the Battery Disconnect Plug. This
prevents excessive power drain prior to next using
the machine.
2.3 Forklifting the Work Platform
A CAUTION A
The A38E is not designed to be consistently
forklifted. This operation can be used for very
short distances only.
Forklift from the side by lifting under the chassis
modules as per Figure 2-1. When lifting the A38E
with a forklift, great care should be taken not to
damage the right or left hand modules as these
contain sensitive equipment.
2.4 Lifting the Work Platform
A CAUTION A
See specications (Section 1.2) for the weight
of the work platform and be certain that lifting
apparatus is of adequate capacity to lift the
platform.
The A38E may be lifted by an overhead hoist/crane
in the following manner:
Four lifting straps capable of safely supporting the
total weight of the A38E ( (3,770 Kg /7,430 lbs CE
Version & 4,010 Kg /8,840 lbs ANSI Version) and at
least 250 cm (8 ft.) long are required. This minimum
length is important to ensure the correct lifting angle.
The straps should be positioned at the Lifting/Tie
Down Lugs as shown in Figure 2-1. Great care must
be taken to avoid damage to any of the components
of the machine.
2.5 Transport by Truck
The A38E is normally carried upon a suitably
rated transportation vehicle. Because of the high
gradeability of the A38E it will be capable of driving
directly on to most vehicles. If however the loading
slope is greater than the gradeability or the batteries
have been depleted sufciently a winch should
be used. The procedure when using a winch is to
disengage the gearbox from the drive wheels using
the Allen key release, and then winch the machine
on to the vehicle in its freewheel state.
Refer to Section 2.6 which follows.
FORKLIFT
HERE
Rear Lifting /
Tie-down Lug
Front Lifting /
Tie-down Lug

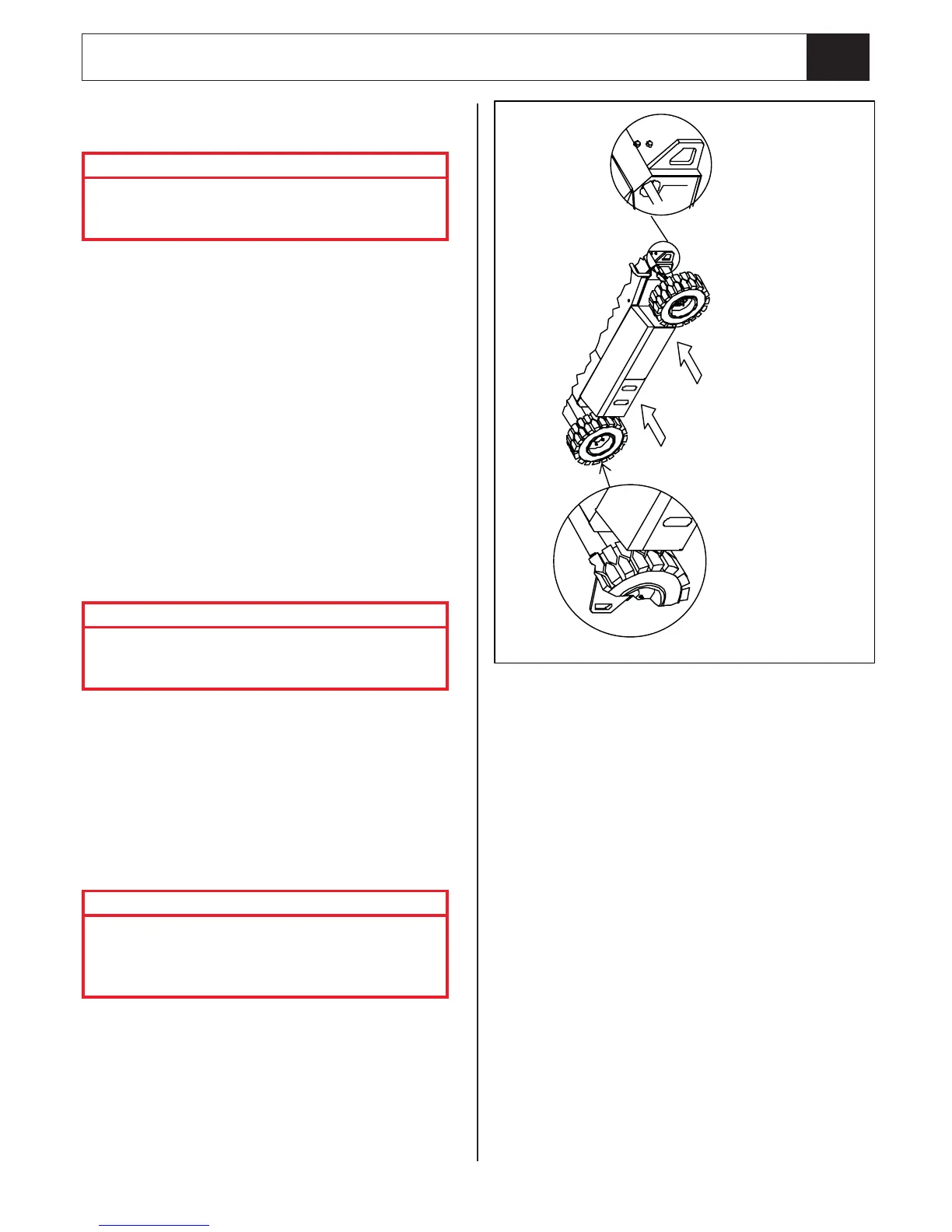

Figure 2-1: Forklifting & Lifting the A38E
