MAINTENANCE
REPLACING THE SCRAPER
The scraper is located at the base of the snowthrower beneath the rotor housing.

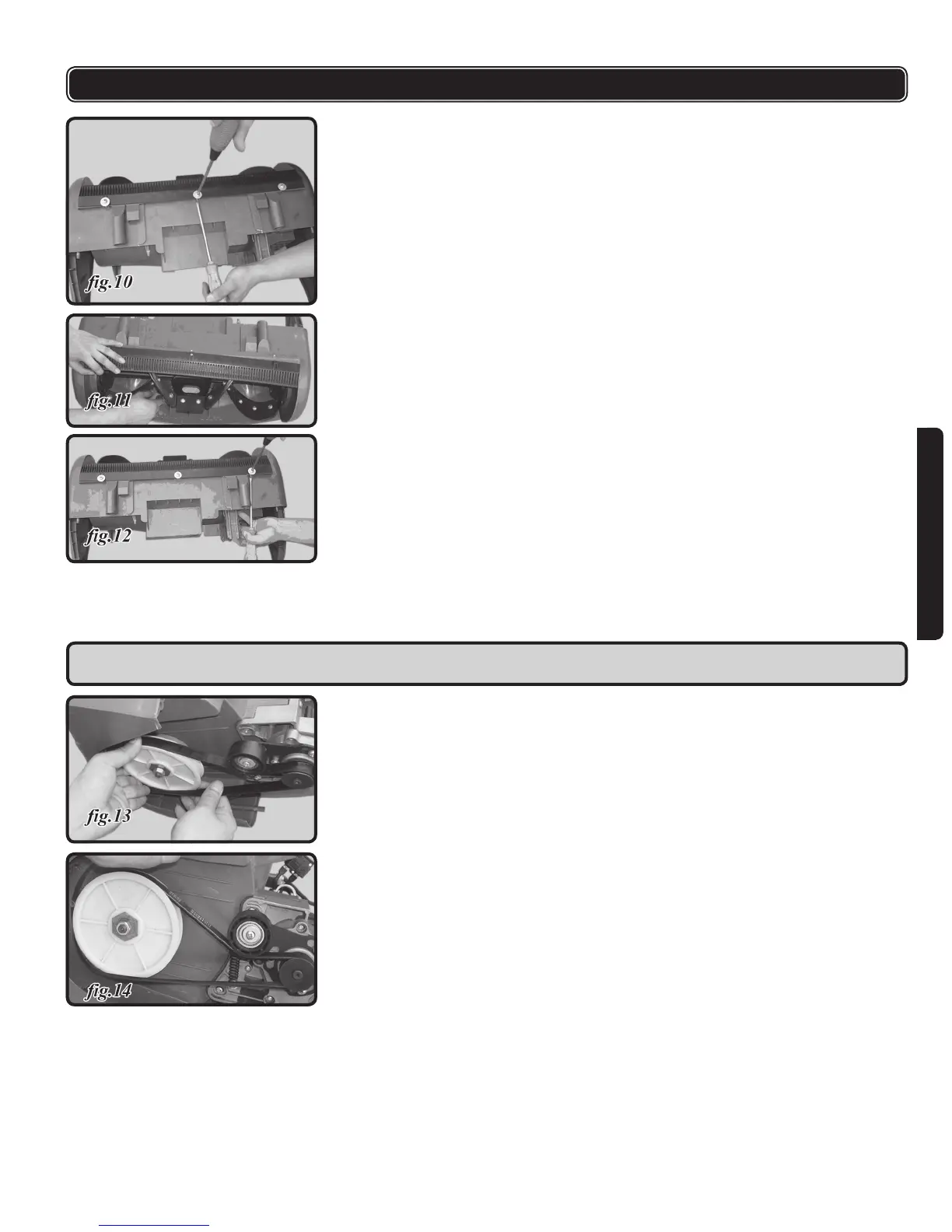

1. Detach the worn scraper from the snowthrower by removing the 3 screws that
hold it in place (g.10).
2. Install the new scraper (g.11) and fasten it securely to the snowthrower with 3
screws (g.12).
REPLACING THE DRIVE BELT
NOTE: Determine the left and right sides of the snowthrower by standing behind
the unit in the normal operating position.
1. Remove the screws from the left panel of the snowthrower.
2. Lift the belt tensioner and roll the belt off the big pulley (g.13).
3. Replace the belt by following instructions in reverse order (g.14).
