APPENDIX D: DECODE ZONE 103
APPENDIX D
D
ECODE ZONE

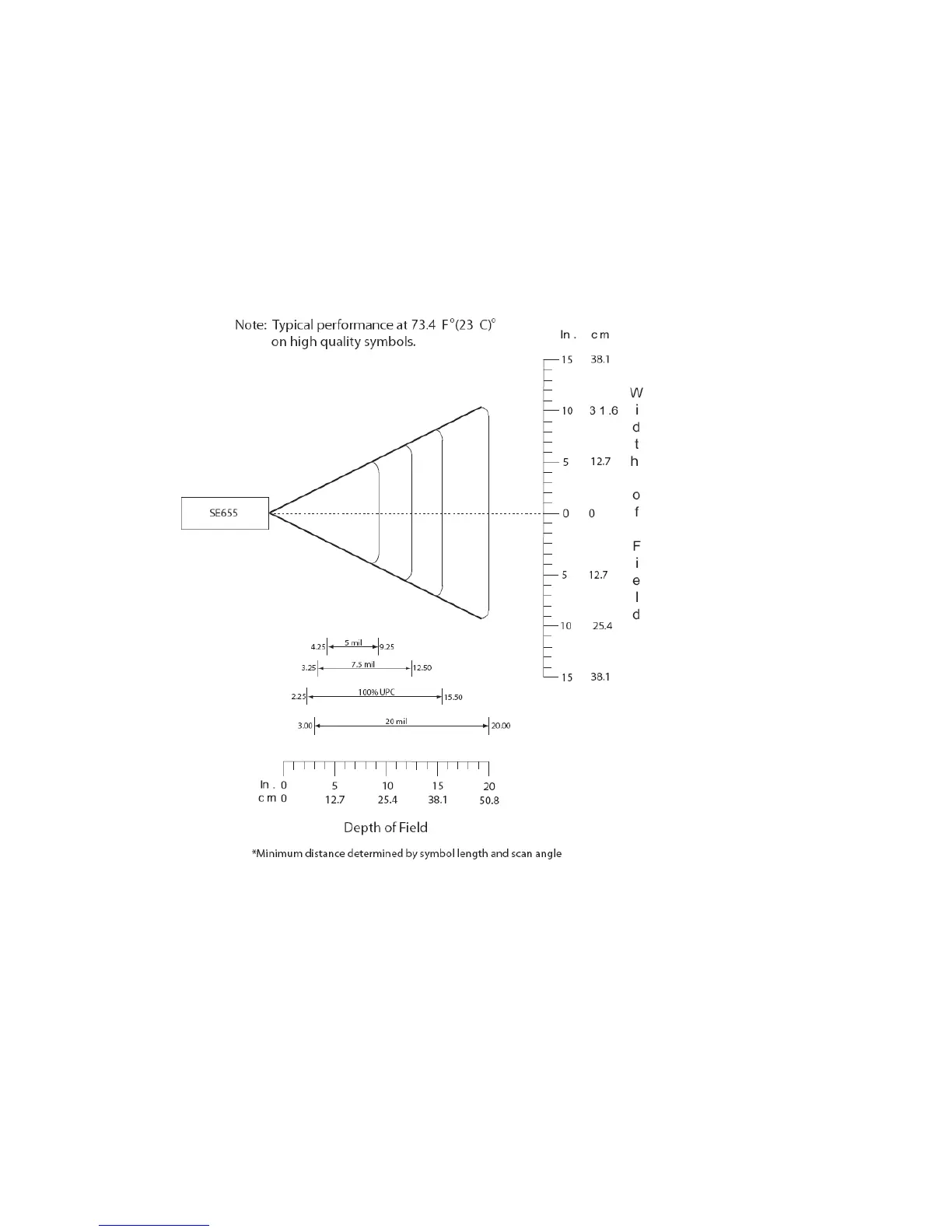

The decode zone for the CHS 7Ci, 7Di and 7DiRx is shown below. The minimum element width (“X
Dimension” or barcode “size”) is the width in thousandths of an inch (mils) of the narrowest
element (bar or space) in the symbol. The figures shown are the typical scanning distances (depths
of field) for selected barcode sizes. The maximum usable length of a barcode symbol (Width of
Field) at any given range is also shown.
