HARDWARE FEATURES

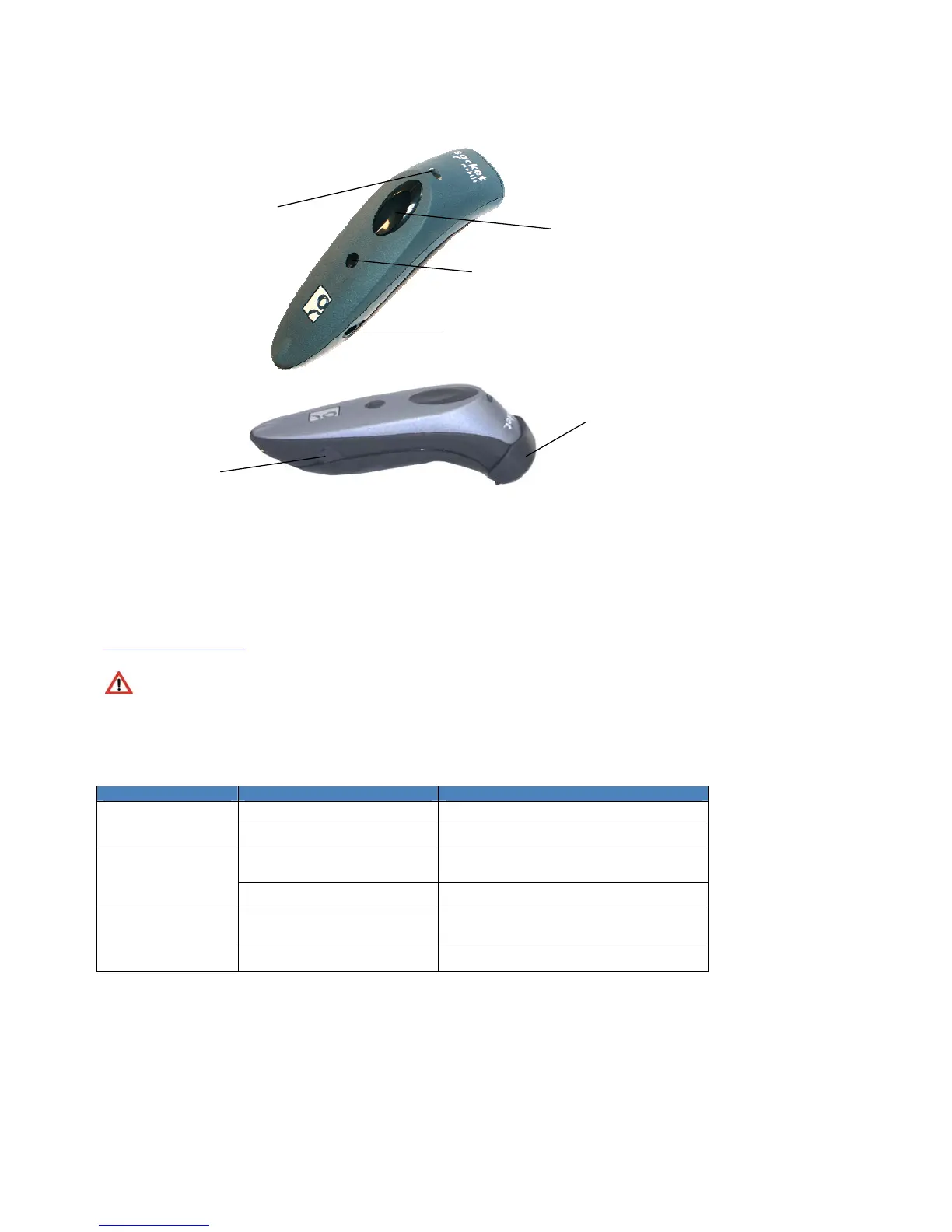

Product Diagram
Antimicrobial Protection (CHS 7DiRx only)
The CHS 7DiRx is made with antimicrobial materials to provide an extra layer of protection to the
devices against the multiplication and spread of potentially harmful bacteria and microbes.
Socket Mobile recommends using Sani-Cloth
®
Plus brand disposable cloth wipes as the standard
disinfectant wipe for the CHS 7DiRx. For more information about the wipes, please visit:
http://www.pdipdi.com
Do not use a bleach-based or Dispatch® brand cloth wipes, as they negate all antimicrobial
properties that have been added to the device.
To clean the scanner window, use an eye lens cleaner or clean, soft cloth.
Status Indicator LED
LED LED Activity Meaning
Bluetooth (Blue) 1 blink per second Bluetooth radio is on but not connected
1 blink per 3 seconds CHS connected to host device
Good Read (Green) On
Data successfully scanned and transmitted to
host device
On and connected to charger Battery full
Battery (Red) Blinking 20% or less battery capacity remaining
Off Off or Good Battery status
Trigger button
Power button
Power Connector
Status indicator LED
Power connector
(For 7Di/7DiRx remove rubber
cap to access)
Protective rubber bumper
(7Di/7DiRx only)
