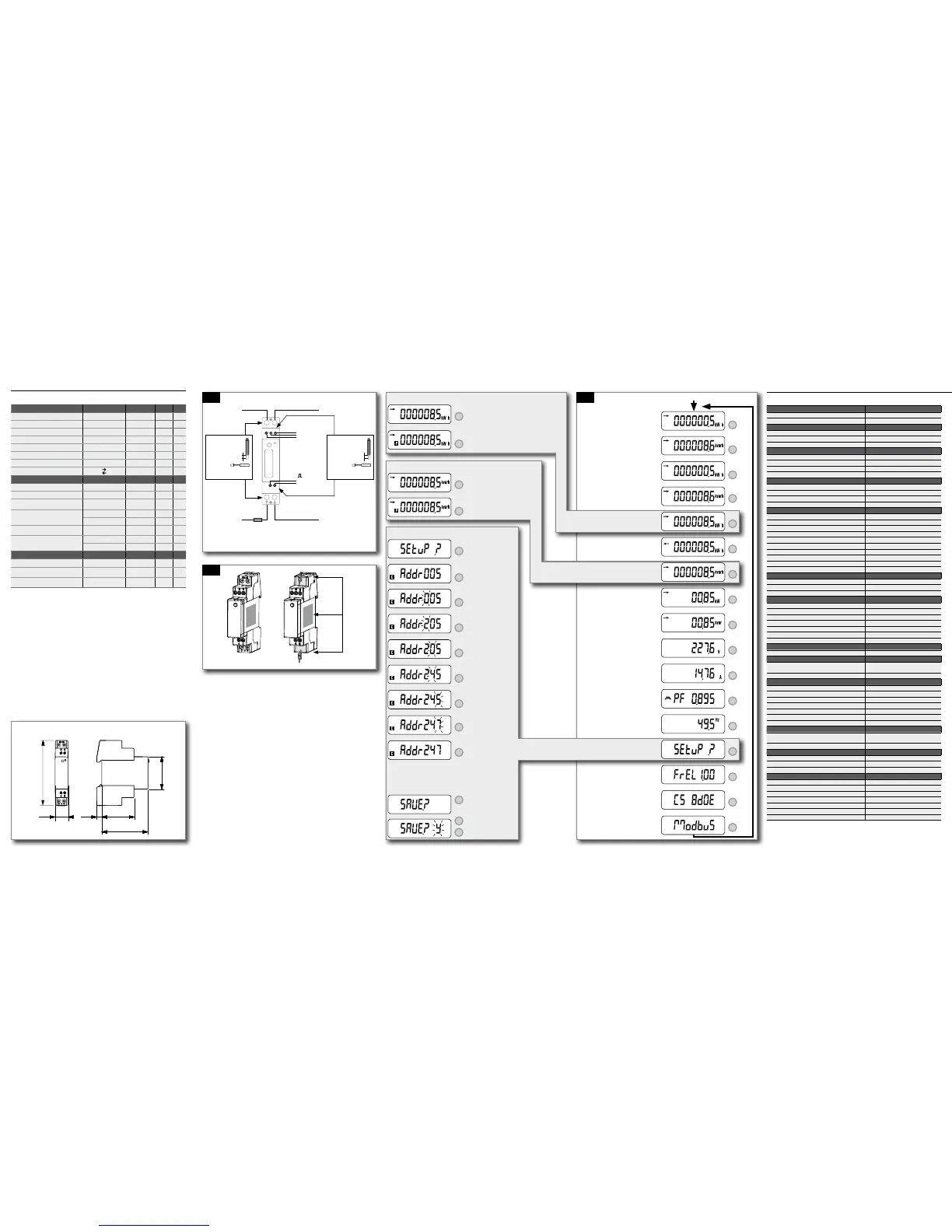

3s
t
>
3s
t
x2
t
>
3s
t
x4
t
>
3s
t
x3
t
>
3s
t
x1
t
Baudrate
Modbus Parity
All partial counters reset
t
t
>
3s
>
3s Conrm
Y=Save setting and exit
C=Continue without saving
N=Exit without saving
Modbus parameters selection
Partial Ea+ (kWh)
Partial Er+ (kVarh)
>
3s
t
x1
>
3s
t
x1
Technical characteristics
Data in compliance with EN 50470-1, EN 50470-3
General
Housing 1 module DIN 43880
Mounting DIN rail EN 60715
Operating features
Connectivity 2 wires 230V
Storage of energy values and conguration yes EEPROM
Display tariffs identier T1 and T2
Supply
Autosupplied
Operating voltage range 184 ... 276 VAC
Operating frequency range 45 ... 65 Hz
Rated power dissipation (max.) Pv 1.5VA - 1W
Overload capability
Voltage Un continuous 276 VAC
Voltage Un momentary (1 s) 300 VAC
Current Imax continuous 40 A
Current Imax momentary 30 Imax for 1/2c
Display
Display type LCD 7 digits with backlight
Active energy: 1 display, 7-digit 000000.0 ... 999999.9 kWh
Reactive energy: 1 display, 7-digit 000000.0 ... 999999.9 kvarh
Instantaneous active power: 1 display, 4-digit 00.00 ... 99.99 kW
Instantaneous reactive power: 1 display, 4-digit 00.00 ... 99.99 kvar
Intantaneous voltage: 1 display, 4-digit 000.0 ... 999.9 V
Intantaneous current: 1 display, 4-digit 00.00 ... 99.99 A
Power Factor: 1 display, 4-digit 0.001 … 1.000
Frequency: 1 display, 3-digit 45.0 … 65.0 Hz
Display period refresh 0.5 s
Measuring accuracy
Active energy class B acc. to EN 50470-3
Active energy class 1 acc. toEN62053-21
Reactive energy class 2 acc. toEN62053-23
Measuring input
Type of connection direct phase/N
Certied voltage Un 230 VAC
Current Iref 5 A
Current Imin 0.25 A
Operating range current (Ist ... Imax) 0.020 ... 40 A
Certied frequency fn 50/60Hz ±1Hz
Starting current for energy measurement (Ist) 20 mA
Optical interfaces (LED)
Meter constant 0.2 Wh/imp
S0 Output
Type Optoisolated - 27VDC 27mA acc.
toEN62053-31
Pulse weight 100Wh
Safety
Indoor meter yes
Degree of pollution 2
Operational voltage 300 VAC
AC voltage test (EN 50470-3, 7.2) 4 kV
Impulse voltage test 6 kV 1.2/50µs
Protection class (EN 50470) class II
Housing material ame resistance UL 94 class V0
Embedded communication
Modbus RTU 2400, 4800, 9600, 19200, 38400
bps
Isolation class SELV Circuit
Connection terminals
Terminal capacity current paths exible or rigid: 1.5 to 6 mm
2
Terminal capacity COM and tariff exible or rigid 0.14 to 2.5 mm
2
Nominal tightening torque 1.2 Nm
Environmental conditions
Mechanical environment M1
Electromagnetic environment E2
Operating temperature -25 ... +55 °C
Limit temperature of transportation and storage -40 ... +75 °C
Relative humidity (not condensation) ≤80 %
Vibrations ±0.075 mm
Degree protection IP51(*)/IP20
(*) For the installation in a cabinet at least with IP51 protection.
MID
safety
sealing
3
2
1
1 phase,
2 wires,
1 current
LL
NN
4 5
L L’
40A
N
230 VAC 50/60 Hz
21 3
NC
-
+
COM RS485
MODBUS
-
+
Solid / Stranded
1.5 mm
2
->
6mm
2
0.47in / 12mm
PZ2
17.70 lb.in /
2 Nm max.
Solid / Stranded
0.14 mm
2
->
2.5mm
2
0.27in / 6.9mm
PZ2
4.5 lb.in /
0.5 Nm max.
Device switch ON
Ea+ (kWh) Tariff T1
x1
t
Er+ (kVarh) Tariff T1
x1
t
Ea+ (kWh) Tariff T2
x1
t
Er+ (kVarh) Tariff T2
x1
t
Ea+ (kWh)
x1
t
Ea- (kWh)
x1
t
Er+ (kVarh)
x1
t
Active power (kW)
x1
t
Reactive power (kVar)
x1
t
System voltage (V)
x1
t
System current (I)
x1
t
System power factor (PF)
x1
t
Frequency (f)
x1
t
Modbus parameters selection
x1
t
Metrological Fw release (Fw Rel1)
x1
t
FW CRC info
x1
t
Installed communication port
x1
Measurements
The parameters are available according to the device model.
Instantaneous values
Symbol Measure unit Display Com
Phase to Neutral voltages V V
Current I A
Power factor PF
Apparent power S kVA
Active power P kW
Reactive power Q kvar
Frequency f Hz
Power direction
Recorded data
Total energy counters Ea, Er kWh, kvarh
Total apparent energy Eap kVAh
Total ind. and cap. reactive
energy
Er kvarh
T1/T2 tariff energy counters
Ea, Er kWh, kvarh
Eap kVAh
T1/T2 tariff ind. and cap. reactive
energy
Er kvarh
Resettable partial energy counters
Ea, Er kWh, kvarh
Eap kVAh
Other information
Symbol Value/status Display Com
Present tariff T T1/T2
Partial counters P
START/
STOP
S0 output status
Active/
Notactive
Dual dimensions : in/mm
0.71
18
0.24
6
1.73
44
2.52
64
3.54
90
1.77
45
