COUNTIS E43/E44 - 547981A - SOCOMEC
4. INTRODUCTION
4.1. Introducing the COUNTIS E43/E44
The COUNTIS E43/E44 are modular active and reactive electrical energy meters that displays consumed and produced energy.
They are designed for three-phase networks and can be connected using a CT 1/5 A on installations up to 12000 A.
4.2. Functions
• Measures and displays bidirectional total and partial energy
• Four tariff management : T1 / T2 / T3 / T4
• Pulse output
• Electrical parameter measurements: I, U, V, f
• Bidirectional Power, power factor
• RS 485 Modbus communication
• MID version (according to reference)
Description Reference
COUNTIS E43 4850 3065
COUNTIS E44 4850 3066

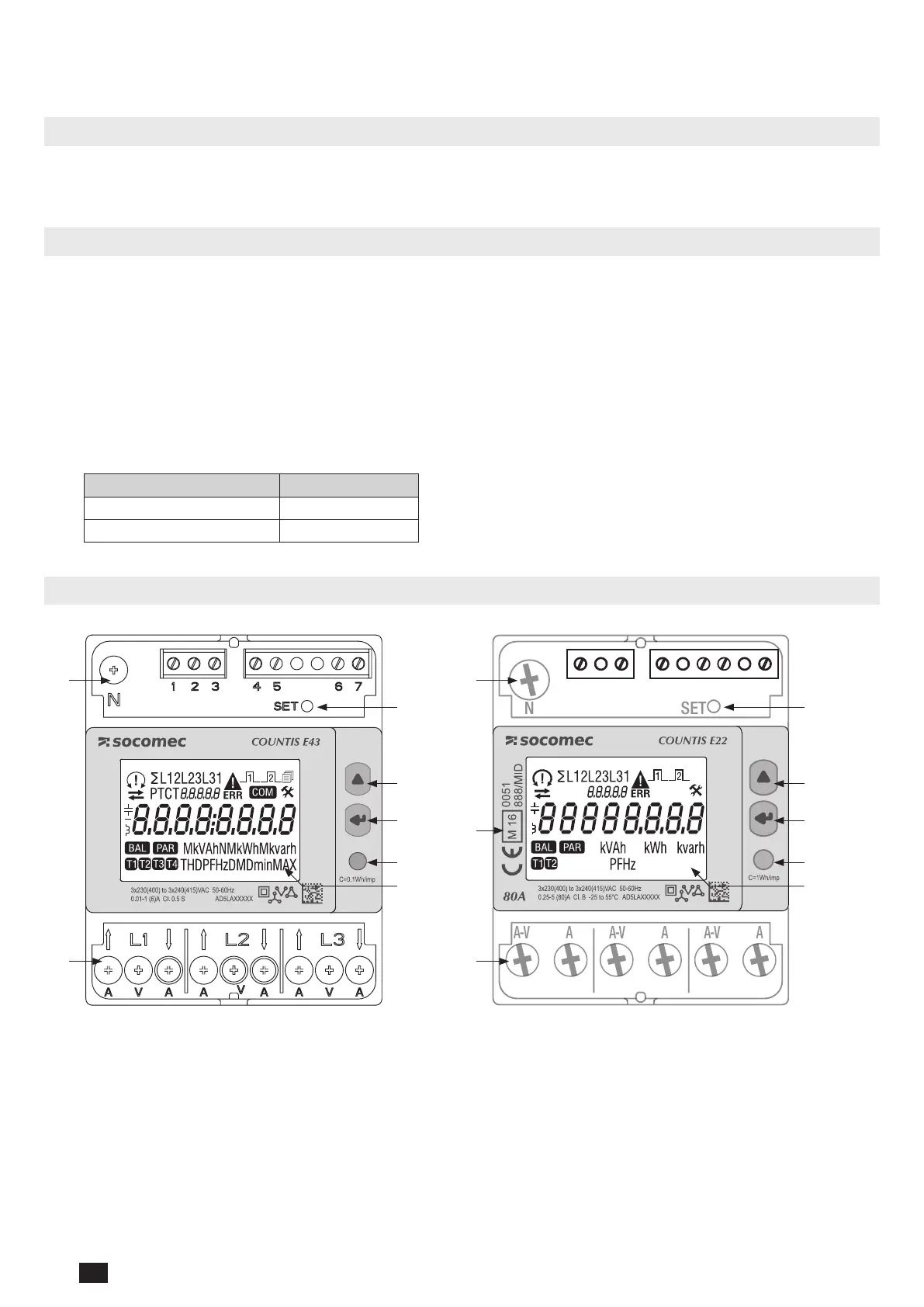

4.3. Front panel
1. SET button
2. UP button
3. ENTER key
4. Metrological LED
5. LCD display
6. Current and voltage terminals
7. Information relating to MID certication
8. Neutral connection
1. SET button
2. UP button
3. ENTER key
4. Metrological LED
5. LCD display
6. Current and voltage terminals
7. Neutral connection
SET
N
A
A-V
A
A-V
A
A-V
1 2 3 4 5 6
7
66
87
11
22
33
44
55
