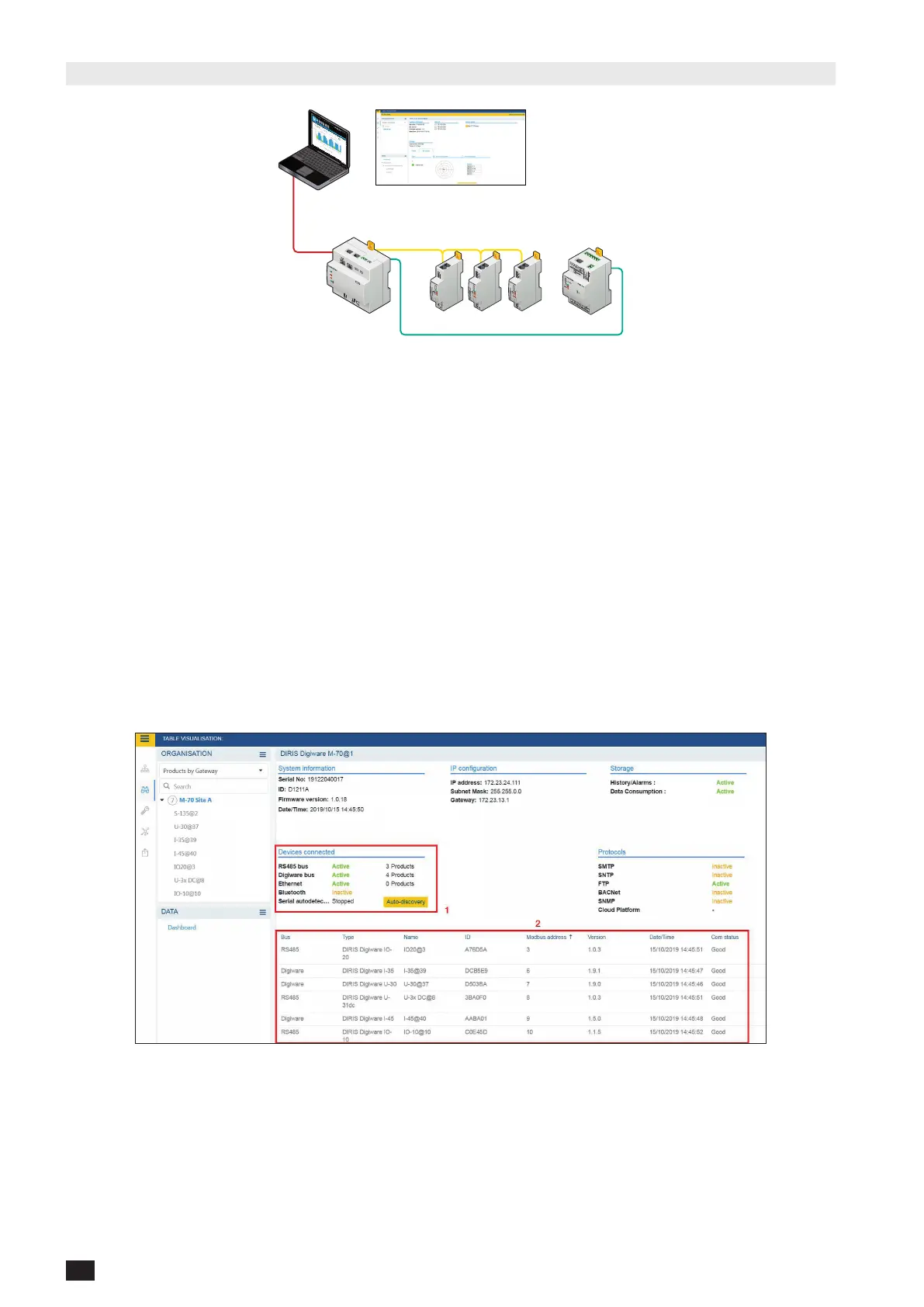

11.2. Ethernet connection mode
DIRIS Digiware
M-xx
DIRIS B
RS485
Digiware Bus
Digiware system
EasyConfig System
ETHETH
ETHDIGIWARE
BUS
24 V
20 W max
SUPPLYRS485
NC
ADDR.
ALARM
ON
COM
DIRIS M-xx
Ethernet
> Open EasyCong System.
> Log in as User or Admin. Admin default password is “Admin”.
> Click on “New conguration”, enter a name and icon.
> Click on the newly created conguration.
> Click on the “+” icon to manually add the M-50/M-70 gateway to the topology, by selecting the product,
entering the IP address, Modbus address. To be able to communicate with the M-50/M-70 gateway, your
computer must be in the same network as the M-50/M-70
> Click on the “Binocular” icon on the left side bar.
> In the “Organisation” part, select the M-70/M-50 gateway.
> In the “Data” part, click on “Dashboard” to visualise general information about the gateway.
> Click on “Auto-discovery” (1).
> Once the slave auto-discovery process is nished, slave devices will be displayed in the lower part of the
dashboard menu (2). The number of devices accessible downstream the M-50/M-70 gateway is also
displayed in the “Organisation” part, next to the M-50/M-70 gateway.
> Conguration of slave devices can be done directly by clicking on the Wrench icon on the left side bar and
selecting the right device:
