DD2 MANUAL
1
PIC 1
10 mm

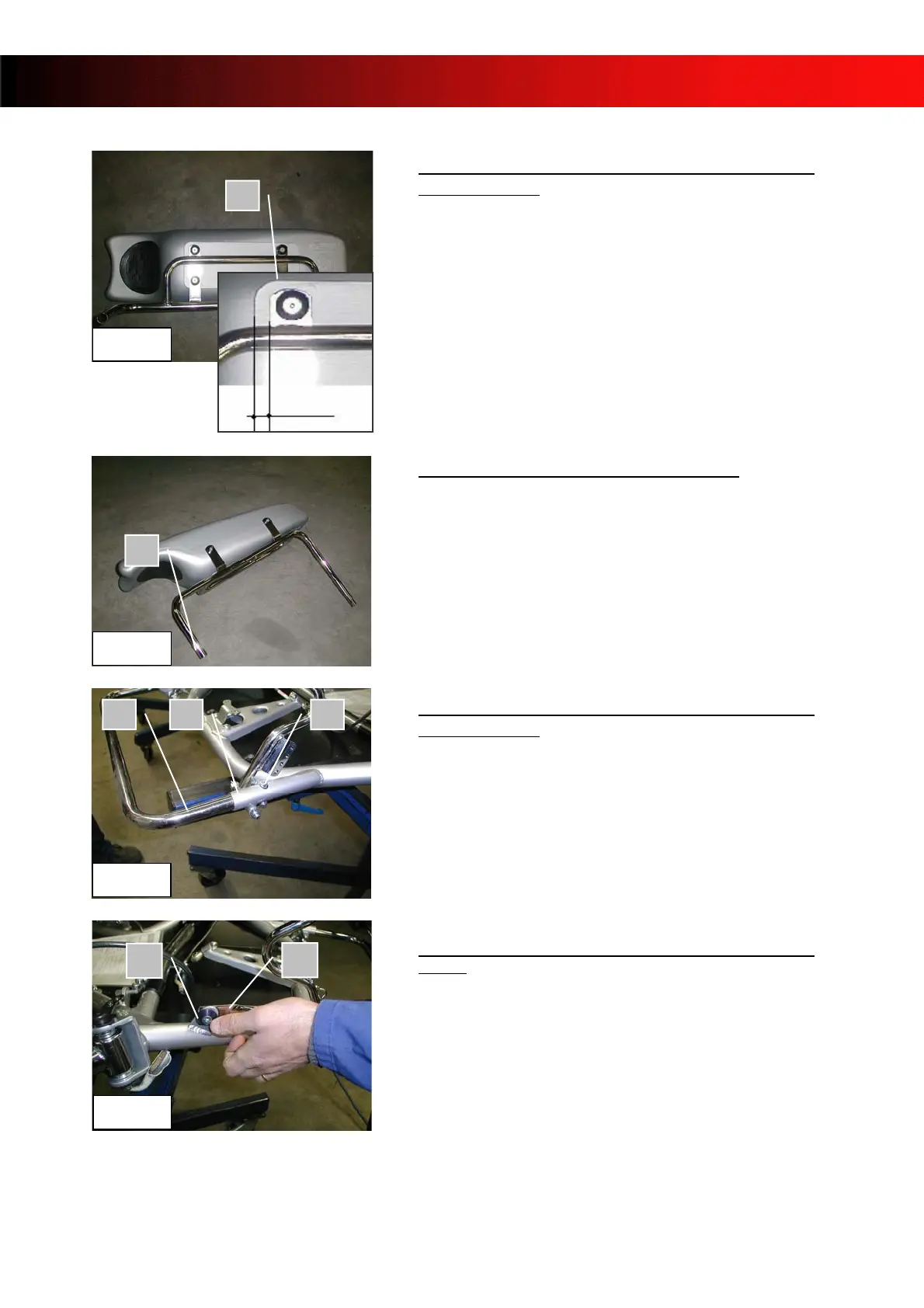

7-2 ASSEMBLY OF THE SIDE POD ON its
SUPPORT
(PIC 1)
¾ Place the side pod on its support.
¾ Adjust the distance of 10 mm (1) as shown in the
picture.
¾ Mark the first point to be drilled.
¾ Drill a hole, diameter 6.5 mm.
¾ Place screw, washers and bolt; tighten.
¾ Drill 6.5 mm holes at the 5 other fixing points.
¾ Place screw, washers and bolt; tighten.
¾ Repeat the operations for the other support.
7-3 ASSEMBLY ON THE CHASSIS
(PIC 2)
PIC 2
2
¾ Insert the flexible plastic sleeves in the frame.
¾ Insert the ends of the support in the sleeves.
¾ Tighten with screws and bolts through holes (2).
7-4 ASSEMBLY OF THE LOWER SPOILER
SUPPORT (PIC 3)
¾ Insert the support (3) in the frame (4).
¾ Insert the two CHC screws in the holes (5).
¾ Place the bolts and tighten.
PIC 3
3
4
5
7-5 ASSEMBLY OF THE UPPER SPOILER SUPPORT
(PIC 4).
¾ Place the ends of the support (6) as on the picture
(inside the frame (7).
¾ Insert the FHC screws and washers (7).
¾ Place the bolts and tighten.
PIC 4
6
7
- 13 -
